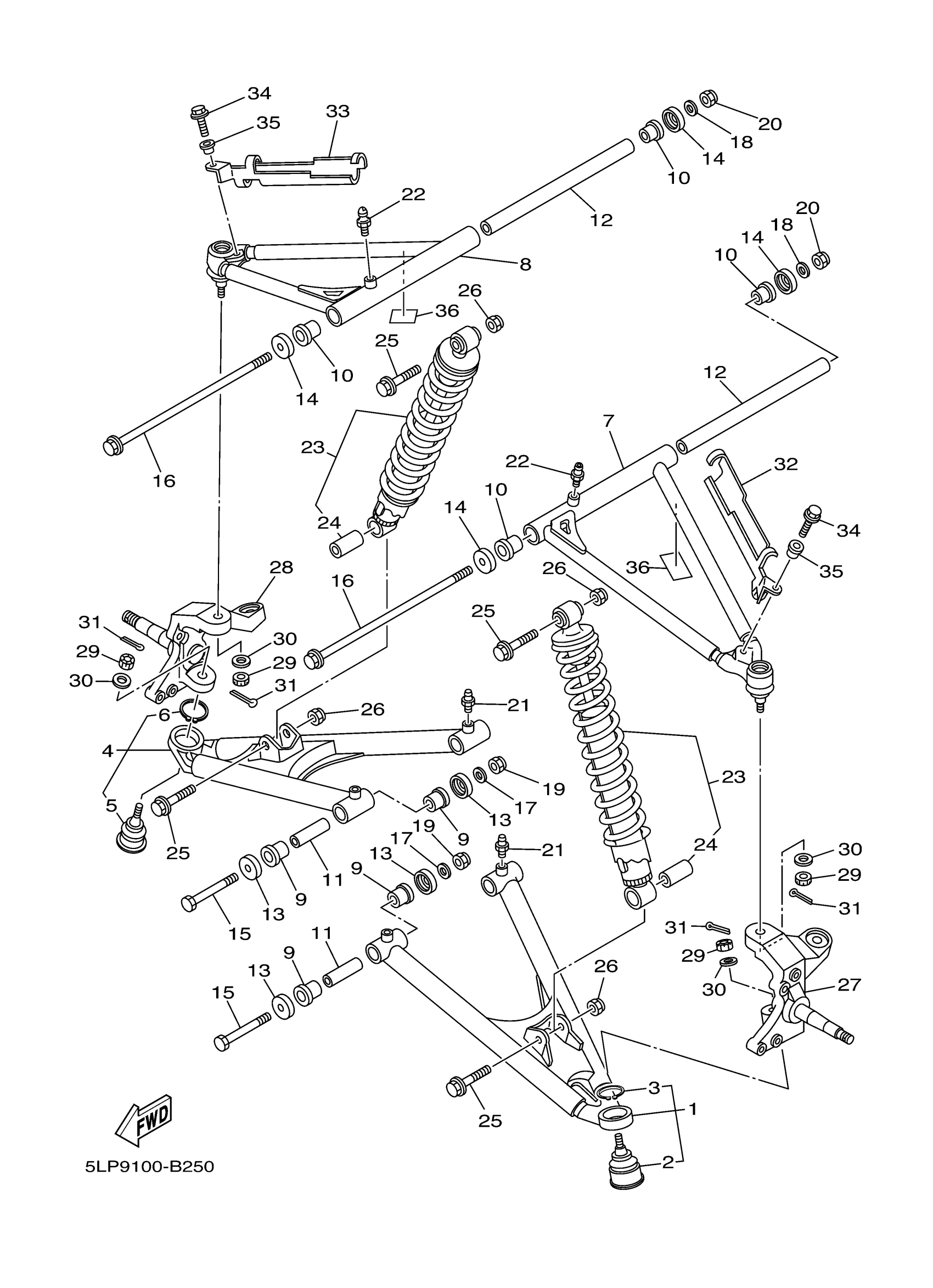

Yamaha YFM660RS (660R RAPTOR) 5LPF 2004 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT LOWER ARM COMP. (LEFT)
5LP-23570-30-00
Unavailable
4
FRONT LOWER ARM COMP. (RIGHT)
5LP-23580-30-00
Unavailable
7
FRONT UPPER ARM COMP. (LEFT)
5LP-23540-40-00
Unavailable
16
BOLT, WASHER BASED(1UF)
90105-10407-00
Unavailable
17
WASHER (7A9)
90201-100F7-00
Unavailable
18
WASHER (7A9)
90201-100F7-00
Unavailable
19
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
20
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
SHOCK ABSORBER ASSY
5LP-23350-01-00
Unavailable
23
SHOCK ABSORBER ASSY
5LP-23350-41-00
Unavailable
24
BUSH, SUSPENSION
3GG-23372-00-00
Unavailable
25
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
26
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
27
STEERING KNUCKLE ASSY (LEFT)
5LP-23501-00-00
Unavailable
28
STEERING KNUCKLE ASSY (RIGHT)
5LP-23502-00-00
Unavailable
29
NUT, CASTLE
90171-10001-00
Unavailable
30
WASHER (25G)
90209-10229-00
Unavailable
31
PIN, COTTER
91490-20025-00
Unavailable
32
HOLDER, BRAKE HOSE 1
5LP-25875-00-00
Unavailable
33
HOLDER, BRAKE HOSE 2
5LP-25876-00-00
Unavailable
34
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
35
C0LLAR
90387-062M9-00
Unavailable
36
SEAL 1
3SP-21732-00-00
Unavailable
