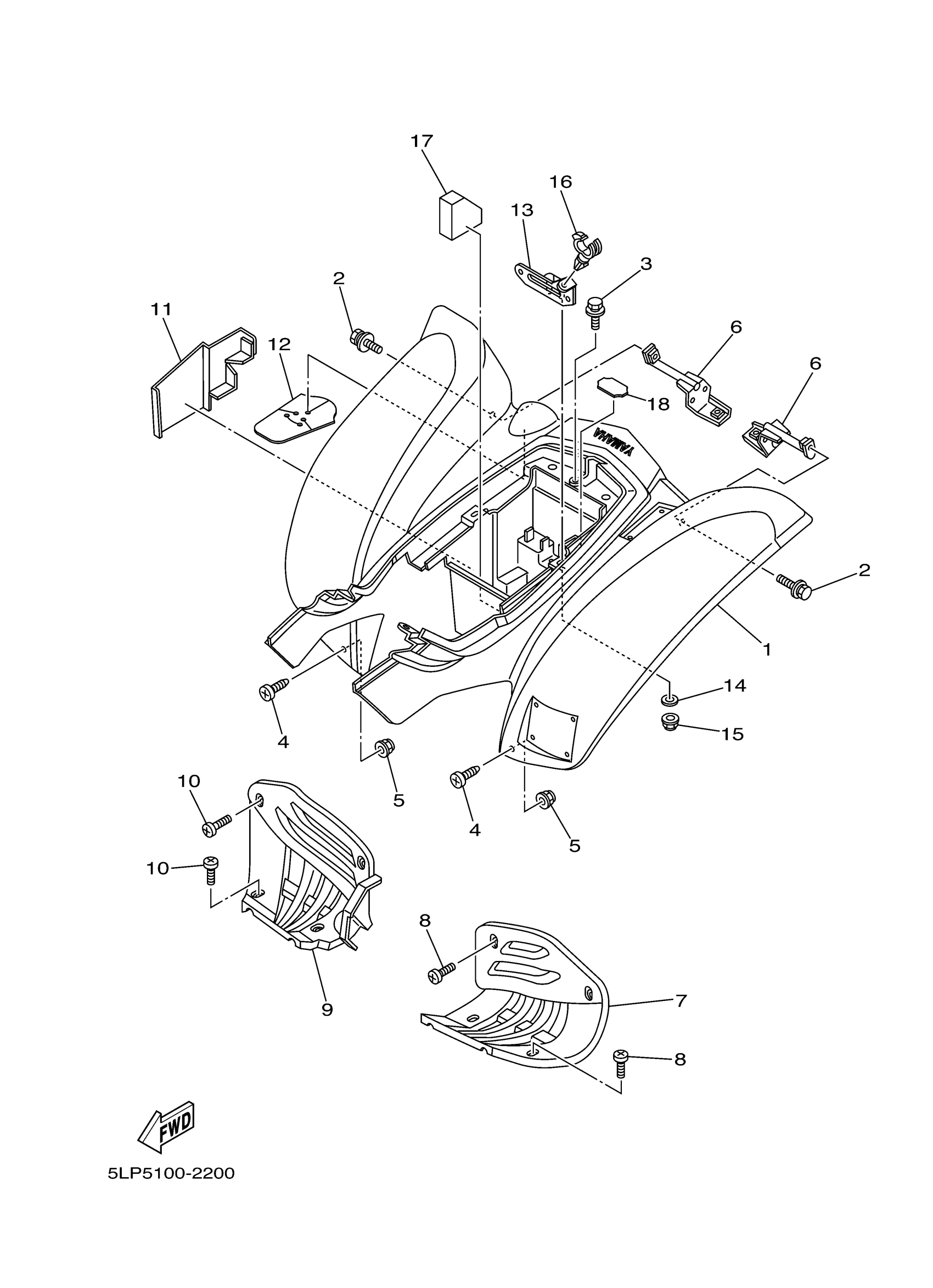

Yamaha YFM660RR (RAPTOR 660R) 5LP9 2003 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

5LP-W2161-00-00

Unavailable

1

REAR FENDER COMP.

5LP-W2161-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

4

SCREW(3JM)

90149-06306-00

$8.49

5

NUT,SELF-LOCKING

95607-06200-00

$12.49

6

STAY, FENDER 1

5LP-21613-10-00

Unavailable

7

FLAP

5LP-21621-00-00

$48.99

8

SCREW, BINDING (10V)

90154-05013-00

$5.60

9

FLAP

5LP-21691-00-00

$63.99

10

SCREW, BINDING (10V)

90154-05013-00

$5.60

11

COVER, REAR FENDER 1

5LP-2163A-00-00

Unavailable

12

COVER, REAR FENDER 2

5LP-2163E-00-00

Unavailable

13

BRACKET, REAR STAY

5LP-21688-00-00

Unavailable

14

WASHER, PLATE

90201-06380-00

$0.60

15

NUT,SELF-LOCKING

95607-06200-00

$12.49

16

CLAMP(4AP)

90464-20181-00

Unavailable

17

STOPPER, MAIN STAND

5LP-27114-00-00

Unavailable

18

DAMPER 2

5LP-21639-00-00

Unavailable
