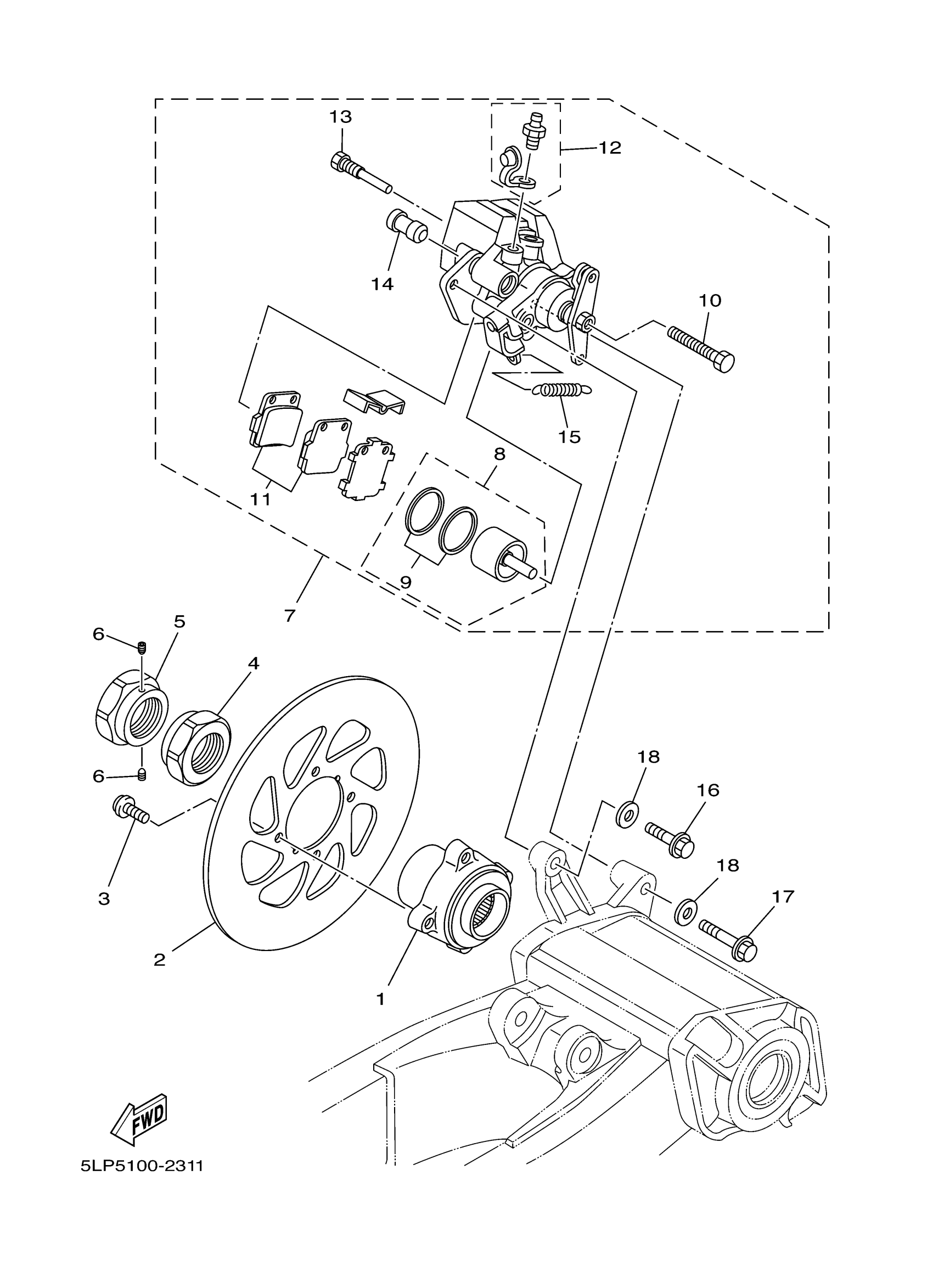

Yamaha YFM660RR (RAPTOR 660R) 5LP9 2003 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

5LP-25712-10-00

Unavailable

2

DISC, REAR BRAKE 2

5FK-2582W-00-00

$147.99

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

4

Nut

90170-33008-00

Unavailable

5

NUT

90170-33009-00

$58.99

6

BOLT, SET

90113-05041-00

$8.49

7

CALIPER ASSY, REAR 2

5LP-2580W-10-00

Unavailable

8

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

9

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

10

ADJUSTBOLT

1UY-25972-51-00

$13.49

11

BRAKE PAD KIT 2

5LP-W0046-51-00

$59.99

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

PIN, PAD

1UY-25924-51-00

Unavailable

14

BOOT, CALIPER

1UY-25917-51-00

$6.99

15

SPRING, RETURN

1UY-25977-51-00

$7.99

16

BOLT, WASHER BASED(1UY)

90105-08440-00

Unavailable

17

BOLT, FLANGE

95817-08035-00

Unavailable

18

WASHER, PLATE

90201-08060-00

Unavailable
