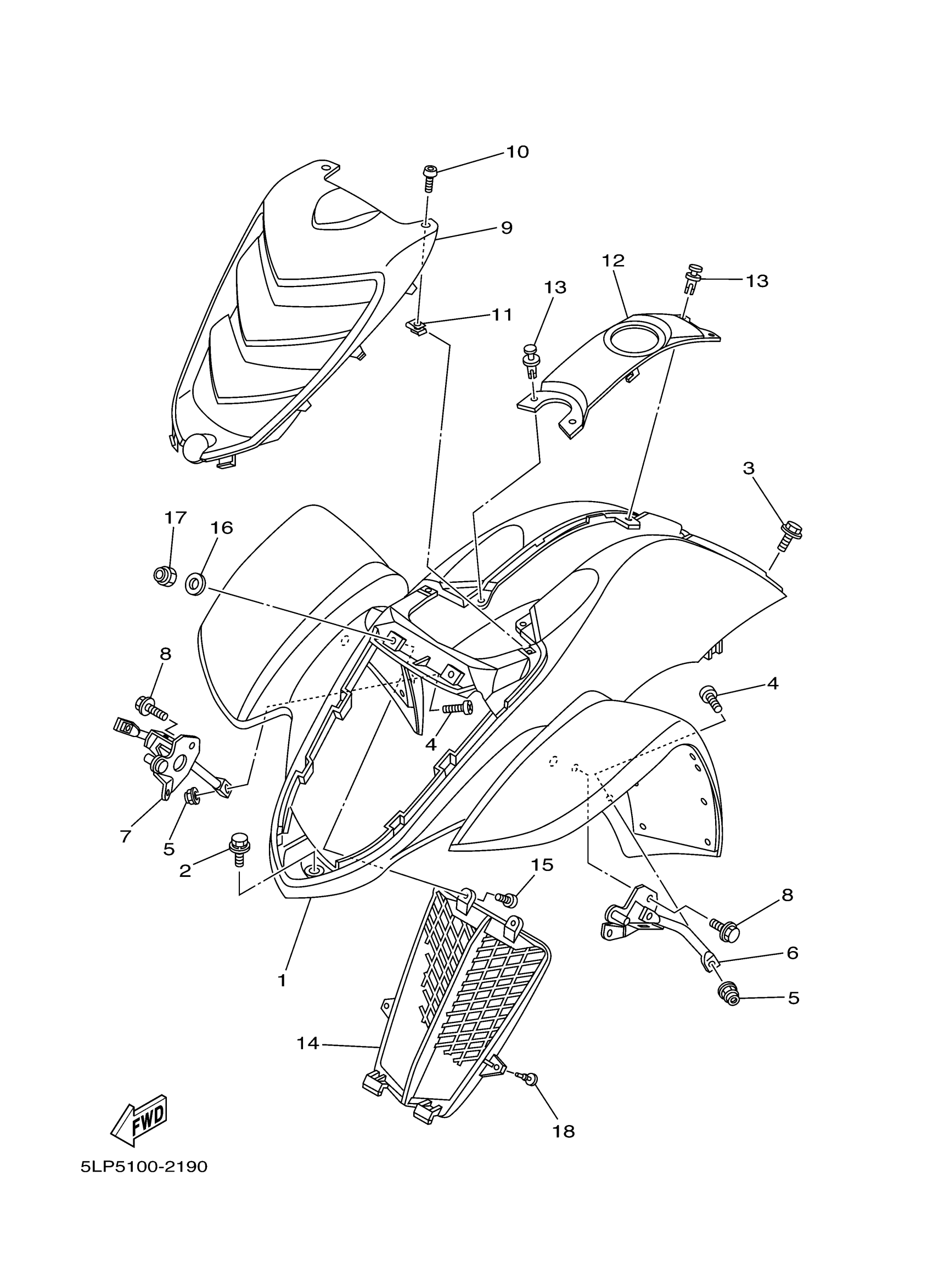

Yamaha YFM660RR (RAPTOR 660R) 5LP9 2003 FRONT FENDER Diagram
#
Description
Price
1
FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)
5LP-W2151-00-00
Unavailable
1
FRONT FENDER COMP. (RADICAL WHITE)
5LP-W2151-10-00
Unavailable
6
STAY, FENDER 1
5LP-21513-00-00
Unavailable
7
STAY, FENDER 2
5LP-21514-00-00
Unavailable
9
FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)
5LP-21556-00-00
Unavailable
9
FENDER, FRONT 2 (YAMAHA BLACK)
5LP-21556-10-00
Unavailable
12
COVER, TOP (DEEP PURPLISH BLUE SOLID E)
5LP-2171A-00-00
Unavailable
12
COVER, TOP (RADICAL WHITE)
5LP-2171A-10-00
Unavailable
13
RIVET
90269-06002-00
Unavailable
14
COVER, RADIATOR
5LP-12467-10-00
Unavailable
15
SCREW, BINDING (8R1)
90154-05011-00
Unavailable
16
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
17
NUT, U
95617-05100-00
Unavailable
18
GROMMET (1J7)
90480-05201-00
Unavailable
