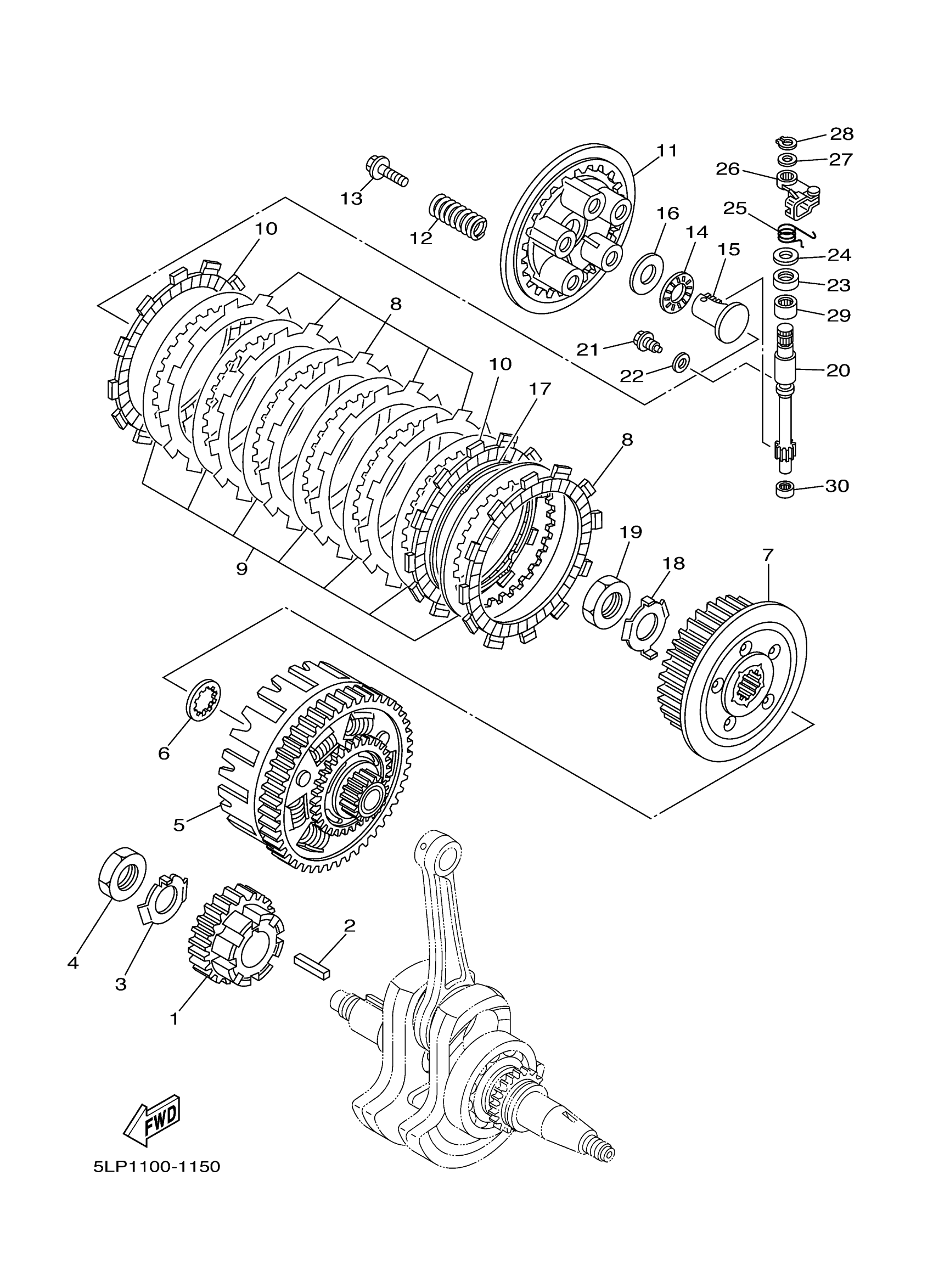

Yamaha YFM660RR (RAPTOR 660R) 5LP9 2003 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5LP-16111-10-00

Unavailable

2

KEY, STRAIGHT (4X7)

90282-07042-00

$9.49

3

WASHER, LOCK (5Y1)

90215-20197-00

$9.49

4

NUT (4X7)

90170-20274-00

$16.99

5

PRIMARY DRIVEN GEAR COMP.

3AJ-16150-00-00

$521.99

6

PLATE, THRUST 1

2JN-16154-00-00

$20.99

7

BOSS, CLUTCH

4PT-16371-00-00

Unavailable

8

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

9

PLATE, CLUTCH 2

360-16325-10-00

$35.99

10

PLATE, FRICTION

5Y1-16331-01-00

$29.99

11

PLATE, PRESSURE 1

3YF-16351-00-00

$68.99

12

SPRING,COMPRESSION 2561633310

90501-23142-00

$8.49

13

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

14

BEARING, THRUST (713)

93340-21505-00

$18.99

15

. ROD, PUSH 1

4H7-16356-01-00

Unavailable

16

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable

17

SPRING, CLUTCH BOSS

5Y1-16383-00-00

Unavailable

18

WASHER, LOCK (34L)

90215-20231-00

Unavailable

19

NUT (34L)

90170-20327-00

Unavailable

20

AXLE, PUSH LEVER

3JD-16382-00-00

Unavailable

21

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

23

OIL SEAL (3X3)

93102-15212-00

Unavailable

24

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

25

SPRING, TORSION

90508-20016-00

Unavailable

26

PUSH LEVER ASSY

3LD-16340-01-00

Unavailable

27

WASHER, PLAIN(735)

90201-10119-00

Unavailable

28

CIRCLIP(10W)

99009-10400-00

Unavailable

29

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

30

BEARING

93315-10838-00

Unavailable
