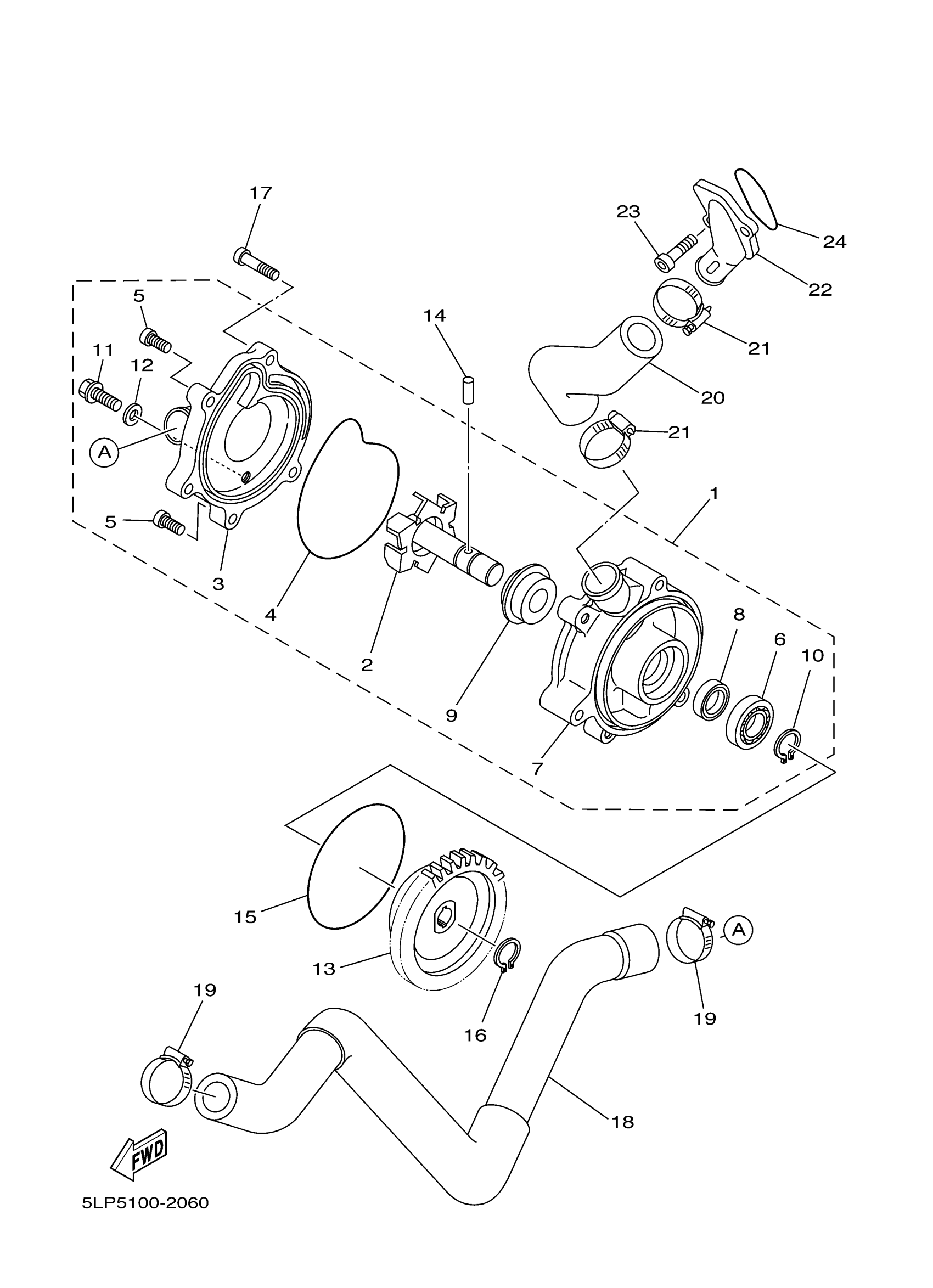

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

5LP-12420-00-00

Unavailable

2

IMPELLER SHAFT ASSY

3YF-12450-00-00

$75.99

3

.. COVER, HOUSING

5LP-12422-00-00

Unavailable

4

O-RING

1WG-12439-00-00

$27.99

5

BOLT,SOCKET

91317-06020-00

Unavailable

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

7

.. HOUSING, WATER PUMP

5LP-12421-00-00

Unavailable

8

OIL SEAL

93101-12173-00

$13.49

9

SEAL, MECHANICAL

11H-12438-10-00

$62.99

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

12

GASKET 256113960000

90430-06014-00

Unavailable

13

GEAR, IMPELLER SHAFT

3YF-12459-00-00

Unavailable

14

PIN, DOWEL(1HX)

93603-16219-00

$8.49

15

O-RING (2H7)

93210-77363-00

$12.49

16

CIRCLIP(10Y)

99009-12400-00

$3.59

17

BOLT,SOCKET

91317-06045-00

Unavailable

18

HOSE 1

5LP-12576-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-32015-00

Unavailable

20

HOSE 2

5LP-12577-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-32015-00

Unavailable

22

JOINT 1

3YF-12469-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

O-RING

93210-33006-00

Unavailable
