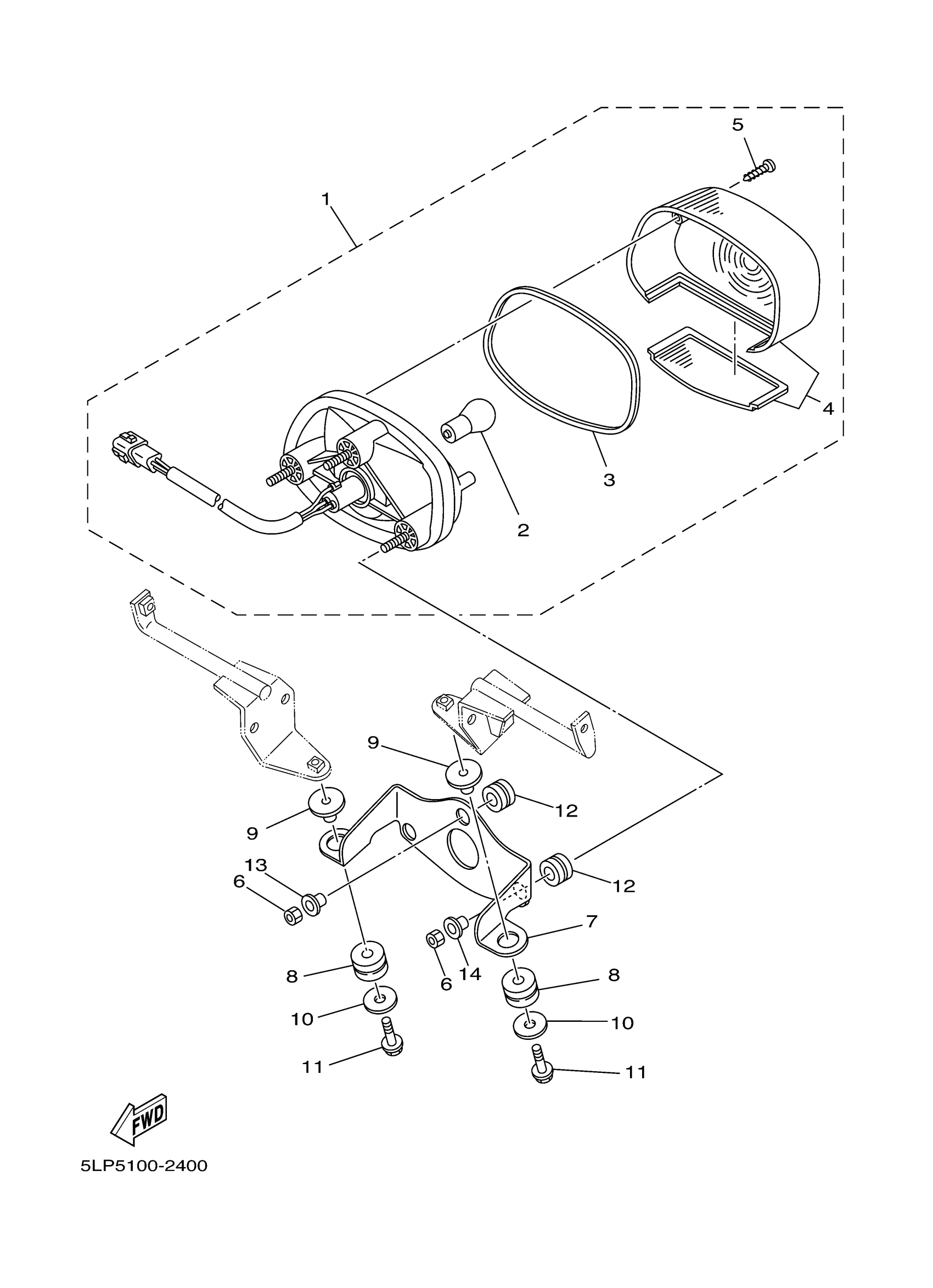

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5LP-84700-11-00

$83.85

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.18

4

LENS, TAILLIGHT

4TR-84733-00-00

$18.52

5

YBS83-420 SCREW,PANH,TAPPING

97780-40120-00

$2.64

6

NUT(6TA)

95317-06600-00

$2.52

7

BRACKET, TAILLIGHT

5LP-84702-30-00

Unavailable

8

GROMMET(3RB)

90480-15528-00

$6.22

9

COLLAR (17W)

90387-075H4-00

$6.02

10

WASHER PLATE 248217570000

90201-06074-00

$5.86

11

BOLT, FLANGE

95817-06030-00

$3.65

12

GROMET (3X3)

90480-14229-00

$5.75

13

COLLAR

90387-075U2-00

Unavailable

14

COLLAR 437216330000

90387-07391-00

Unavailable
