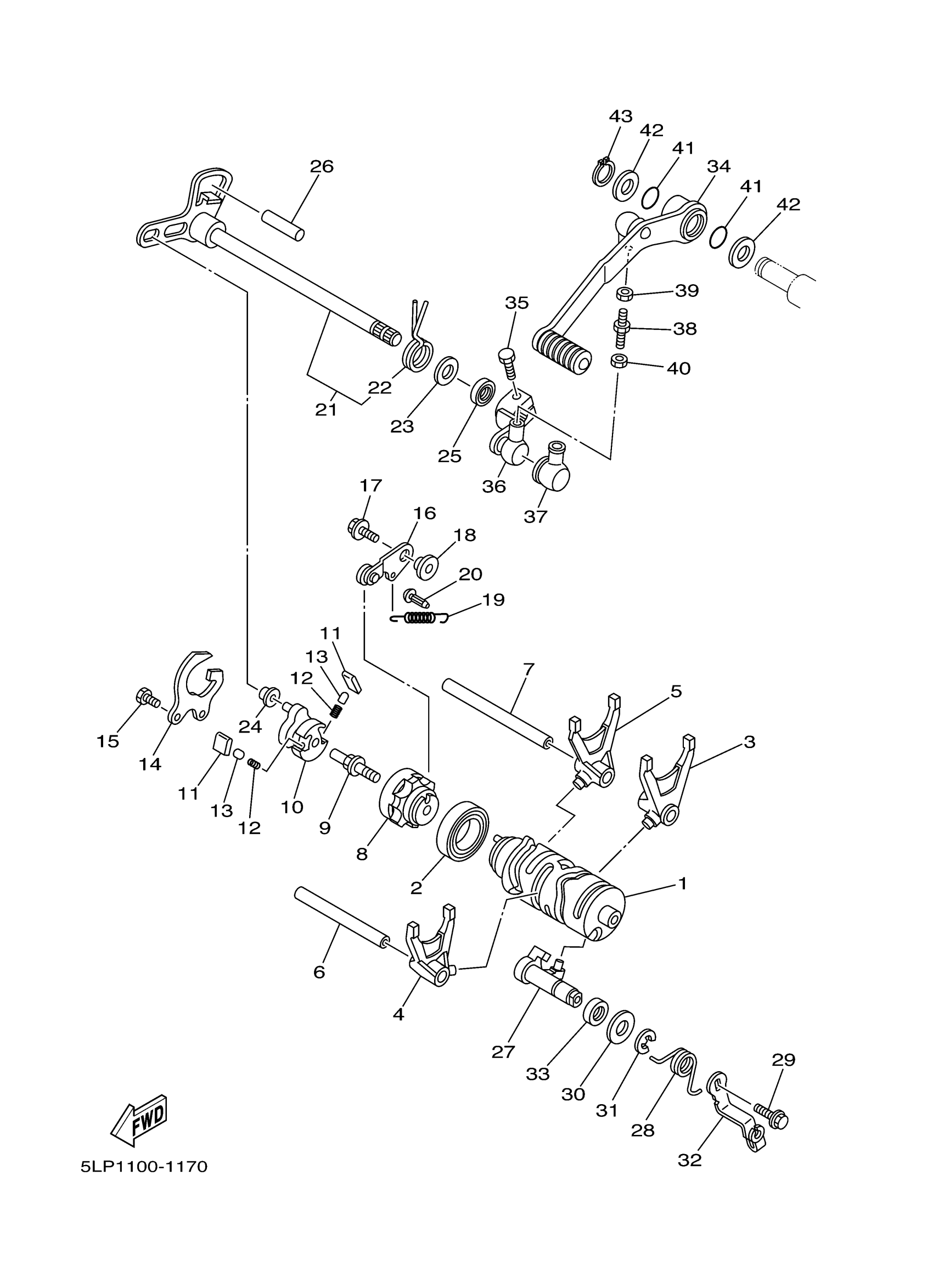

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 SHIFT CAM FORK Diagram

SHIFT CAM

5LP-18541-00-00

$172.99

BEARING (5K5)

93306-90501-00

$41.99

FORK, SHIFT 1

5LP-18511-00-00

Unavailable

FORK, SHIFT 2

5LP-18512-10-00

$99.99

FORK, SHIFT 3

5LP-18513-00-00

Unavailable

BAR, SHIFT FORK GUIDE 1

3GX-18531-00-00

Unavailable

BAR, SHIFT FORK GUIDE 2

4TR-18535-00-00

Unavailable

SEGMENT

4EW-18185-00-00

$109.99

PIN, SHIFT

3XJ-18173-10-00

$19.99

LEVER, SHIFT 2

5LP-18122-01-00

$85.99

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

PIN, PAWL

3XJ-18184-00-00

$15.49

GUIDE, SHIFT

5LP-18172-00-00

Unavailable

BOLT

90101-06664-00

Unavailable

STOPPER LEVER ASSY

5LP-18140-00-00

Unavailable

SCREW, WITH WASHER (34K)

90159-06078-00

Unavailable

SPACER

4NX-18175-00-00

Unavailable

SPRING, TENSION

90506-14005-00

Unavailable

HOOK, SPRING

132-16346-00-00

Unavailable

SHIFT SHAFT ASSY

5LP-18101-00-00

Unavailable

SPRING, TORSION

90508-35007-00

Unavailable

WASHER PLATE 102181410000

90201-12474-00

Unavailable

ROLLER, SHIFT LEVER

3XJ-18178-00-00

Unavailable

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

PIN, DOWEL

93608-33046-00

Unavailable

SHIFTER BRKT. ASSY

5LP-18380-00-00

Unavailable

SPRING

5LP-18337-01-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

WASHER, PLATE (353)

90201-12575-00

Unavailable

CIRCLIP

99006-10600-00

Unavailable

BRACKET, SHIFTER

5LP-18431-00-00

Unavailable

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

SHIFT PEDAL ASSY

5LP-18110-00-00

Unavailable

BOLT, HEXAGON

97017-06020-00

Unavailable

ARM, SHIFT

5LP-18112-00-00

Unavailable

COVER, DUST

2H9-18154-00-00

Unavailable

ROD, SHIFT

2KW-18115-00-00

Unavailable

NUT (2H9)

90170-06228-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

O-RING (22U)

93210-15566-00

Unavailable

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

CIRCLIP (122)

93430-12008-00

Unavailable
