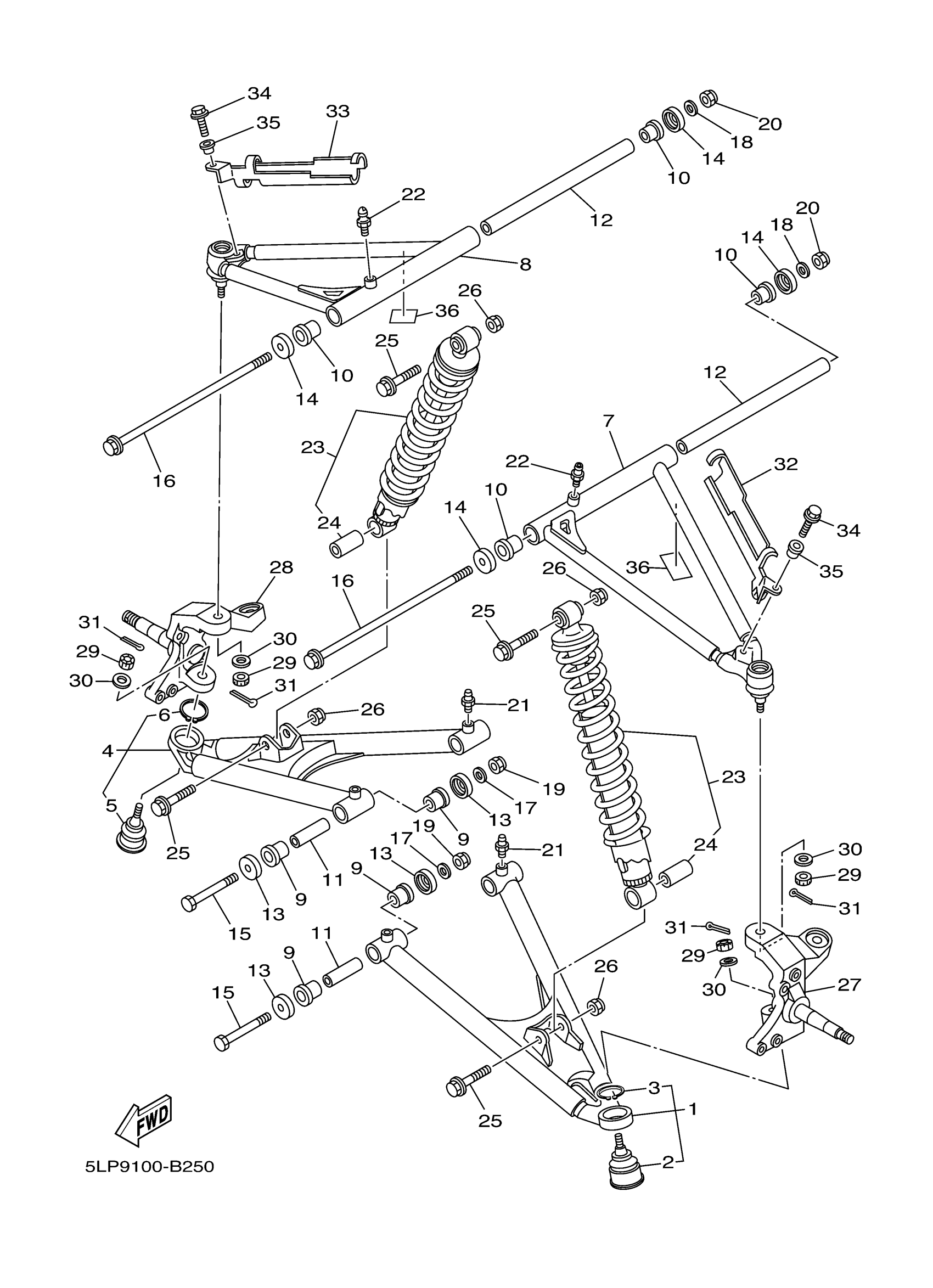

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

5LP-23570-10-00

Unavailable

2

BALL JOINT

5LP-23579-00-00

$65.99

3

CIRCLIP(4A6)

99009-30400-00

$8.49

4

FRONT LOWER ARM COMP. (RIGHT)

5LP-23580-10-00

Unavailable

5

BALL JOINT

5LP-23579-00-00

$65.99

6

CIRCLIP(4A6)

99009-30400-00

$8.49

7

FRONT UPPER ARM COMP. (LEFT)

5LP-23540-20-00

Unavailable

8

FRONT UPPER ARM COMP. (RIGHT)

5LP-23550-20-00

Unavailable

9

BUSH, SOLID(3GG)

90381-15088-00

$21.99

10

BUSH, SOLID(3GG)

90381-15088-00

$21.99

11

COLLAR(1UY)

90387-101R3-00

$19.99

12

COLLAR

90387-10002-00

$48.99

13

COVER, THRUST 1

1UY-23517-01-00

$6.99

14

COVER, THRUST 1

1UY-23517-01-00

$6.99

15

BOLT, WASHER BASED

90105-10034-00

$12.49

16

BOLT, WASHER BASED(1UF)

90105-10407-00

Unavailable

17

WASHER (7A9)

90201-100F7-00

Unavailable

18

WASHER (7A9)

90201-100F7-00

Unavailable

19

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

20

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

SHOCK ABSORBER ASSY

5LP-23350-21-00

Unavailable

24

BUSH, SUSPENSION

3GG-23372-00-00

Unavailable

25

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

26

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

27

STEERING KNUCKLE ASSY (LEFT)

5LP-23501-00-00

Unavailable

28

STEERING KNUCKLE ASSY (RIGHT)

5LP-23502-00-00

Unavailable

29

NUT, CASTLE

90171-10001-00

Unavailable

30

WASHER (25G)

90209-10229-00

Unavailable

31

PIN, COTTER

91490-20025-00

Unavailable

32

HOLDER, BRAKE HOSE 1

5LP-25875-00-00

Unavailable

33

HOLDER, BRAKE HOSE 2

5LP-25876-00-00

Unavailable

34

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

35

C0LLAR

90387-062M9-00

Unavailable

36

SEAL 1

3SP-21732-00-00

Unavailable
