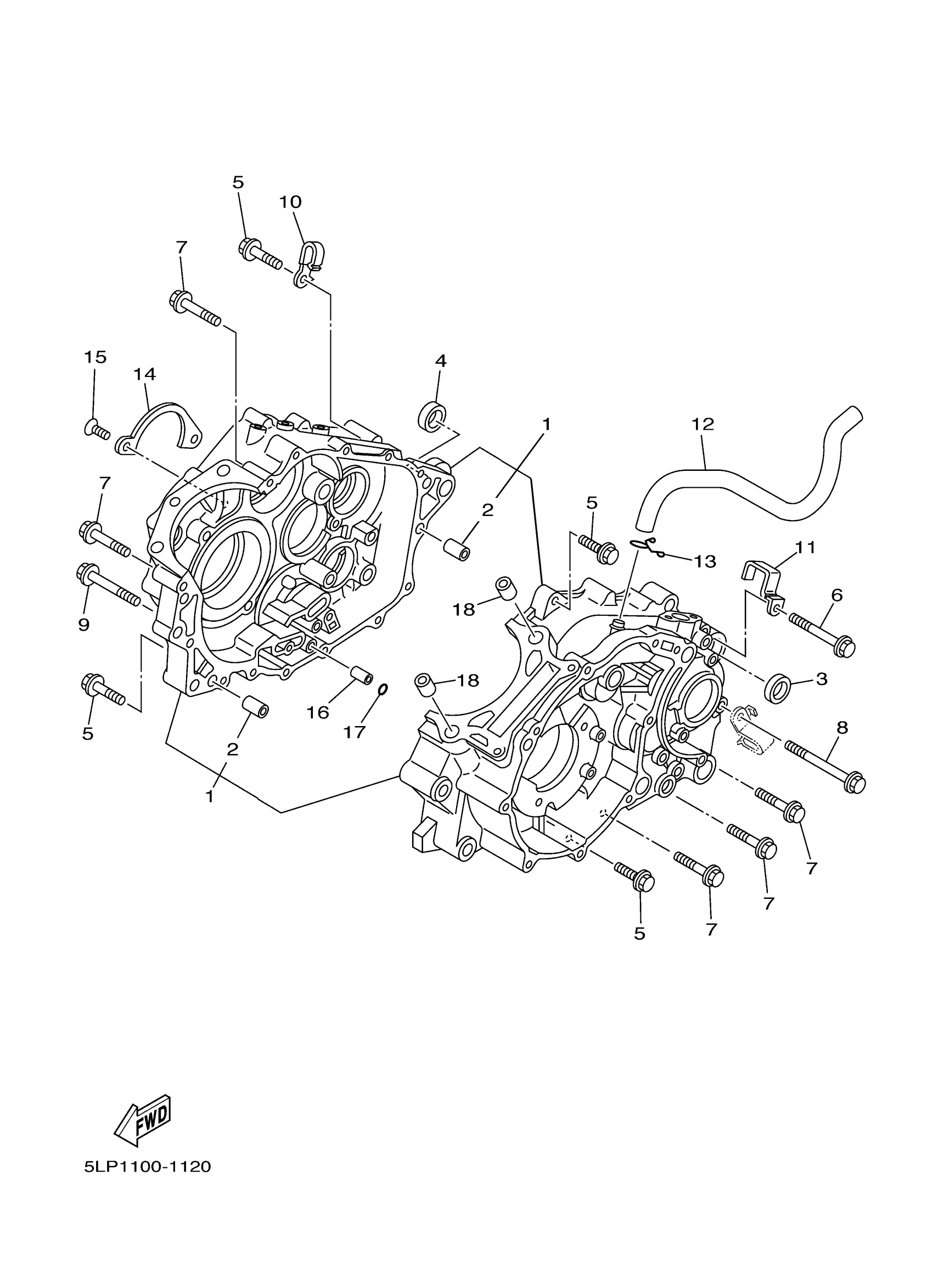

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5LP-15100-02-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COLLAR

90387-17009-00

$15.99

4

COLLAR

90387-17009-00

$15.99

5

BOLT, SMALL FLANGE

95027-06030-00

$3.98

6

BOLT, SMALL FLANGE

95027-06065-00

$3.28

7

BOLT, SMALL FLANGE

95027-06045-00

$3.28

8

BOLT, SMALL FLANGE

95027-06080-00

$2.39

9

BOLT, SMALL FLANGE

95027-06060-00

$2.87

10

CLAMP(4MX)

90465-06376-00

$9.49

11

CLAMP 2

5LP-15484-00-00

$7.99

12

PIPE, BREATHER 1

5LP-11166-00-00

Unavailable

13

CLIP (371)

90467-14015-00

$8.49

14

PLATE, BEARING COVER

3Y1-15383-00-00

Unavailable

15

SCREW, FLAT

98707-06012-00

$8.49

16

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

18

PIN, DOWEL

99530-14016-00

Unavailable
