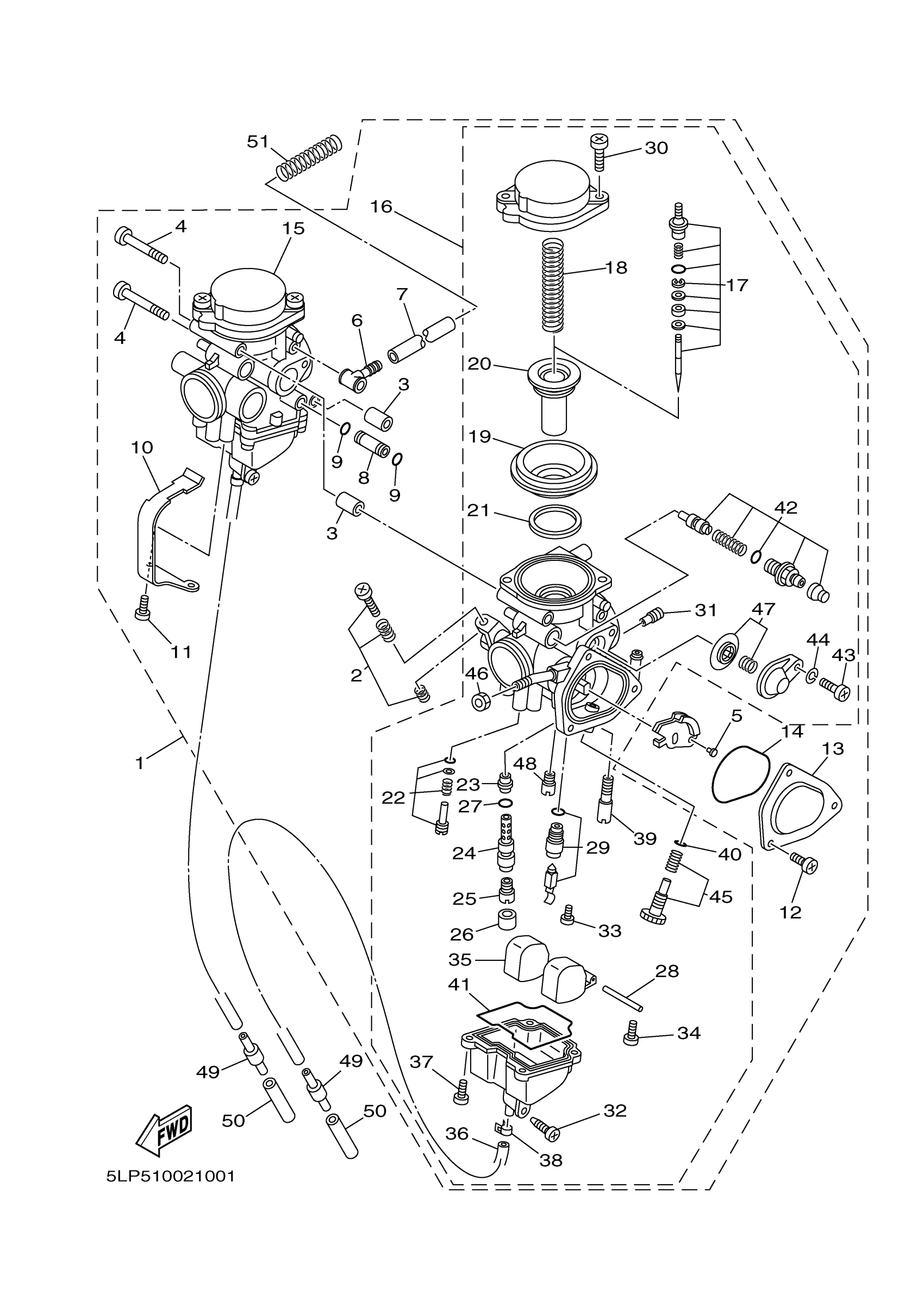

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 CARBURETOR Diagram
#
1
CARBURETOR ASSY
5LP-14900-20-00
Unavailable
2
STOP SCREW SET
4KM-1490K-00-00
Unavailable
3
.. PIPE
5LP-14996-00-00
Unavailable
4
.. SCREW
3LN-14216-00-00
Unavailable
7
.. PIPE
5LP-14349-00-00
Unavailable
10
PLATE
5LP-14945-00-00
Unavailable
11
SCREW
3DM-14216-00-00
Unavailable
12
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
15
.. CARBURETOR ASSY 2
5LP-14902-00-00
Unavailable
16
.. CARBURETOR ASSY 1
5LP-14901-00-00
Unavailable
17
NEEDLE SET
5LP-1490J-00-00
Unavailable
18
SPRING, DIAPHRAGM
4KM-14933-00-00
Unavailable
19
DIAPHRAGM ASSY
5GH-14940-10-00
Unavailable
20
VALVE, THROTTLE 1
5LP-14112-00-00
Unavailable
21
.... RING
5LP-14918-00-00
Unavailable
22
PILOT SCREW SET
5LP-14105-00-00
Unavailable
22
PILOT SCREW SET
5LP-14105-10-00
Unavailable
23
.... NOZZLE, MAIN
5DM-14141-46-00
Unavailable
24
.... HOLDER
5GH-14261-10-00
Unavailable
25
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
25
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
26
RING
5GH-14918-00-00
Unavailable
27
O-RING
583-14561-00-00
Unavailable
28
PIN, FLOAT
127-14186-00-00
Unavailable
29
NEEDLE VALVE SET
5LP-14107-20-00
Unavailable
30
SCREW
4KM-14216-00-00
Unavailable
31
JET, MAIN (# 80)
1HX-14231-16-00
Unavailable
31
.... JET, MAIN (#150)
1HX-14231-30-00
Unavailable
32
PLUG, DRAIN
12R-14191-00-00
Unavailable
33
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
34
SCREW
1FN-14565-00-00
Unavailable
35
FLOAT
5DM-14985-00-00
Unavailable
36
PIPE
4KB-14193-20-00
Unavailable
37
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
38
CLIP
90467-06194-00
Unavailable
39
JET, PILOT (# 22.5)
4KM-14142-22-00
Unavailable
40
. O-RING
6K8-14562-00-00
Unavailable
41
O-RING
5DM-14561-00-00
Unavailable
42
STARTER SET
5GH-1410A-00-00
Unavailable
43
SCREW, PAN HEAD(N15)
98507-04014-00
Unavailable
44
WASHER(6TA)
92907-04100-00
Unavailable
45
.... THROTTLE SCREW SET
5LP-14103-00-00
Unavailable
46
NUT, CABLE ADJUSTING
522-14161-00-00
Unavailable
47
DIAPHRAGM SET 5
5EL-1490H-00-00
Unavailable
48
JET, MAIN (# 95)
3G2-14231-19-00
Unavailable
49
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
50
TUBE, FLEXIBLE VINYL
91A20-07004-00
Unavailable
51
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
