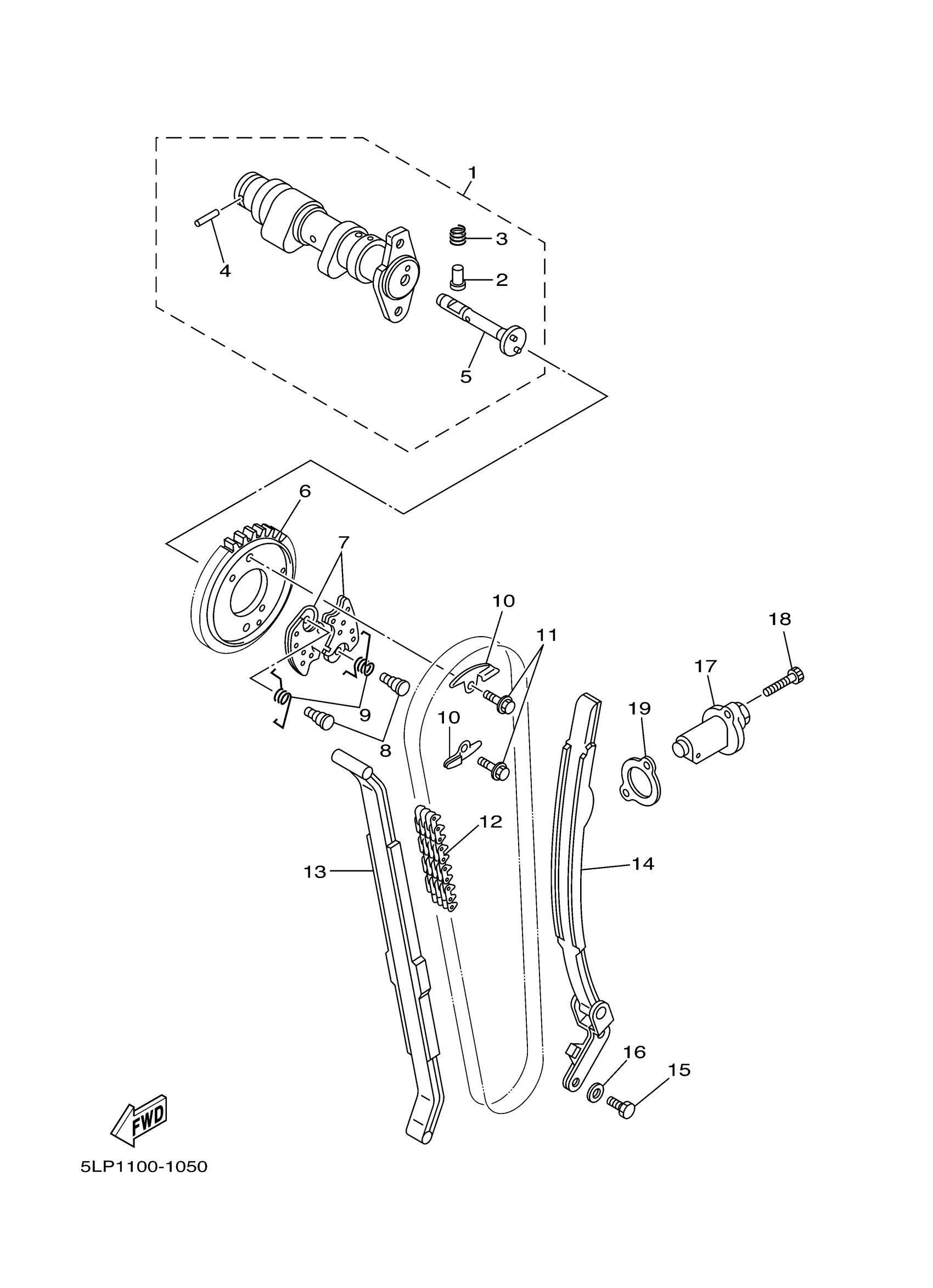

Yamaha YFM660RPB (RAPTOR LIMTED EDITION - BLACK) 5LP8 2002 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

5LP-12170-00-00

Unavailable

PIN, DECOMPRESSION LEVER

3YF-12284-00-00

Unavailable

SPRING, COMPRESSION

90501-05001-00

$2.34

PIN, DOWEL(4GV)

93603-21180-00

$8.49

LEVER, DECOMPRESSION SPRING

3YF-12290-00-00

$85.99

SPROCKET, CAM CHAIN

3YF-12176-00-00

$105.99

CAM, DECOMPRESSION

3YF-12288-00-00

Unavailable

SHAFT, TENSIONER

3YF-12247-00-00

Unavailable

SPRING

5KM-12216-01-00

$2.13

PLATE, GUIDE STOPPER 1

3YF-12233-01-00

$11.99

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-40126-00

$63.99

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

GUIDE, STOPPER 2

34K-12241-01-00

$123.99

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER(6TA)

92907-06600-00

Unavailable

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

Unavailable

BOLT,SOCKET

91317-06025-00

Unavailable

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
