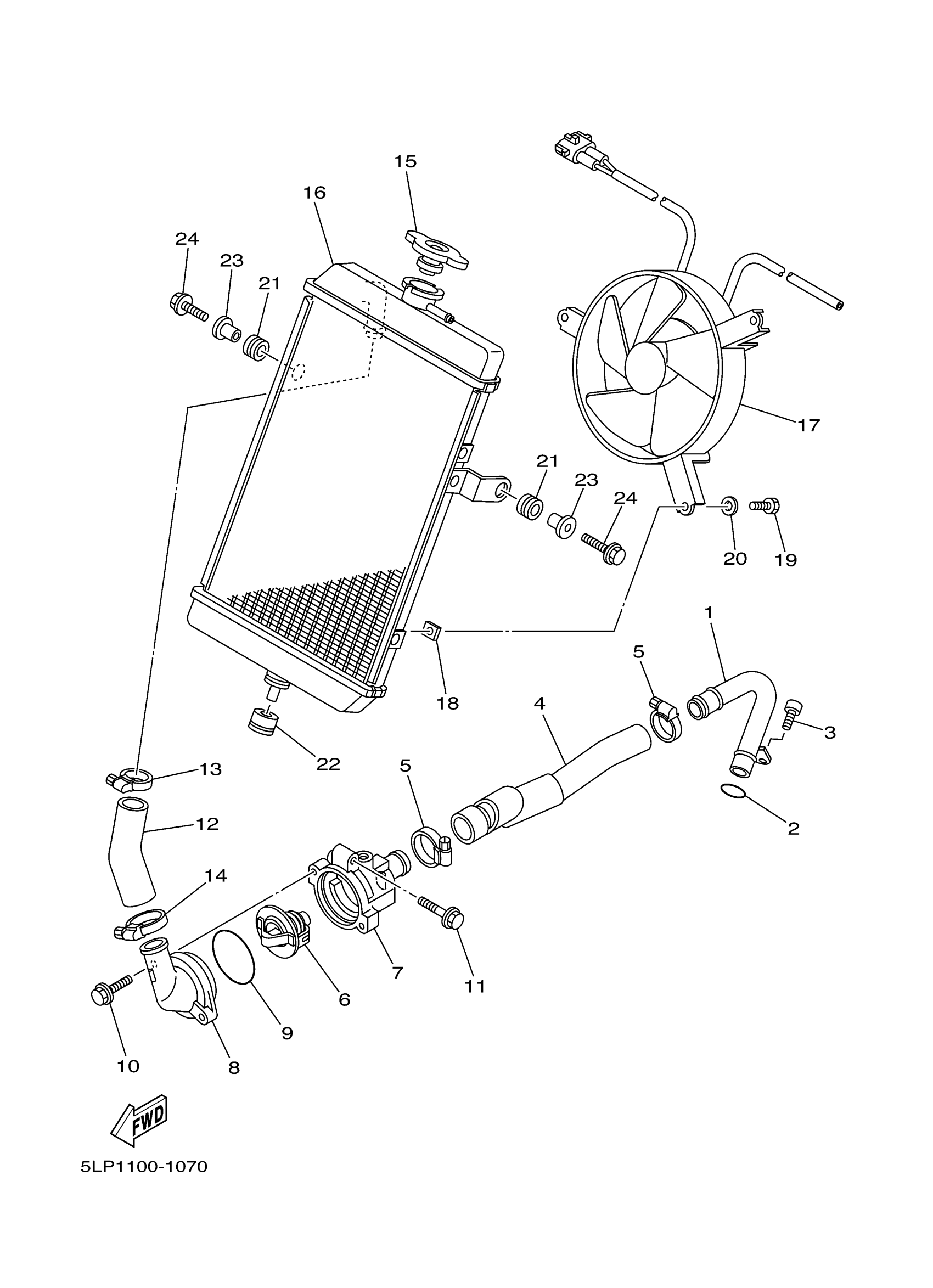

Yamaha YFM660RP (660R RAPTOR) 5LP5 2002 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 1

5LP-12481-00-00

$57.05

2

O-RING (716)

93210-18417-00

$5.34

3

BOLT,SOCKET

91317-06012-00

$5.75

4

HOSE 3

5LP-12578-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-32015-00

$14.22

6

THERMOSTAT

5LP-12411-01-00

$31.70

7

HOUSING, THERMOSTAT

5LP-12417-00-00

Unavailable

8

COVER, THERMOSTAT

5LP-12413-00-00

Unavailable

9

O-RING (620)

93210-49046-00

$5.47

10

. BOLT, FLANGE

95027-06020-00

$0.93

11

BOLT, SMALL FLANGE

95027-06025-00

$2.95

12

HOSE 4

5LP-12579-00-00

Unavailable

13

HOSE CLAMP ASSY

90450-32015-00

$14.22

14

HOSE CLAMP ASSY

90450-35001-00

$4.90

15

CAP, RADIATOR

4FL-12462-00-00

$53.09

16

RADIATOR ASSY

5LP-12461-10-00

Unavailable

17

BLOWER ASSY

5LP-12405-00-00

Unavailable

18

PLATE

1AA-12535-00-00

Unavailable

19

BOLT(3JP)

97017-06010-00

Unavailable

20

WASHER(6TA)

92907-06600-00

Unavailable

21

GROMMET(2GU)

90480-15470-00

Unavailable

22

GROMMET(3GB)

90480-18499-00

Unavailable

23

COLLAR

90387-075U2-00

Unavailable

24

BOLT, FLANGE

95817-06025-00

Unavailable
