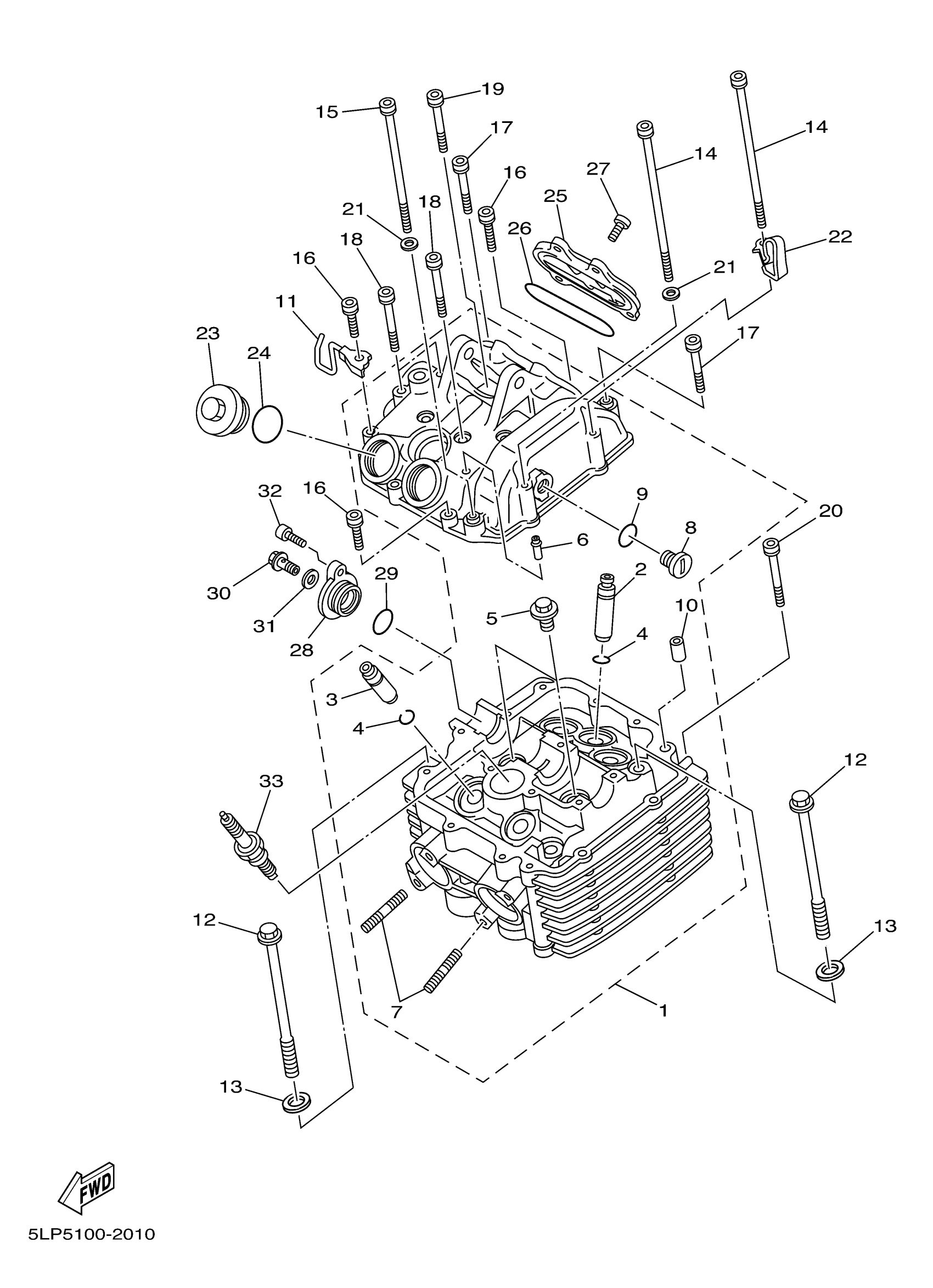

Yamaha YFM660RP (660R RAPTOR) 5LP5 2002 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5LP-11101-03-00

Unavailable

2

.. GUIDE, INTAKE VALVE

3YF-11133-10-00

Unavailable

3

.. GUIDE, EXHAUST VALVE

3YF-11134-10-00

Unavailable

4

CIRCLIP (4G0)

93440-10085-00

$8.49

5

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

6

. PIPE, BREATHER 3

22U-11126-00-00

Unavailable

7

BOLT, STUD(3MA)

90116-06541-00

$9.49

8

PLUG, STRAIGHT SCREW(2WK)

90340-14120-00

$14.99

9

O-RING(36Y)

93210-13657-00

$7.49

10

PIN, DOWEL(2VG)

99530-10116-00

$4.25

11

BRACKET

5LP-1135A-00-00

Unavailable

12

BOLT, WASHER BASED(3YF)

90105-09648-00

$21.99

13

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

14

BOLT,SOCKET

91317-06130-00

$9.49

15

BOLT,SOCKET

91317-06115-00

Unavailable

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

BOLT,SOCKET

91317-06040-00

Unavailable

18

BOLT,SOCKET

91317-06055-00

Unavailable

19

BOLT(2NX)

90109-063E9-00

Unavailable

20

BOLT,SOCKET

91317-06050-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

HOLDER 1

5LP-1131E-01-00

Unavailable

23

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

Unavailable

24

O-RING (341)

93210-32172-00

Unavailable

25

COVER, CYLINDER HEAD SIDE 3

3YF-11187-00-00

Unavailable

26

O-RING (2H7)

93210-71360-00

Unavailable

27

BOLT,SOCKET

91317-06018-00

Unavailable

28

CAP, TENSIONER CASE

34K-12215-03-00

Unavailable

29

O-RING (5Y1)

93210-19522-00

Unavailable

30

BOLT UNION 137131650000

90401-06001-00

Unavailable

31

GASKET (4V2)

90430-06166-00

Unavailable

32

BOLT,SOCKET

91317-06020-00

Unavailable

33

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable
