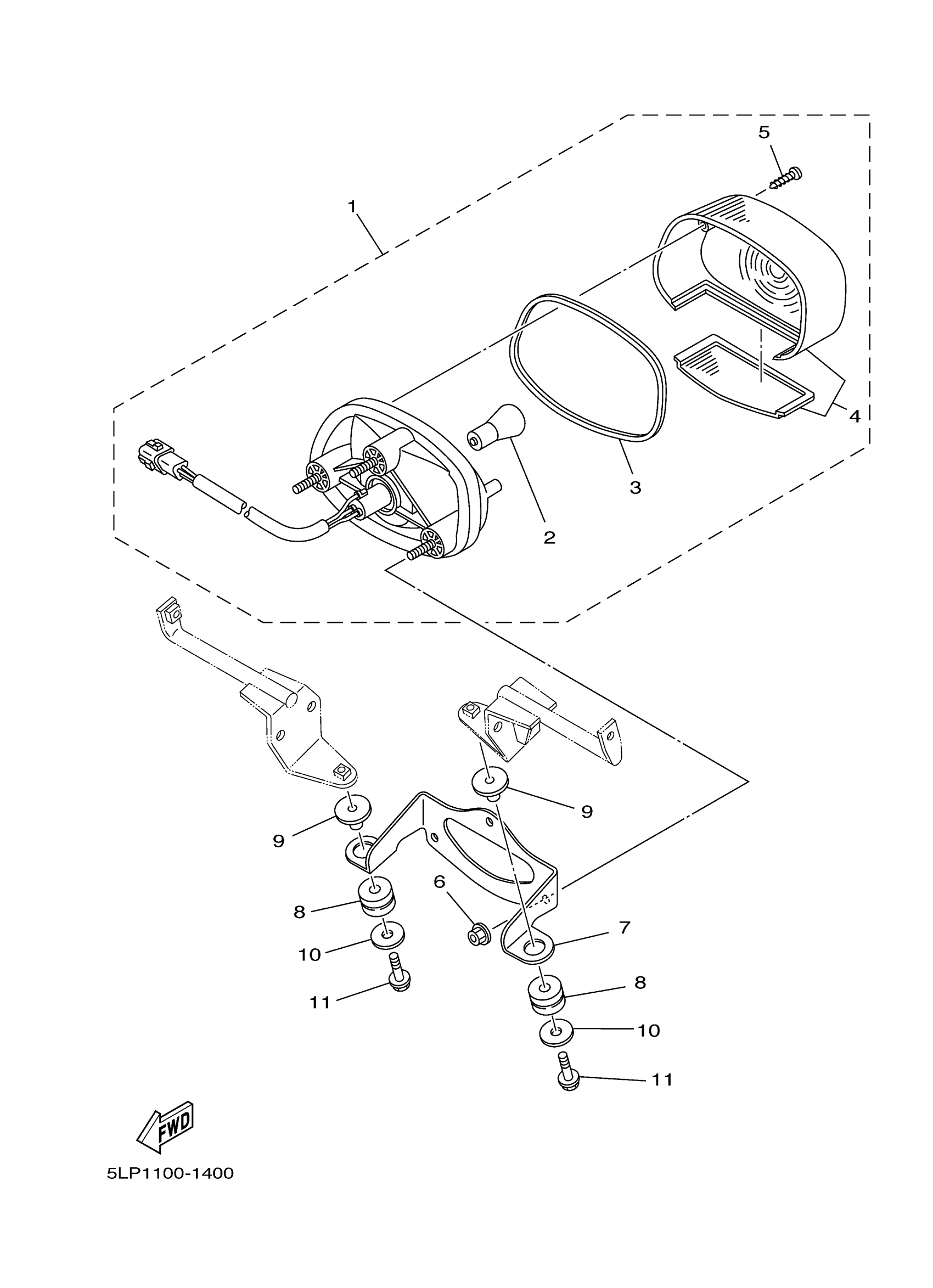

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5LP-84700-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.18

4

LENS, TAILLIGHT

4TR-84733-00-00

$18.52

5

SCREW, PAN TAP.2

97707-40520-00

$6.65

6

NUT, FLANGE(4MV)

95707-06500-00

$0.73

7

BRACKET, TAILLIGHT

5LP-84702-00-00

Unavailable

8

GROMMET(3RB)

90480-15528-00

$6.22

9

COLLAR (17W)

90387-075H4-00

$6.02

10

WASHER PLATE 248217570000

90201-06074-00

$5.86

11

BOLT, FLANGE

95817-06030-00

$3.65
