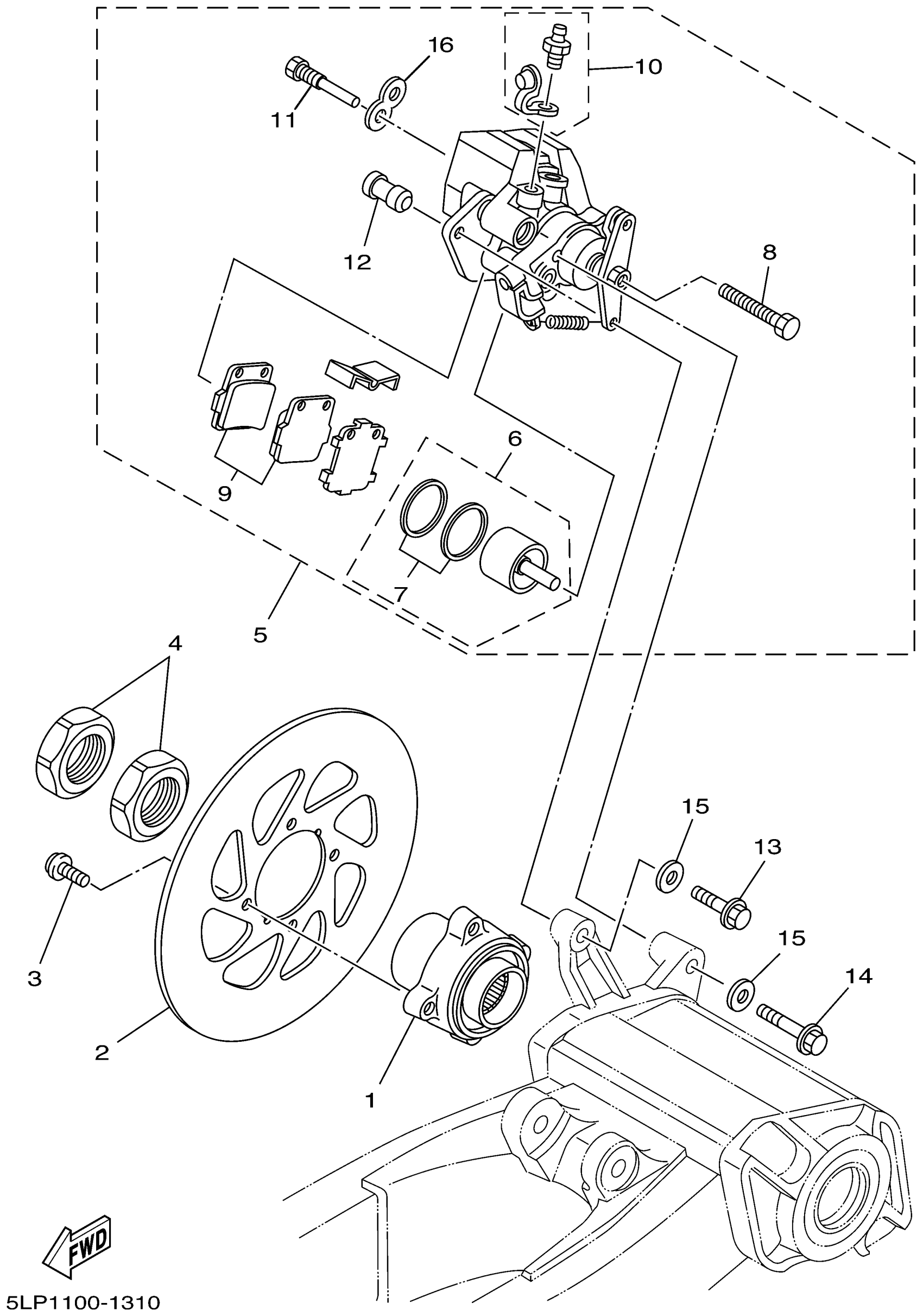

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 REAR BRAKE CALIPER Diagram

BRACKET, DISC

5LP-25712-10-00

Unavailable

DISC, REAR BRAKE 2

5LP-2582W-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

NUT

90170-33003-00

Unavailable

CALIPER ASSY, REAR 2

5LP-2580W-10-00

Unavailable

PISTON ASSY, CALIPER

1UY-W0057-50-00

$102.21

CALIPER SEAL KIT

1UY-W0047-50-00

$14.76

ADJUSTBOLT

1UY-25972-51-00

$10.74

BRAKE PAD KIT 2

5LP-W0046-51-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

PIN, PAD

1UY-25924-51-00

Unavailable

BOOT, CALIPER

1UY-25917-51-00

$5.50

BOLT, WASHER BASED(1UY)

90105-08440-00

$4.91

BOLT, FLANGE

95817-08035-00

$6.22

WASHER, PLATE

90201-08060-00

$6.87

WASHER, PAD PIN

1UY-25933-51-00

Unavailable
