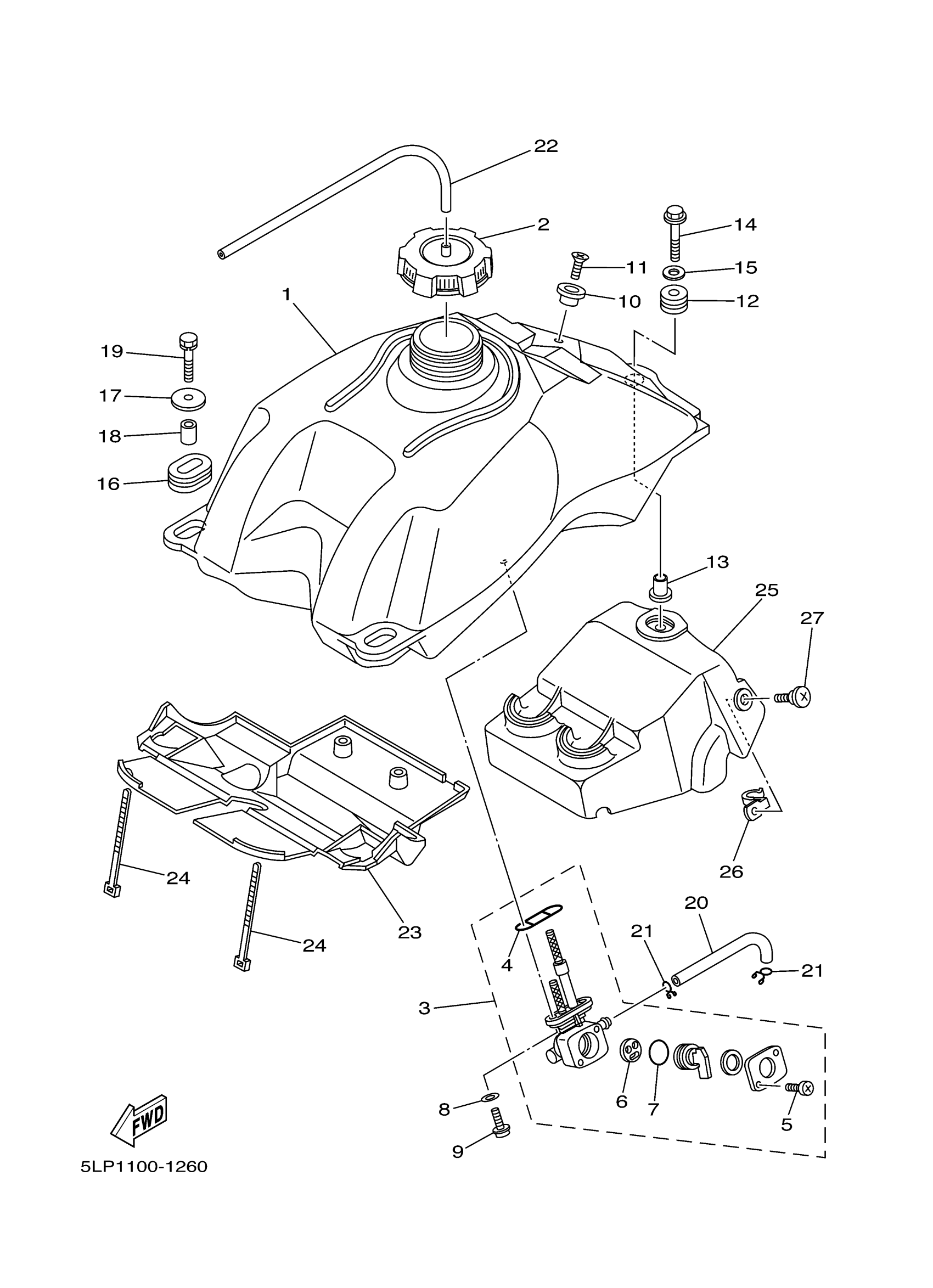

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5LP-24110-00-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

5LP-24500-01-00

$56.99

4

O-RING

4X8-24512-00-00

$8.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

VALVE PACKING

3AC-24523-00-00

$12.99

7

SEAL, COCK

3AJ-24534-01-00

$10.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

BRACKET, SEAT

4EW-2412F-00-00

$14.49

11

SCREW, FLAT

98707-06025-00

$8.49

12

GROMMET (4V1)

90480-18290-00

$8.49

13

COLLAR (36R)

90387-066J1-00

$8.49

14

BOLT, FLANGE

95817-06030-00

$4.29

15

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

16

GROMMET(38W)

90480-01400-00

Unavailable

17

WASHER, PLATE

90201-06090-00

Unavailable

18

COLLAR (1T2)

90387-07598-00

Unavailable

19

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

20

HOSE (L400)

90445-116K9-00

Unavailable

21

CLIP(1JH)

90467-11106-00

Unavailable

22

HOSE (L600)

90445-083J5-00

Unavailable

23

DAMPER, PLATE 1

5LP-2414H-01-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

DAMPER, PLATE 2

5LP-2414J-01-00

Unavailable

26

CLAMP 1

5LP-24135-00-00

Unavailable

27

SCREW, BINDING(1FK)

90154-06033-00

Unavailable
