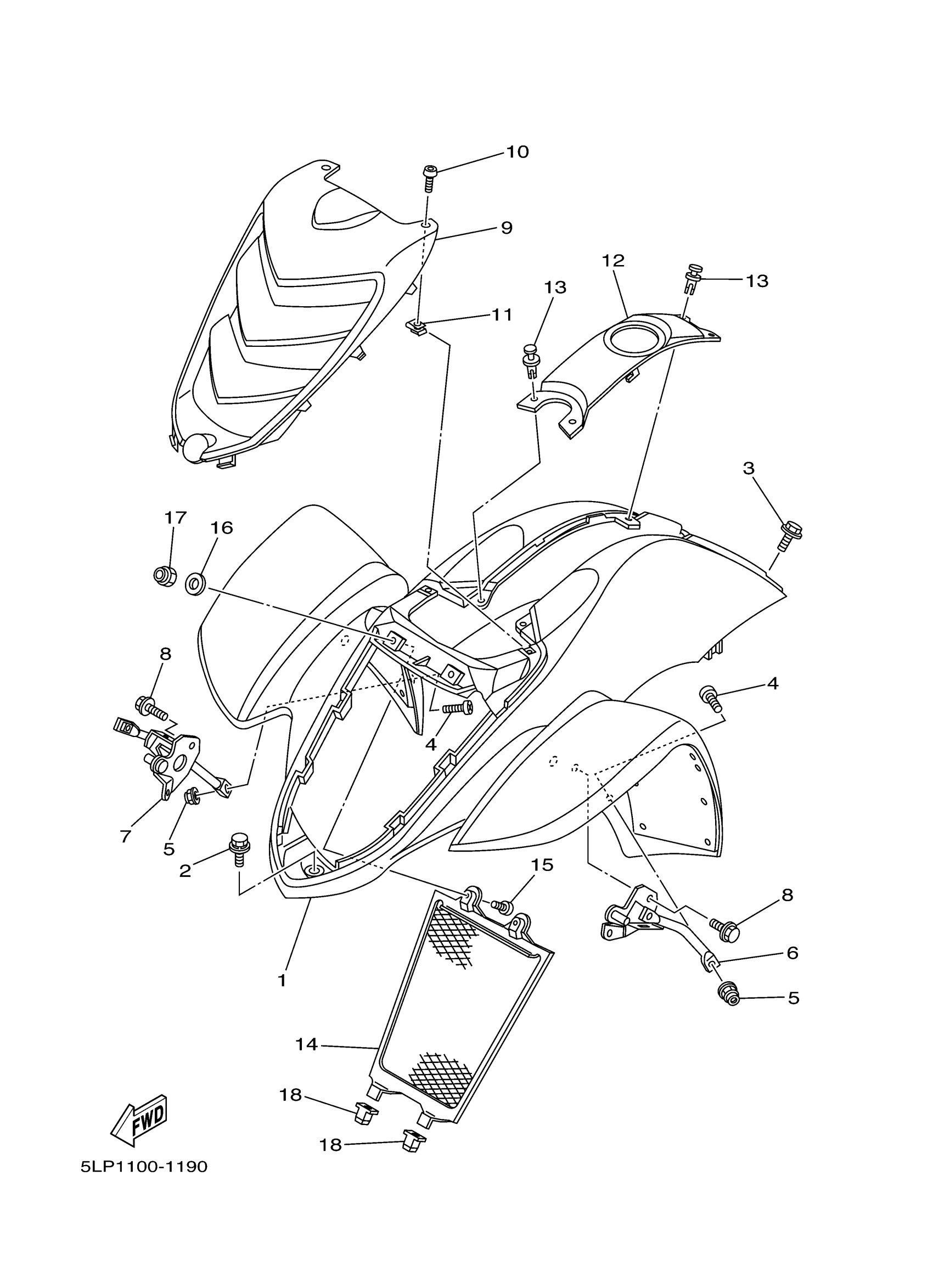

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

5LP-W2151-00-00

Unavailable

1

FRONT FENDER COMP. (RADICAL WHITE)

5LP-W2151-10-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

4

SCREW(3JM)

90149-06306-00

$8.49

5

NUT,SELF-LOCKING

95607-06200-00

$12.49

6

STAY, FENDER 1

5LP-21513-00-00

Unavailable

7

STAY, FENDER 2

5LP-21514-00-00

Unavailable

8

BOLT, FLANGE

95817-08014-00

$5.60

9

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

5LP-21556-00-00

Unavailable

9

FENDER, FRONT 2 (RADICAL WHITE)

5LP-21556-A0-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

11

NUT, SPRING

90183-05008-00

$9.49

12

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

5LP-2171A-00-00

Unavailable

12

COVER, TOP (RADICAL WHITE)

5LP-2171A-10-00

Unavailable

13

RIVET

90269-06002-00

Unavailable

14

COVER, RADIATOR

5LP-12467-00-00

Unavailable

15

SCREW, BIND(4DN)

98980-05014-00

Unavailable

16

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

DAMPER 1

5LP-21541-00-00

Unavailable
