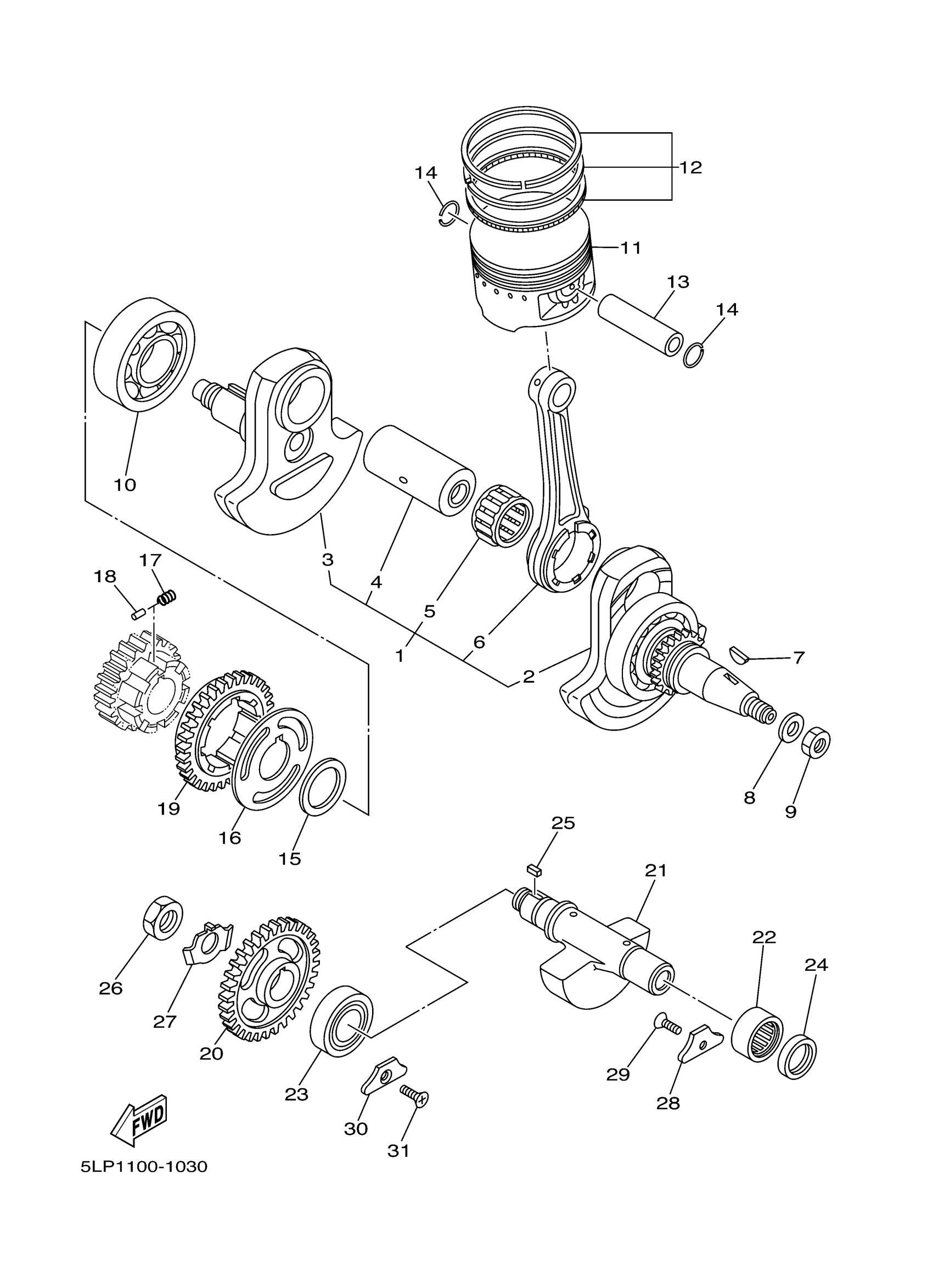

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
5LP-11400-00-00
Unavailable
2
CRANK SUB ASSY 1
5LP-11401-09-00
Unavailable
3
. CRANK 2
5LP-11422-00-00
Unavailable
12
PISTON RING SET (STD)
2C6-11603-00-00
Unavailable
12
PISTON RING SET (1.00MM O/S)
2C6-11607-00-00
Unavailable
13
PIN, PISTON
3YF-11633-01-00
Unavailable
14
CIRCLIP 256116340000
93450-24028-00
Unavailable
15
WASHER, PLATE (5Y1)
90201-301F4-00
Unavailable
16
WASHER, BEARING COVER
34K-11565-02-00
Unavailable
17
SPRING, COMPRESSION
90501-20003-00
Unavailable
18
PIN, DOWEL
93605-10090-00
Unavailable
19
GEAR, DRIVE
5LP-11536-10-00
Unavailable
20
GEAR, BALANCE WEIGHT
5LP-11531-00-00
Unavailable
21
WEIGHT 1
5LP-11454-11-00
Unavailable
22
BEARING, CYLINDRICAL(3YL)
93311-62574-00
Unavailable
23
BEARING(3RR)
93306-30560-00
Unavailable
24
OIL SEAL (25X35X7-256)
93102-25064-00
Unavailable
25
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
26
NUT
90170-18003-00
Unavailable
27
WASHER, LOCK
90215-18001-00
Unavailable
28
PLATE, BEARING COVER
3XV-15381-00-00
Unavailable
29
SCREW, FLAT
98707-06014-00
Unavailable
30
PLATE, BEARING COVER
3XV-15381-00-00
Unavailable
31
SCREW, FLAT
98707-06014-00
Unavailable
