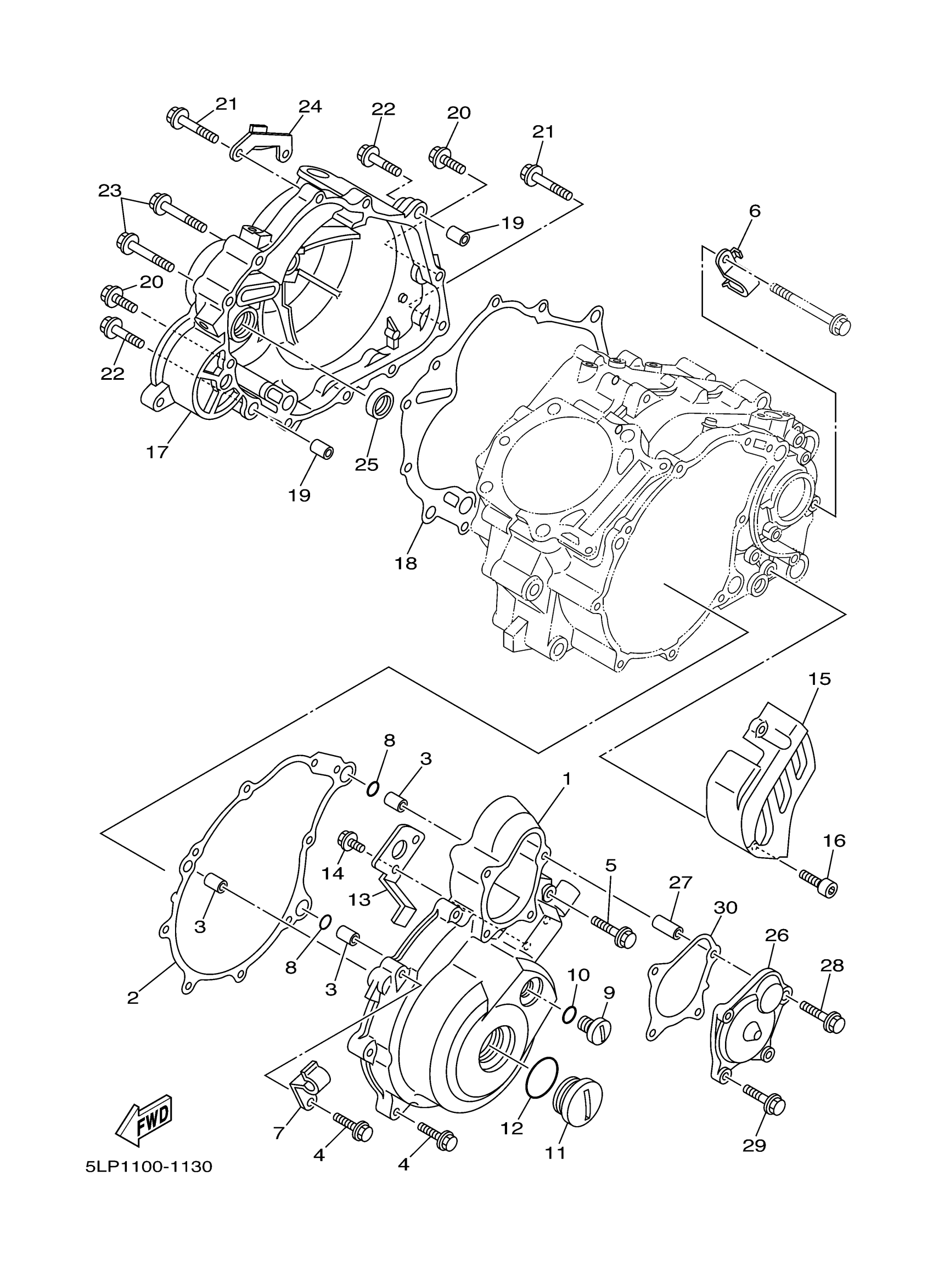

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

5LP-15411-00-00

Unavailable

GASKET, CRANKCASE COVER 1

5LP-15451-00-00

$24.99

PIN, DOWEL

99530-12016-00

$4.89

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06040-00

$3.28

CLAMP(51Y)

90465-08277-00

Unavailable

CLAMP(4MX)

90465-06376-00

$9.49

GUIDE, OIL HOSE

5LP-13487-00-00

Unavailable

O-RING (2H7)

93210-13361-00

$5.60

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

O-RING (2H9)

93210-14369-00

$7.49

PLUG, STRAIGHT SCREW(2WK)

90340-36121-00

$33.99

O-RING

93210-35804-00

$0.48

PLATE

5LP-15113-00-00

Unavailable

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

COVER, CRANKCASE 2

5LP-15421-01-00

Unavailable

BOLT,SOCKET

91317-06020-00

Unavailable

COVER, CRANKCASE 3

5LP-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 3

5LP-15462-00-00

Unavailable

PIN, DOWEL

99530-12016-00

$4.89

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

BOLT, SMALL FLANGE

95027-06050-00

Unavailable

HOLDER, CLUTCH CABLE

5LP-15441-00-00

Unavailable

OIL SEAL (3Y1)

93101-14092-00

Unavailable

COVER, GENERATOR

5LP-15415-00-00

Unavailable

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

GASKET 1

5LP-15455-00-00

Unavailable
