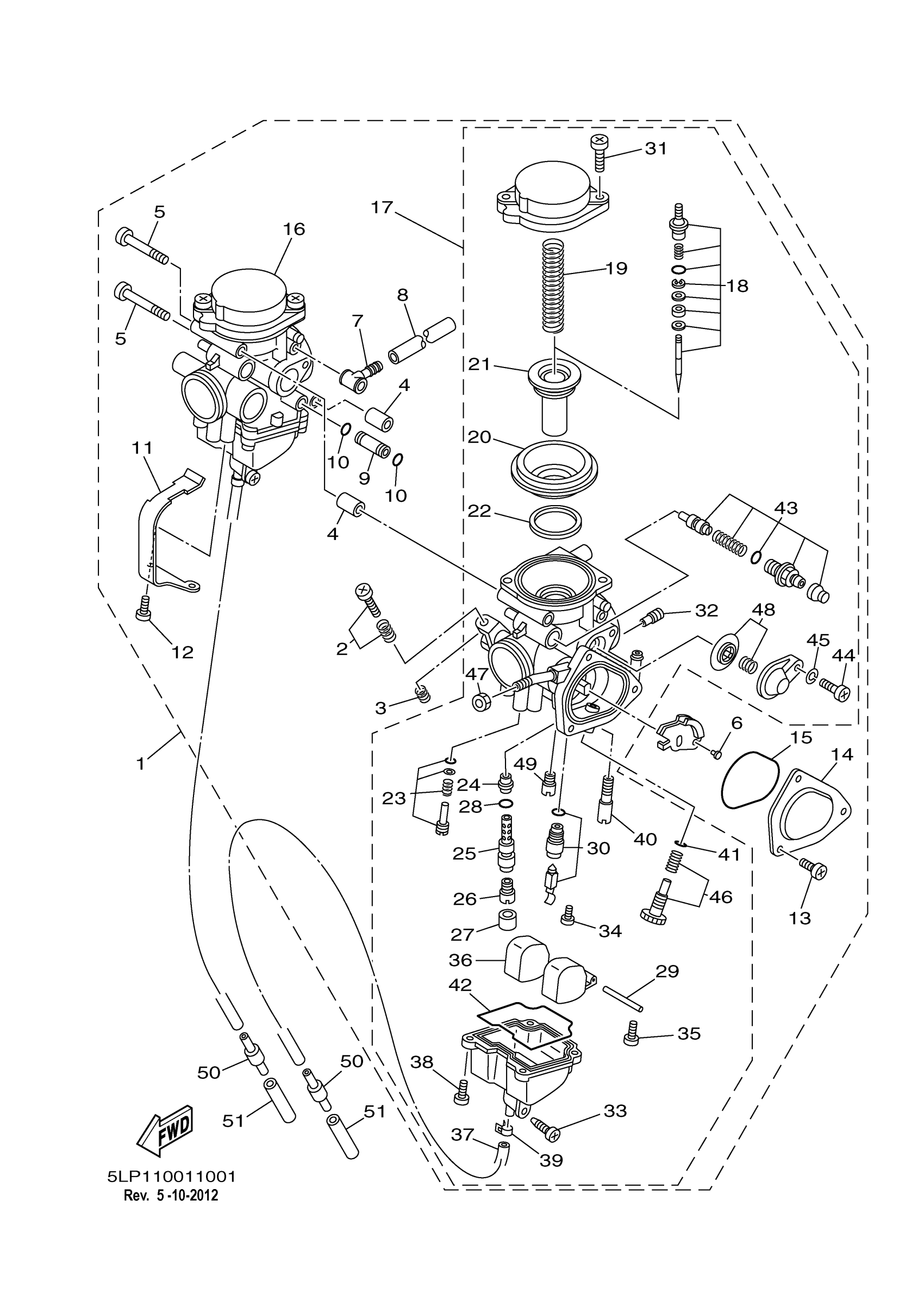

Yamaha YFM660RNC (660R RAPTOR) 5LP3 2001 CARBURETOR RN Diagram

#

Description
Price

1

CARBURETOR ASSY

5LP-14900-00-00

Unavailable

2

STOP SCREW SET

4KM-1490K-00-00

Unavailable

3

. SPRING, PILOT ADJUSTING

620-14212-00-00

Unavailable

4

.. PIPE

5LP-14996-00-00

Unavailable

5

.. SCREW

3LN-14216-00-00

Unavailable

6

GUIDE, CABLE

1UY-14155-00-00

$18.49

7

CONNECTOR

5EA-14167-00-00

$23.99

8

.. PIPE

5LP-14349-00-00

Unavailable

9

PIPE

5DM-14148-00-00

$15.49

10

O-RING

36Y-14147-00-00

$5.49

11

PLATE

5LP-14945-00-00

Unavailable

12

SCREW

3DM-14216-00-00

Unavailable

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

COVER 1

4WV-14293-00-00

$9.99

15

O-RING

4WV-14147-10-00

$32.99

16

.. CARBURETOR ASSY 2

5LP-14902-00-00

Unavailable

17

.. CARBURETOR ASSY 1

5LP-14901-00-00

Unavailable

18

NEEDLE SET

5LP-1490J-00-00

Unavailable

19

SPRING, DIAPHRAGM

4KM-14933-00-00

Unavailable

20

DIAPHRAGM ASSY

5GH-14940-10-00

Unavailable

21

VALVE, THROTTLE 1

5LP-14112-00-00

Unavailable

22

.... RING

5LP-14918-00-00

Unavailable

23

PILOT SCREW SET

5LP-14105-00-00

Unavailable

23

PILOT SCREW SET

5LP-14105-10-00

Unavailable

24

.... NOZZLE, MAIN

5DM-14141-46-00

Unavailable

25

.... HOLDER

5GH-14261-10-00

Unavailable

26

JET, MAIN (#140)

3G2-14231-28-00

Unavailable

26

JET, MAIN (#145)

3G2-14231-29-00

Unavailable

27

RING

5GH-14918-00-00

Unavailable

28

O-RING

583-14561-00-00

Unavailable

29

PIN, FLOAT

127-14186-00-00

Unavailable

30

NEEDLE VALVE SET

5LP-14107-20-00

Unavailable

31

SCREW

4KM-14216-00-00

Unavailable

32

JET, MAIN (# 80)

1HX-14231-16-00

Unavailable

32

.... JET, MAIN (#150)

1HX-14231-30-00

Unavailable

33

PLUG, DRAIN

12R-14191-00-00

Unavailable

34

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

35

SCREW

1FN-14565-00-00

Unavailable

36

FLOAT

5DM-14985-00-00

Unavailable

37

PIPE

4KB-14193-20-00

Unavailable

38

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

39

CLIP

90467-06194-00

Unavailable

40

JET, PILOT (# 22.5)

4KM-14142-22-00

Unavailable

41

. O-RING

6K8-14562-00-00

Unavailable

42

O-RING

5DM-14561-00-00

Unavailable

43

STARTER SET

5GH-1410A-00-00

Unavailable

44

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

45

WASHER(6TA)

92907-04100-00

Unavailable

46

.... THROTTLE SCREW SET

5LP-14103-00-00

Unavailable

47

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

48

DIAPHRAGM SET 5

5EL-1490H-00-00

Unavailable

49

JET, MAIN (# 95)

3G2-14231-19-00

Unavailable

50

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

51

TUBE, FLEXIBLE VINYL

91A20-07004-00

Unavailable
