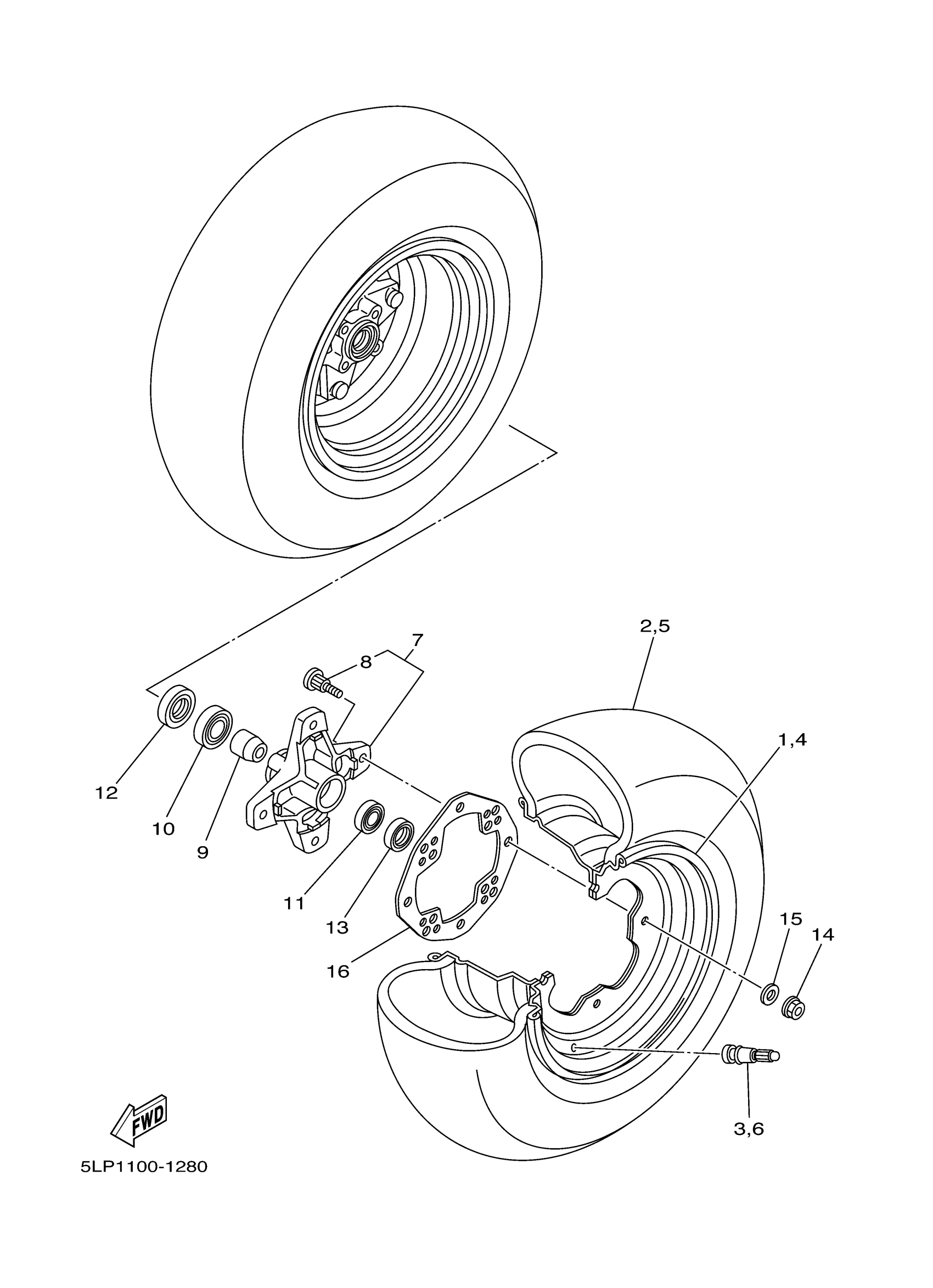

Yamaha YFM660RLES (660R RAPTOR LIMITED EDITION BLACK) 5LPJ 2004 FRONT WHEEL Diagram

WHEEL,FRONT

5LP-F5180-29-00

$274.99

TIRE (AT21 X 7-10** KT331)

94107-10009-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

WHEEL,FRONT

5LP-F5180-29-00

$274.99

TIRE (AT21 X 7-10** KT331)

94107-10009-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

HUB, FRONT

5LP-25111-20-00

Unavailable

BOLT (38W)

90114-10007-00

$5.60

SPACER, BEARING

5LP-25117-00-00

$17.49

BEARING(3BN)

93306-00438-00

$37.99

BEARING(3BN)

93306-00438-00

$37.99

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

OIL SEAL(1UY)

93105-26026-00

$12.49

OIL SEAL (7H5)

93102-22216-00

$11.49

NUT, FLANGE(8AB)

95707-10500-00

$3.18

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

COVER, PLATE

3GD-25127-10-00

Unavailable
