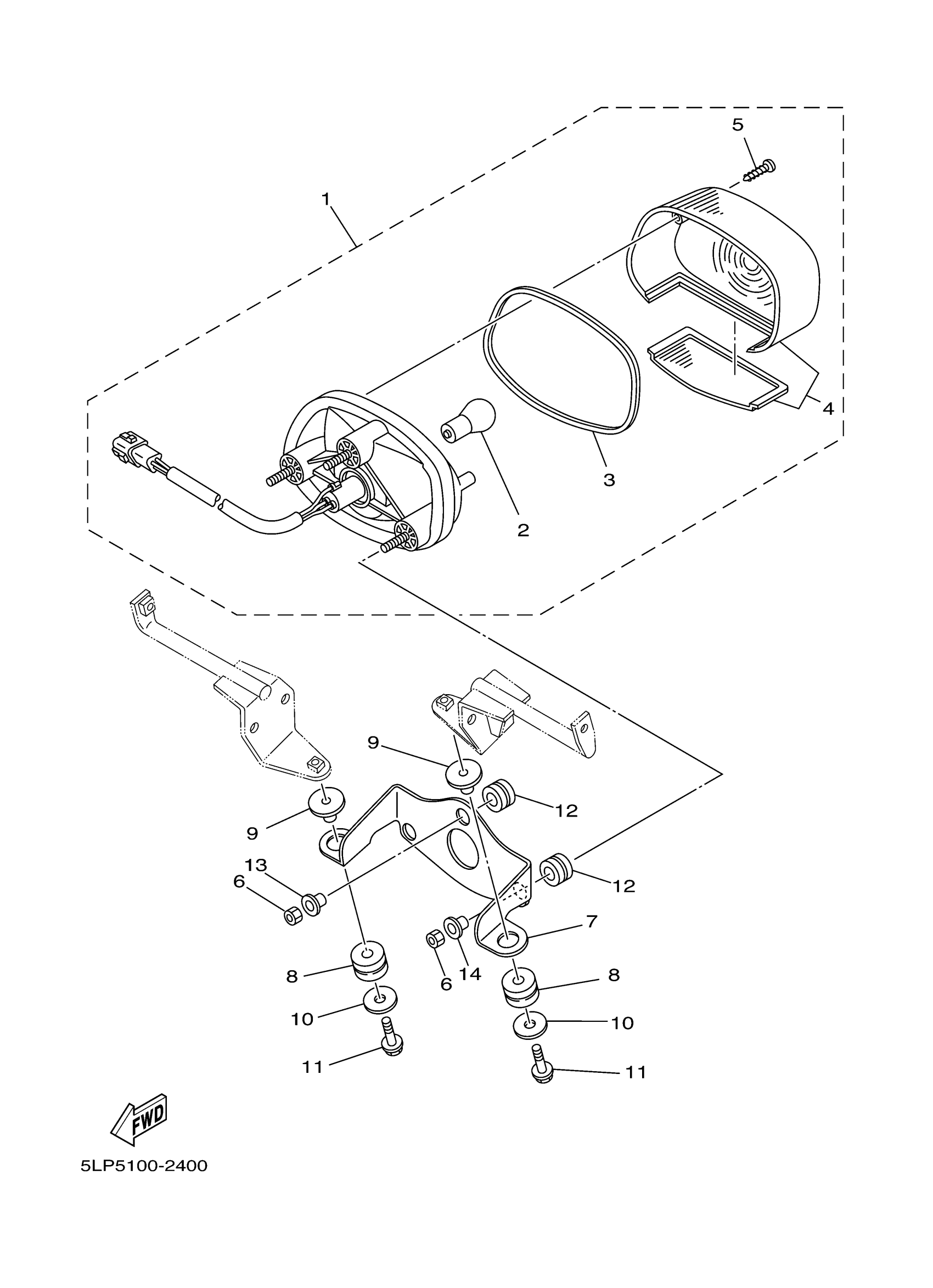

Yamaha YFM660RLER (RAPTOR BLACK LIMITED EDITION) 5LPC 2003 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5LP-84700-11-00

$89.99

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.89

4

LENS, TAILLIGHT

4TR-84733-00-00

$22.99

5

YBS83-420 SCREW,PANH,TAPPING

97780-40120-00

$3.55

6

NUT(6TA)

95317-06600-00

$3.55

7

BRACKET, TAILLIGHT

5LP-84702-30-00

Unavailable

8

GROMMET(3RB)

90480-15528-00

$8.49

9

COLLAR (17W)

90387-075H4-00

$8.49

10

WASHER PLATE 248217570000

90201-06074-00

$9.49

11

BOLT, FLANGE

95817-06030-00

$4.29

12

GROMET (3X3)

90480-14229-00

$8.49

13

COLLAR

90387-075U2-00

Unavailable

14

COLLAR 437216330000

90387-07391-00

Unavailable
