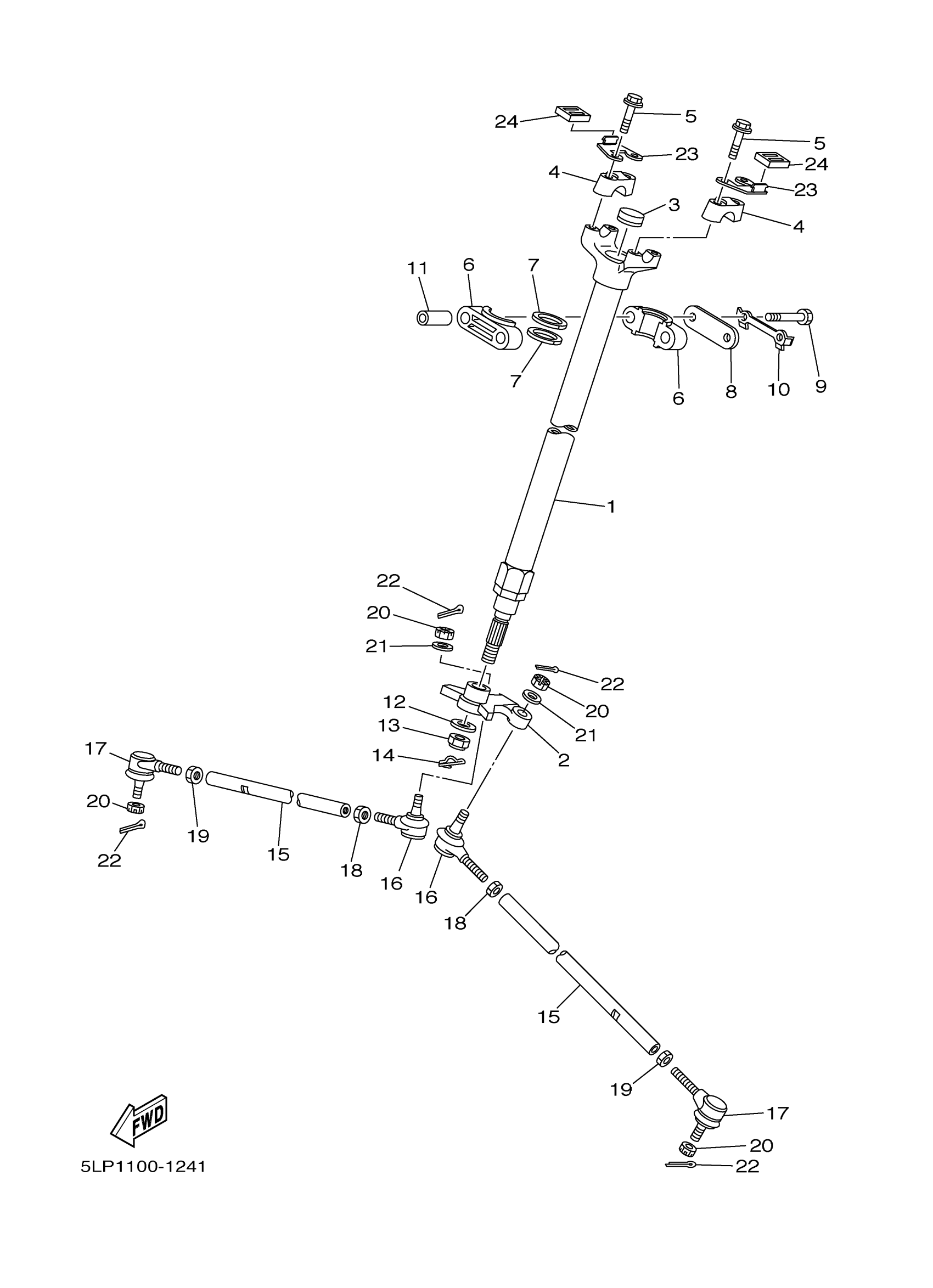

Yamaha YFM660RLER (RAPTOR BLACK LIMITED EDITION) 5LPC 2003 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5LP-23813-10-00

Unavailable

2

ARM, PITMAN

5LP-23816-00-00

Unavailable

3

PLUG, TAPER(2HR)

90336-28053-00

$10.49

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

95817-08035-00

$9.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

3GD-23868-01-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

WASHER, PLATE

90201-14226-00

$5.60

13

NUT, SELF-LOCKING(3FC)

90185-14150-00

$14.99

14

CLIP(3YF)

90468-16191-00

$8.49

15

ROD, TIE

5LP-23831-00-00

$36.99

16

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

17

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

18

NUT (3WP1)

95317-10700-00

Unavailable

19

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

20

NUT, CASTLE

90171-10001-00

Unavailable

21

WASHER (25G)

90209-10229-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

BRACKET 1

5LP-23881-00-00

Unavailable

24

SPACER

5LP-23858-00-00

Unavailable
