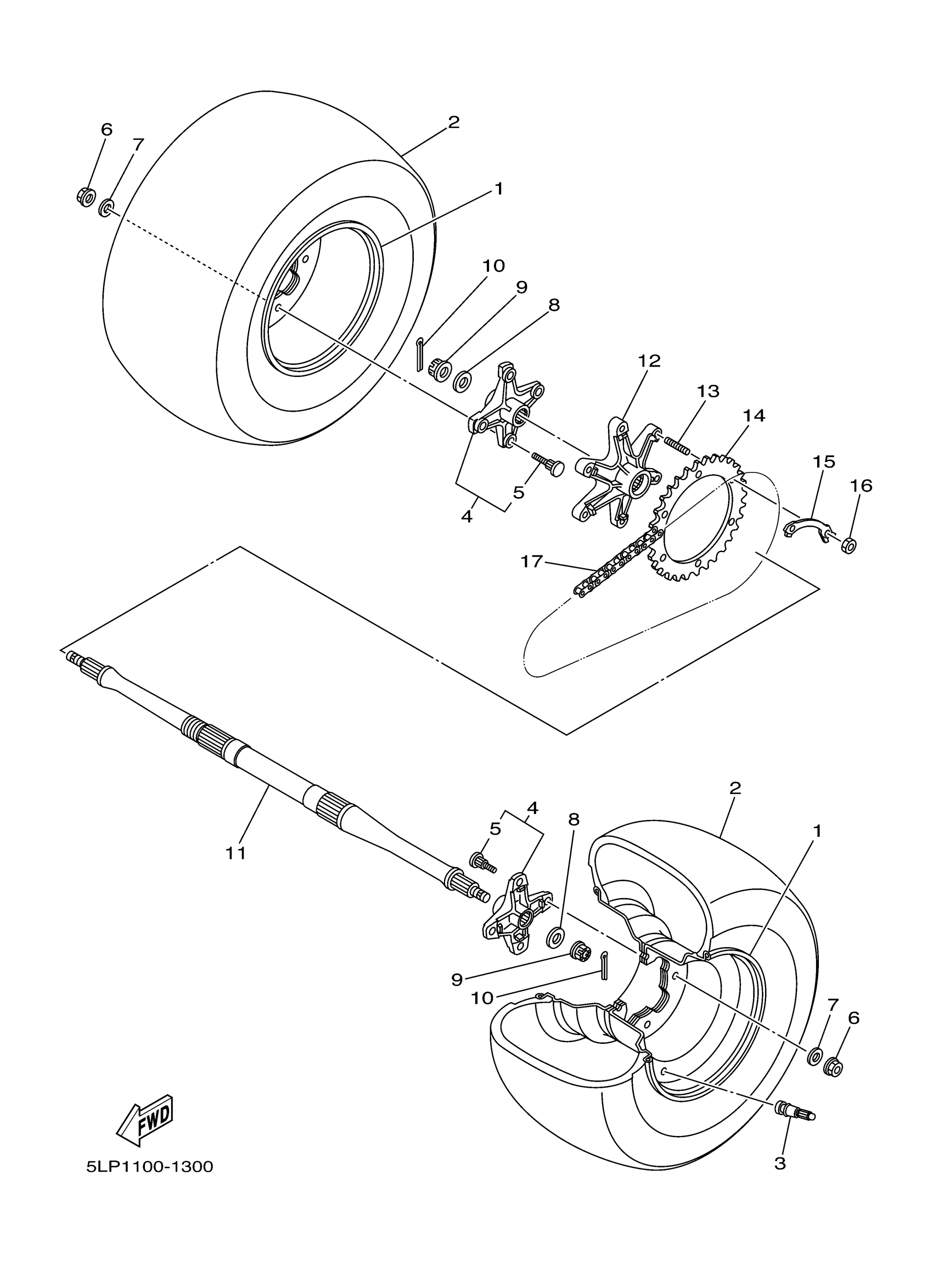

Yamaha YFM660RLER (RAPTOR BLACK LIMITED EDITION) 5LPC 2003 REAR WHEEL Diagram

REAR WHEEL COMP.

5LP-25390-11-YX

Unavailable

TIRE (AT20 X 10-9** KT335 T/L)

94110-09008-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$13.50

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$64.97

BOLT, RIBBED NECK(3GD)

90114-10009-00

$5.50

NUT, FLANGE(8AB)

95707-10500-00

$1.55

WASHER, PLAIN(3BM)

92907-10200-00

$3.34

WASHER, PLATE

90201-14226-00

Unavailable

NUT, CASTLE (29U)

90171-14037-00

$8.39

PIN, COTTER

91490-30030-00

$6.88

AXLE, WHEEL

5LP-25381-10-00

Unavailable

COLLAR, SPROCKET AXLE

5LP-25386-00-00

$196.53

BOLT, STUD(2XJ)

90116-08507-00

$5.10

SPROCKET, DRIVEN (40T)

2XJ-25440-21-00

$39.05

WASHER

2XJ-25412-00-00

$3.76

NUT (3Y2)

90170-08258-00

Unavailable

CHAIN

94582-02092-00

Unavailable
