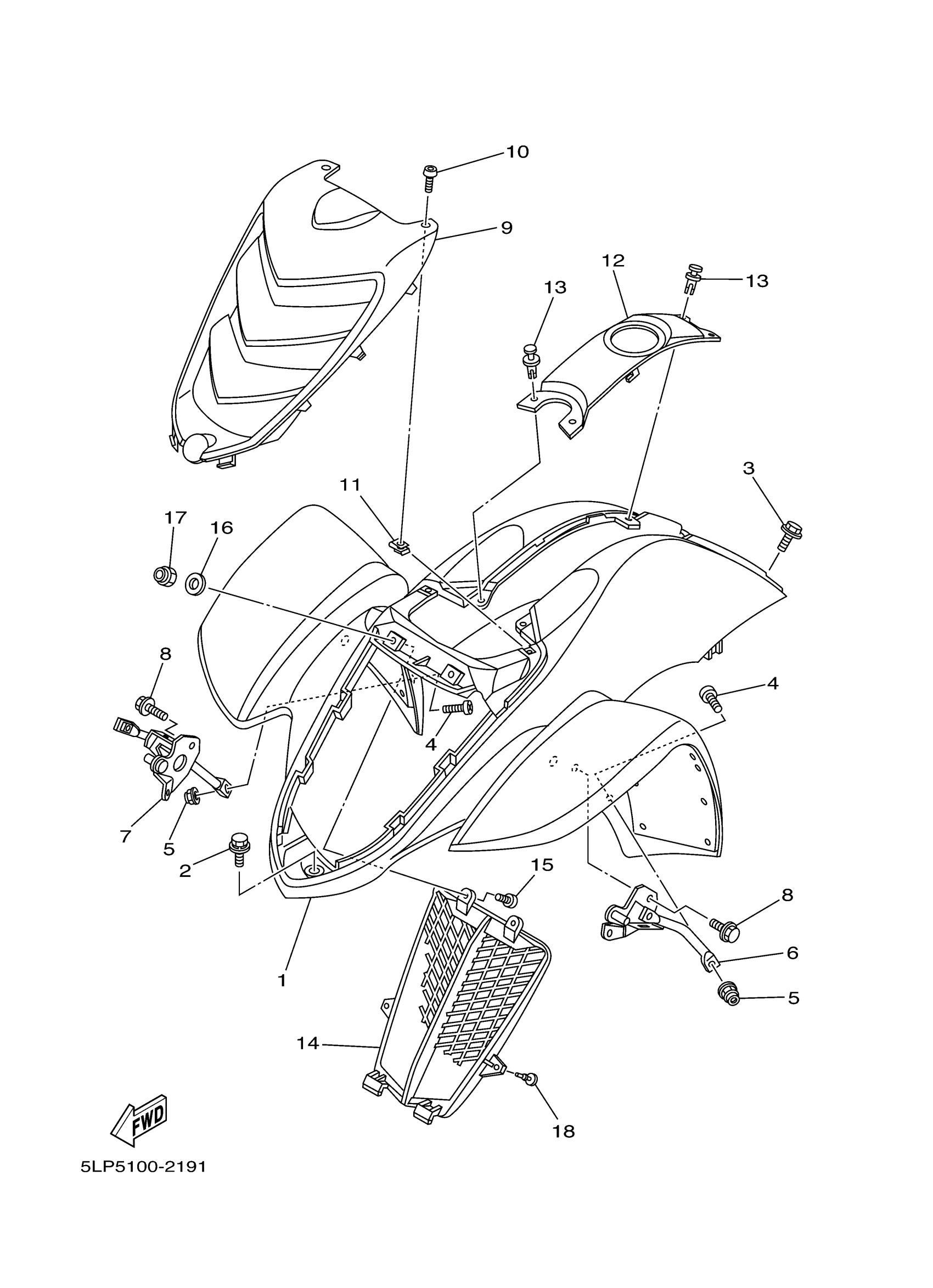

Yamaha YFM660RLER (RAPTOR BLACK LIMITED EDITION) 5LPC 2003 FRONT FENDER Diagram

FRONT FENDER COMP. (RADICAL WHITE)

5LP-W2151-10-00

Unavailable

BOLT, WITH WASHER

90119-06152-00

$7.49

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

SCREW(3JM)

90149-06306-00

$8.49

NUT,SELF-LOCKING

95607-06200-00

$12.49

STAY, FENDER 1

5LP-21513-00-00

Unavailable

STAY, FENDER 2

5LP-21514-00-00

Unavailable

BOLT, FLANGE

95817-08014-00

$5.60

FENDER, FRONT 2

5LP-21556-D0-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

NUT, SPRING

90183-05008-00

$9.49

COVER, TOP (RADICAL WHITE)

5LP-2171A-10-00

Unavailable

RIVET

90269-06002-00

$8.49

COVER, RADIATOR

5LP-12467-10-00

Unavailable

SCREW, BINDING (8R1)

90154-05011-00

$4.29

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

NUT, U

95617-05100-00

Unavailable

GROMMET (1J7)

90480-05201-00

Unavailable
