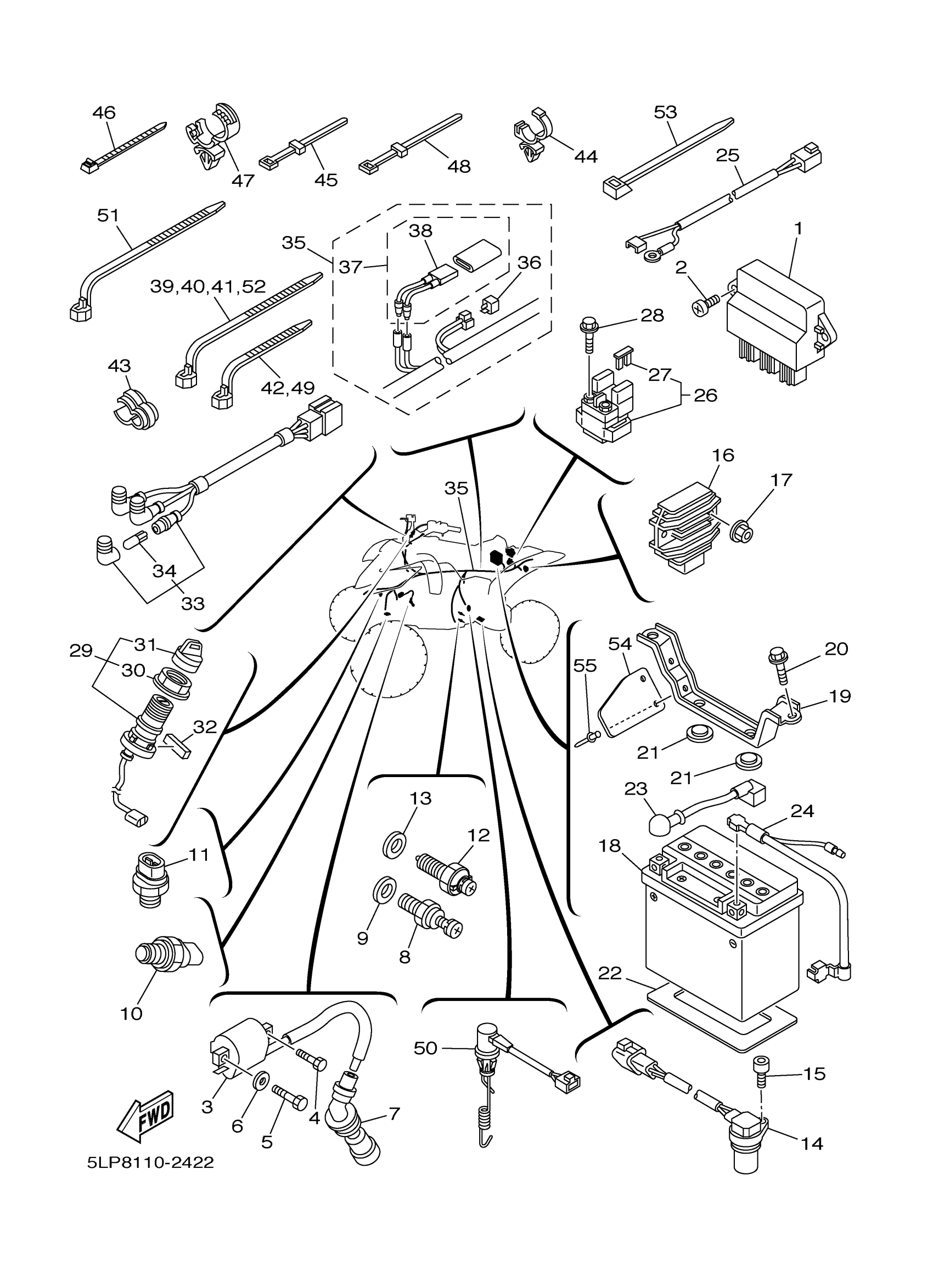

Yamaha YFM660RLER (RAPTOR BLACK LIMITED EDITION) 5LPC 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5LP-85540-20-00

Unavailable

2

SCREW, BINDING

98907-06016-00

$9.49

3

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

4

BOLT (21V)

90109-06723-00

$8.49

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

WASHER(6TA)

92907-06600-00

$2.72

7

PLUG CAP ASSY

3YF-82370-00-00

$77.99

8

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$37.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

THERMO SWITCH ASSY

5GH-82560-01-00

$44.99

11

THERMO SWITCH ASSY

5LP-82560-01-00

$39.99

12

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

SENSOR, SPEED

5LP-83755-02-00

Unavailable

15

BOLT,SOCKET

91317-06016-00

$1.25

16

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

Unavailable

17

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

18

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

Unavailable

19

BRACKET, BATTERY

5LP-82128-00-00

Unavailable

20

BOLT, FLANGE

95817-06012-00

Unavailable

21

PAD, BATTERY

371-82121-00-00

Unavailable

22

SEAT, BATTERY

5LP-82122-00-00

Unavailable

23

WIRE, PLUS LEAD

5LP-82115-00-00

Unavailable

24

WIRE, MINUS LEAD

5LP-82116-00-00

Unavailable

25

WIRE, LEAD

5LP-82541-00-00

Unavailable

26

STARTER RELAY ASSY (RC19-026)

4XE-81940-12-00

Unavailable

27

FUSE (20A)

2GV-82151-00-00

Unavailable

28

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

29

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

30

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

31

CAP, KEY

3HN-82579-00-00

Unavailable

32

DAMPER

5LP-82176-00-00

Unavailable

33

PILOT LIGHT ASSY

5LP-83530-00-00

Unavailable

34

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

35

WIRE HARNESS ASSY

5LP-82590-10-00

Unavailable

36

DIODE ASSY

3WP-81980-00-00

Unavailable

37

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

38

THERMO SWITCH ASSY

5GT-82560-00-00

Unavailable

39

CLAMP(4FM)

90464-15195-00

Unavailable

40

CLAMP(4FM)

90464-15195-00

Unavailable

41

CLAMP(4FM)

90464-15195-00

Unavailable

42

CLAMP(4FM)

90464-15195-00

Unavailable

43

CLAMP(53Y)

90464-15065-00

Unavailable

44

CLAMP(4AP)

90464-20181-00

Unavailable

45

BAND, SWITCH CORD

437-83936-01-00

Unavailable

46

CLAMP (6E5)

90465-13M11-00

Unavailable

47

CLAMP(M80)

90464-07209-00

Unavailable

48

BAND, SWITCH CORD

437-83936-11-00

Unavailable

49

CLAMP(4FM)

90464-15195-00

Unavailable

50

STOP SWITCH ASSY

5LP-82530-00-00

Unavailable

51

CLAMP

90464-13077-00

Unavailable

52

CLAMP(4FM)

90464-15195-00

Unavailable

53

CLAMP

90464-16061-00

Unavailable

54

COVER, BATTERY

5LP-82129-00-00

Unavailable

55

RIVET, BLIND

90267-48120-00

Unavailable
