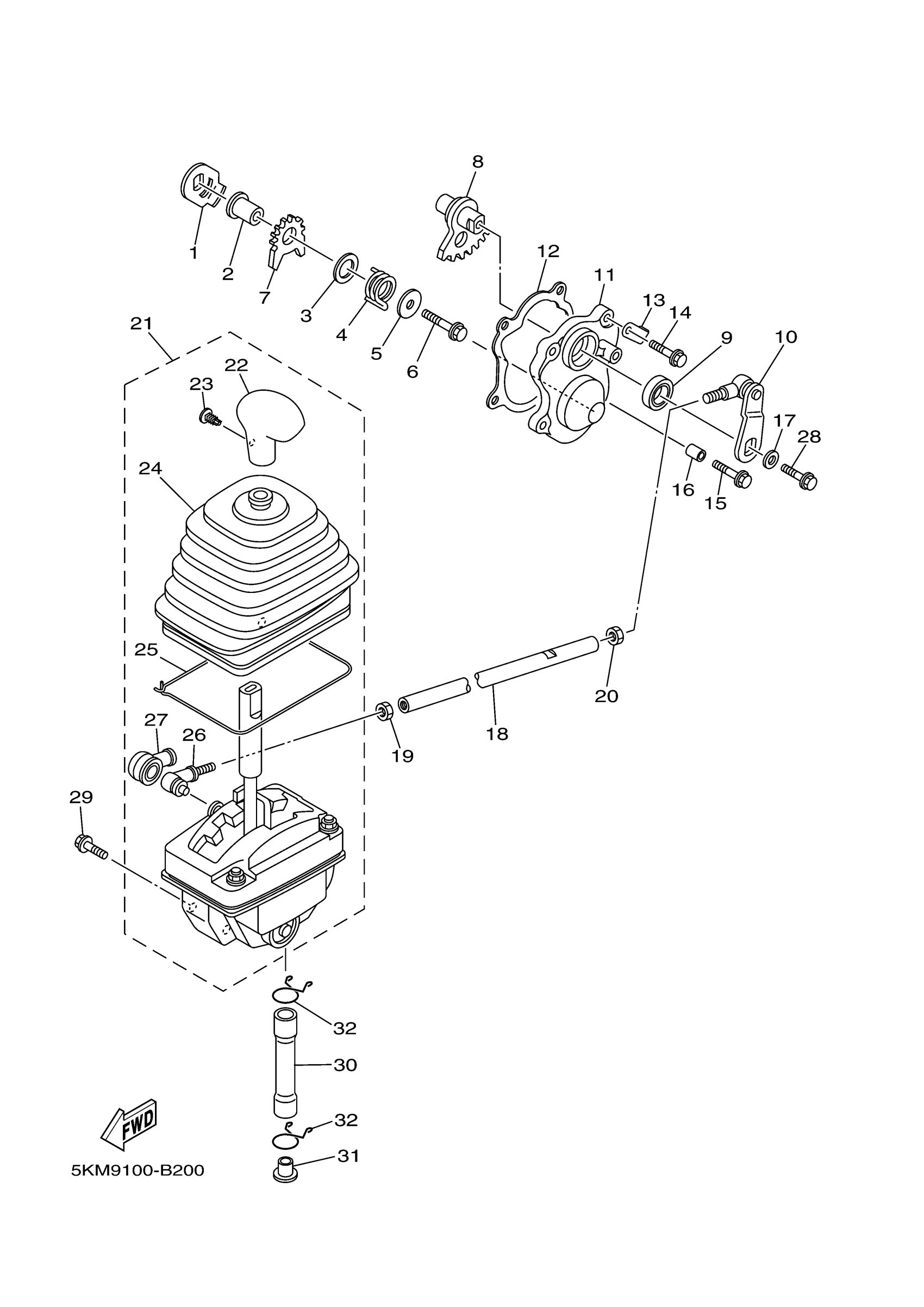

Yamaha YFM660FS (GRIZZLY 660) 5KMH 2004 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

WASHER, PLATE

90201-13013-00

$8.49

4

SPRING, TORSION(1YW)

90508-35764-00

$5.60

5

WASHER, PLATE

90201-06M02-00

Unavailable

6

BOLT, FLANGE

95817-06035-00

$7.49

7

LEVER

5KM-18191-00-00

$24.99

8

SHAFT

5KM-18197-00-00

$80.99

9

OIL SEAL (3X3)

93102-15212-00

$9.49

10

SHIFT GUIDE COMP.

5KM-18104-00-00

$75.99

11

COVER, SHIFT SHAFT

5KM-18129-01-00

Unavailable

12

GASKET, LEVER STOP

5KM-18146-00-00

$14.49

13

CLAMP

90465-10026-00

$8.49

14

. BOLT, FLANGE

95027-06020-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06030-00

$3.98

16

PIN, DOWEL

99530-08012-00

Unavailable

17

WASHER, PLATE

90201-06M02-00

Unavailable

18

ROD, SHIFT

5KM-18115-10-00

Unavailable

19

NUT(1KT)

90170-08358-00

Unavailable

20

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

21

SHIFTER ASSY

5KM-18300-04-00

Unavailable

22

KNOB, SHIFT LEVER

5GH-18174-00-00

Unavailable

23

RIVET(81E)

90269-05055-00

Unavailable

24

BOOT, SEALING

5KM-18131-00-00

Unavailable

25

STOPPER, RUBBER

5GH-18617-00-00

Unavailable

26

JOINT 2

1KT-18157-00-00

Unavailable

27

COVER, DUST

2H9-18154-00-00

Unavailable

28

BOLT, FLANGE

95817-06016-00

Unavailable

29

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

30

HOSE

90446-16001-00

Unavailable

31

PLUG(EU0)

90605-50201-00

Unavailable

32

CLIP (806-24358-00)

90467-15012-00

Unavailable
