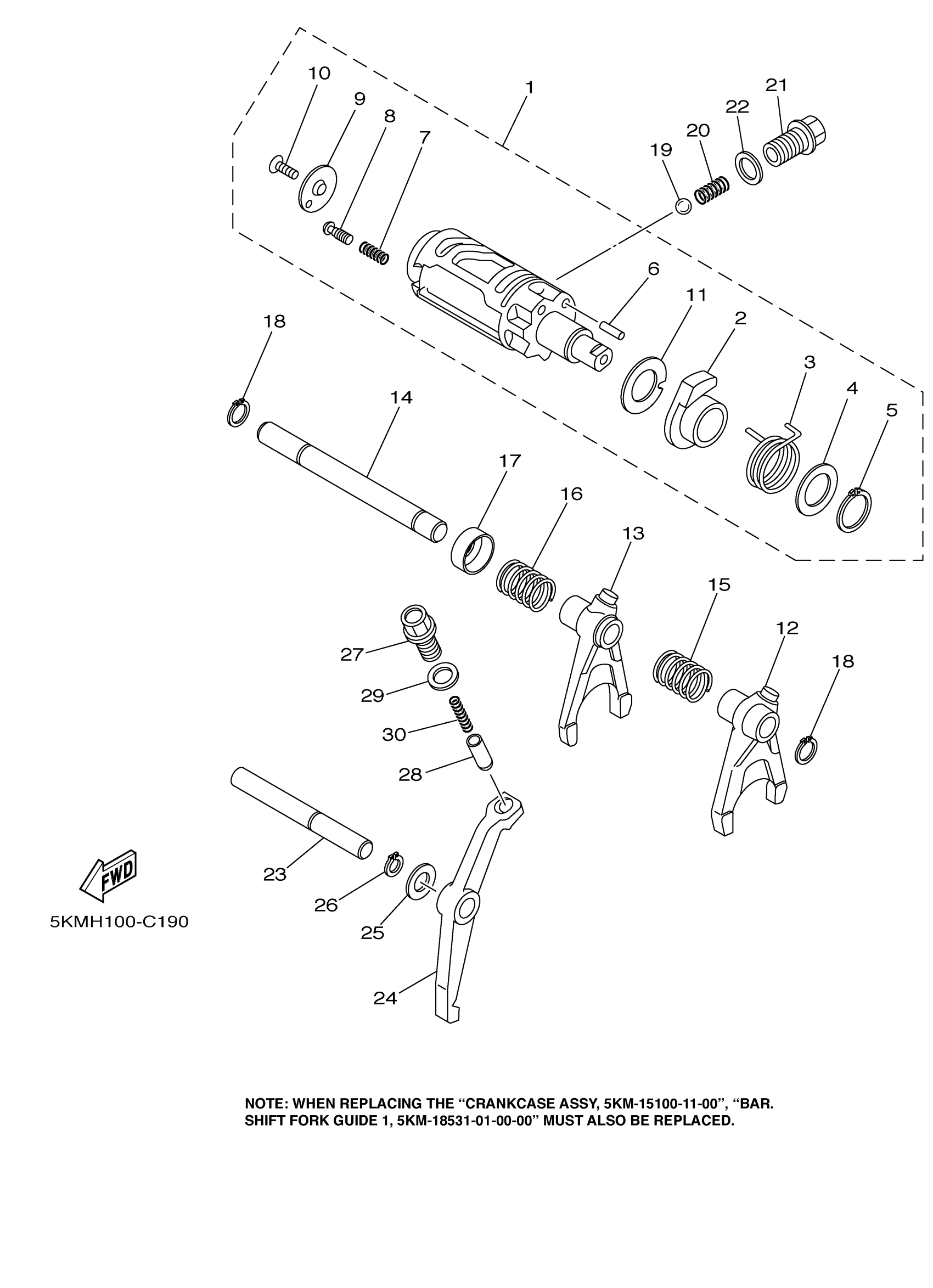

Yamaha YFM660FS (GRIZZLY 660) 5KMH 2004 SHIFT CAM FORK Diagram
#
Description
Price
1
SHIFT CAM ASSY
5KM-18540-02-00
Unavailable
12
FORK, SHIFT 1
5KM-18511-00-00
Unavailable
13
FORK, SHIFT 2
5KM-18512-00-00
Unavailable
14
BAR, SHIFT FORK GUIDE 1
5KM-18531-00-00
Unavailable
14
BAR, SHIFT FORK GUIDE 1
5KM-18531-01-00
Unavailable
15
SPRING, COMPRESSION
90501-12016-00
Unavailable
16
SPRING, COMPRESSION
90501-16002-00
Unavailable
17
CAP, SPRING
5KM-18323-00-00
Unavailable
18
CIRCLIP(10Y)
99009-12400-00
Unavailable
19
BALL
93503-08007-00
Unavailable
20
SPRING, COMPRESSION (465)
90501-10353-00
Unavailable
21
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
22
GASKET(59V)
90430-14194-00
Unavailable
23
SHAFT, SHIFTER
5KM-18318-00-00
Unavailable
24
LEVER, STOPPER
5KM-18148-00-00
Unavailable
25
WASHER, PLATE(55K)
90201-127J6-00
Unavailable
26
CIRCLIP(10Y)
99009-12400-00
Unavailable
27
BOLT
90109-14002-00
Unavailable
28
STOPPER, CAM
1J7-18547-00-00
Unavailable
29
GASKET 256131670000
90430-14043-00
Unavailable
30
SPRING, COMPRESSION
90501-12004-00
Unavailable
