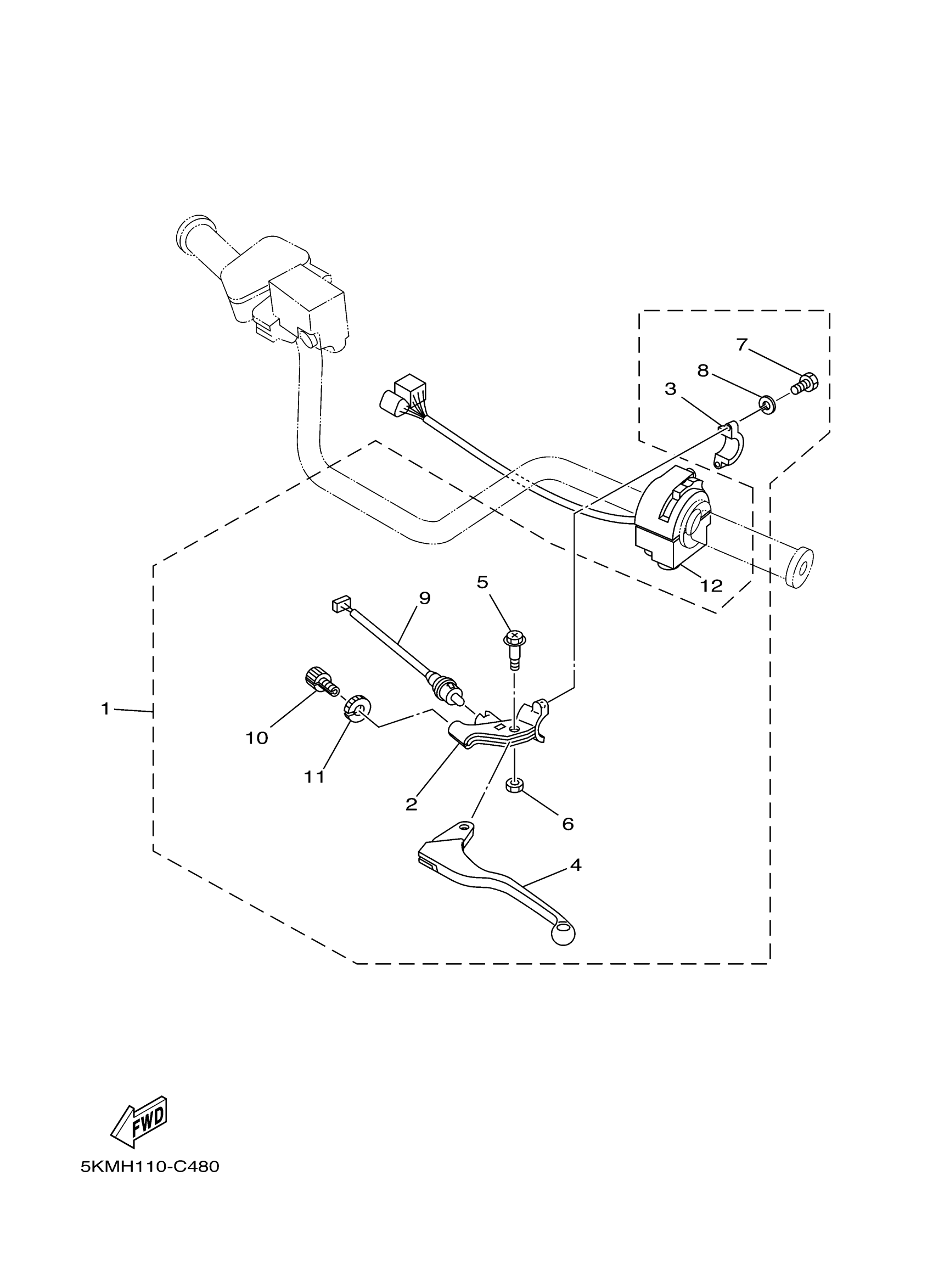

Yamaha YFM660FS (GRIZZLY 660) 5KMH 2004 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

5KM-82910-03-00

Unavailable

2

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

3

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

4

LEVER 1

23X-83912-02-00

$20.03

5

BOLT (2YK1)

90109-06799-00

$4.23

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN

98517-06020-00

$1.79

8

WASHER, SPRING

92907-06100-00

$0.98

9

SWITCH

5KM-82917-00-00

$47.41

10

BOLT

90123-08002-00

$8.57

11

NUT

90179-08030-00

$3.63

12

SWITCH, HANDLE 4

5KM-83972-01-00

Unavailable
