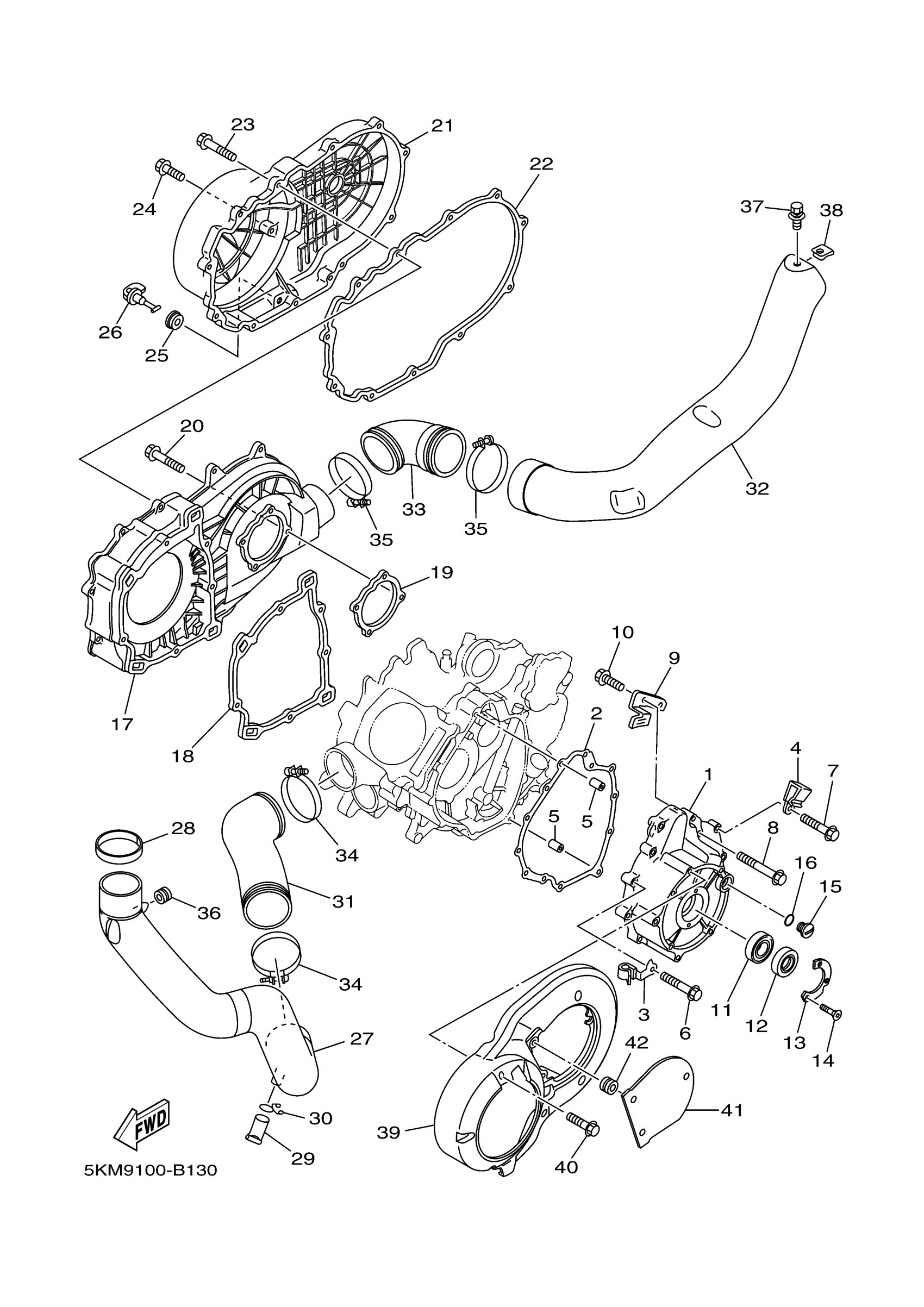

Yamaha YFM660FS (GRIZZLY 660) 5KMH 2004 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5KM-15411-10-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5KM-15451-00-00

$25.99

3

CLAMP(7MX)

90465-08361-00

$8.49

4

CLAMP

90465-05M87-00

Unavailable

5

PIN, DOWEL(2VG)

99530-10116-00

$4.25

6

BOLT, SMALL FLANGE

95027-06030-00

$3.98

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

BOLT, SMALL FLANGE

95027-06040-00

$3.28

9

PLATE

5KM-15113-00-00

Unavailable

10

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

11

BEARING(55X)

93306-07801-00

$55.99

12

OIL SEAL

93102-28476-00

$22.99

13

WASHER, THRUST

21V-15719-00-00

Unavailable

14

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

15

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

16

O-RING (2H9)

93210-14369-00

Unavailable

17

COVER, CRANKCASE 2

5KM-15421-00-00

Unavailable

18

CLUTCH COVER GASKET

5KM-15453-00-00

Unavailable

19

SEAL, CRANKCASE

5KM-15315-00-00

Unavailable

20

BOLT, FLANGE

95817-06030-00

Unavailable

21

COVER, CRANKCASE 3

5KM-15431-00-00

Unavailable

22

SEAL, CRANKCASE

5KM-15379-01-00

Unavailable

23

BOLT, FLANGE

95817-06025-00

Unavailable

24

BOLT, FLANGE

95817-06016-00

Unavailable

25

GROMMET (462)

90480-13018-00

Unavailable

26

PLUG, DRAIN

5KM-15351-00-00

Unavailable

27

DUCT, AIR

5KM-15471-00-00

Unavailable

28

SEAL, PROTECTOR

5KM-15494-00-00

Unavailable

29

PIPE, DRAIN

5BF-1443E-00-00

Unavailable

30

CLIP(62Y)

90467-15M14-00

Unavailable

31

SEAL, AIR DUCT

5KM-15472-10-00

Unavailable

32

DUCT, AIR

5KM-15473-00-00

Unavailable

33

SEAL, AIR DUCT

5KM-15474-00-00

Unavailable

34

HOSE CLAMP ASSY

90450-81001-00

Unavailable

35

CLAMP,HOSE

90460-85135-00

Unavailable

36

GROMMET

90480-13014-00

Unavailable

37

BOLT, WITH WASHER

90119-06152-00

Unavailable

38

NUT, SPRING(4ES)

90183-06069-00

Unavailable

39

COVER 2

5KM-15423-00-00

Unavailable

40

BOLT, FLANGE

95817-06020-00

Unavailable

41

COVER, CARBURETOR

5GH-15413-00-00

Unavailable

42

GROMMET

90480-13014-00

Unavailable
