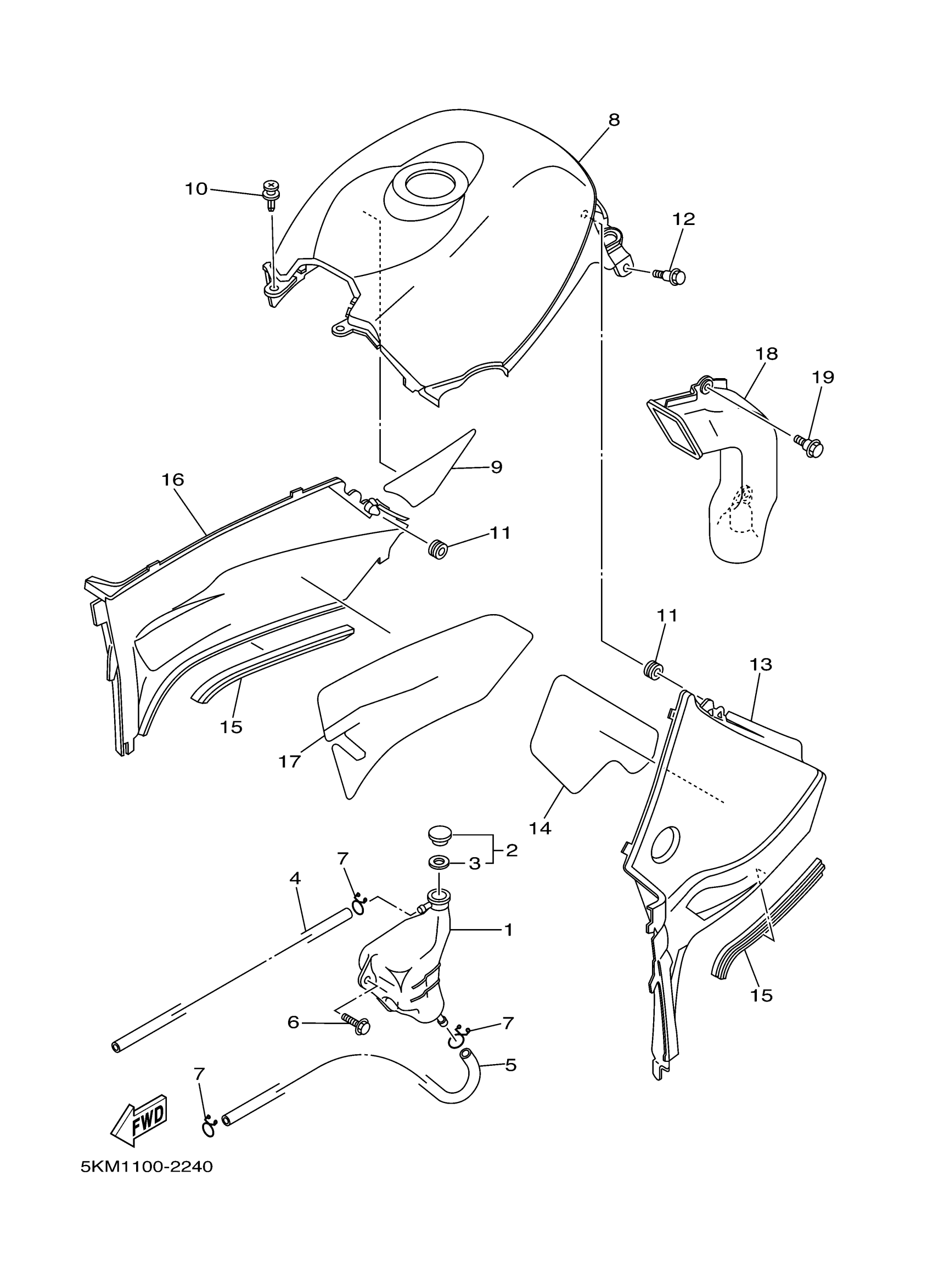

Yamaha YFM660FRGY (GRIZZLY 660 4X4 METALLIC TITANIUM) 5KMD 2003 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

5KM-21871-00-00

$57.99

2

CAP

1AA-21815-00-00

$12.99

3

GASKET

1AA-21874-00-00

$7.99

4

HOSE (L1500)

90445-090F6-00

$31.99

5

HOSE (L1500)

90445-090F6-00

$31.99

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

CLIP 101235600

90467-08003-00

$10.49

8

COVER, TOP (DARK GRAY METALLIC A)

5KM-2171A-E0-P0

Unavailable

9

CLOTH, PROTECTOR

5KM-2174M-10-00

$5.49

10

RIVET(4JH)

90269-07076-00

$7.49

11

GROMMET(4FU)

90480-13567-00

$4.99

12

BOLT(3KJ)

90109-063F1-00

$2.97

13

COVER, SIDE 1

5KM-21711-00-00

Unavailable

14

INSULATOR, SIDE COVER

5KM-2174A-10-00

Unavailable

15

MOLE, SIDE COVER 1

5KM-2171L-00-00

Unavailable

16

COVER, SIDE 2

5KM-21721-00-00

Unavailable

17

INSULATOR, SIDE COVER 2

5KM-2174T-10-00

Unavailable

18

DUCT, AIR

5KM-21557-00-00

Unavailable

19

BOLT(3KJ)

90109-063F1-00

$2.97
