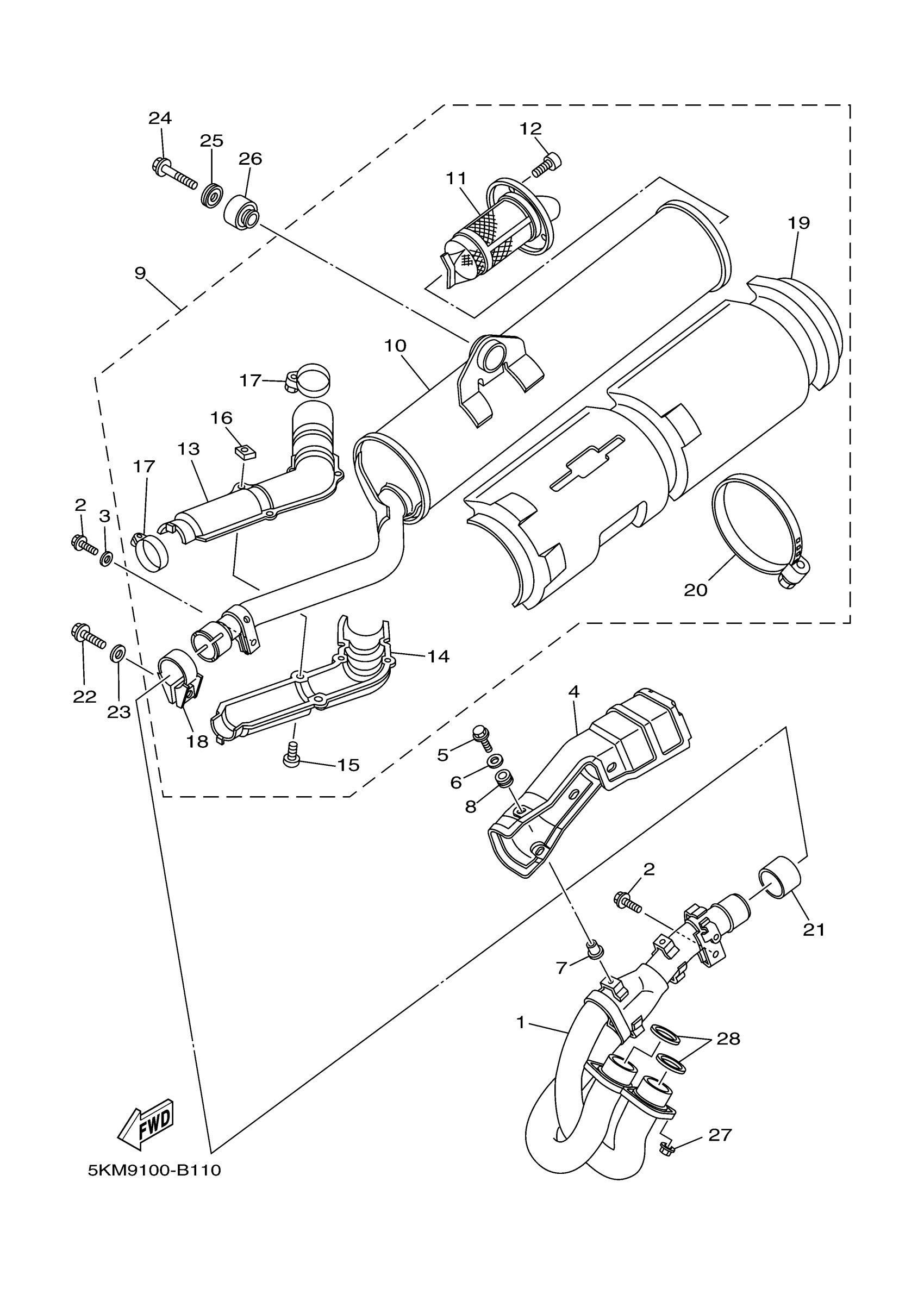

Yamaha YFM660FR (GRIZZLY 660) 5KMA 2003 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5KM-14611-10-00

Unavailable

2

BOLT, FLANGE

95817-06020-00

$3.81

3

WASHER, PLATE (8K2)

90201-06778-00

$4.46

4

PROTECTOR, EXHAUST PIPE

5KM-14628-10-00

Unavailable

5

BOLT, FLANGE

95817-06016-00

$2.75

6

WASHER, PLATE (8K2)

90201-06778-00

$4.46

7

COLLAR(3FC)

90387-061V4-00

$7.49

8

GROMMET

90480-01009-00

$8.49

9

MUFFLER 1

5KM-14711-10-00

$597.99

10

MUFFLER 1

5KM-14721-00-00

Unavailable

11

PIPE, OUTLET

5KM-14752-00-00

Unavailable

12

BOLT,SOCKET

91380-06010-00

$8.49

13

PROTECTOR, MUFFLER 1

5KM-14718-10-00

$178.99

14

PROTECTOR, MUFFLER 2

5KM-14728-10-00

$61.99

15

SCREW, PAN

98507-06010-00

$3.55

16

NUT, SQUARE(1HV)

90173-06015-00

Unavailable

17

HOSE CLAMP ASSY

90450-50001-00

Unavailable

18

BAND, MUFFLER

5KM-14715-00-00

Unavailable

19

. PROTECTOR, MUFFLER 3

5KM-14738-00-00

Unavailable

20

BAND, SILENCER

5KM-14788-00-00

Unavailable

21

GASKET, SILENCER

3YF-14755-00-00

Unavailable

22

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

23

WASHER, PLATE(47X)

90201-086J0-00

Unavailable

24

BOLT, FLANGE

95817-08040-00

Unavailable

25

WASHER (29L)

90209-08249-00

Unavailable

26

DAMPER,FOOTREST

1HP-F7414-00-00

Unavailable

27

NUT (22U)

90179-08410-00

Unavailable

28

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
