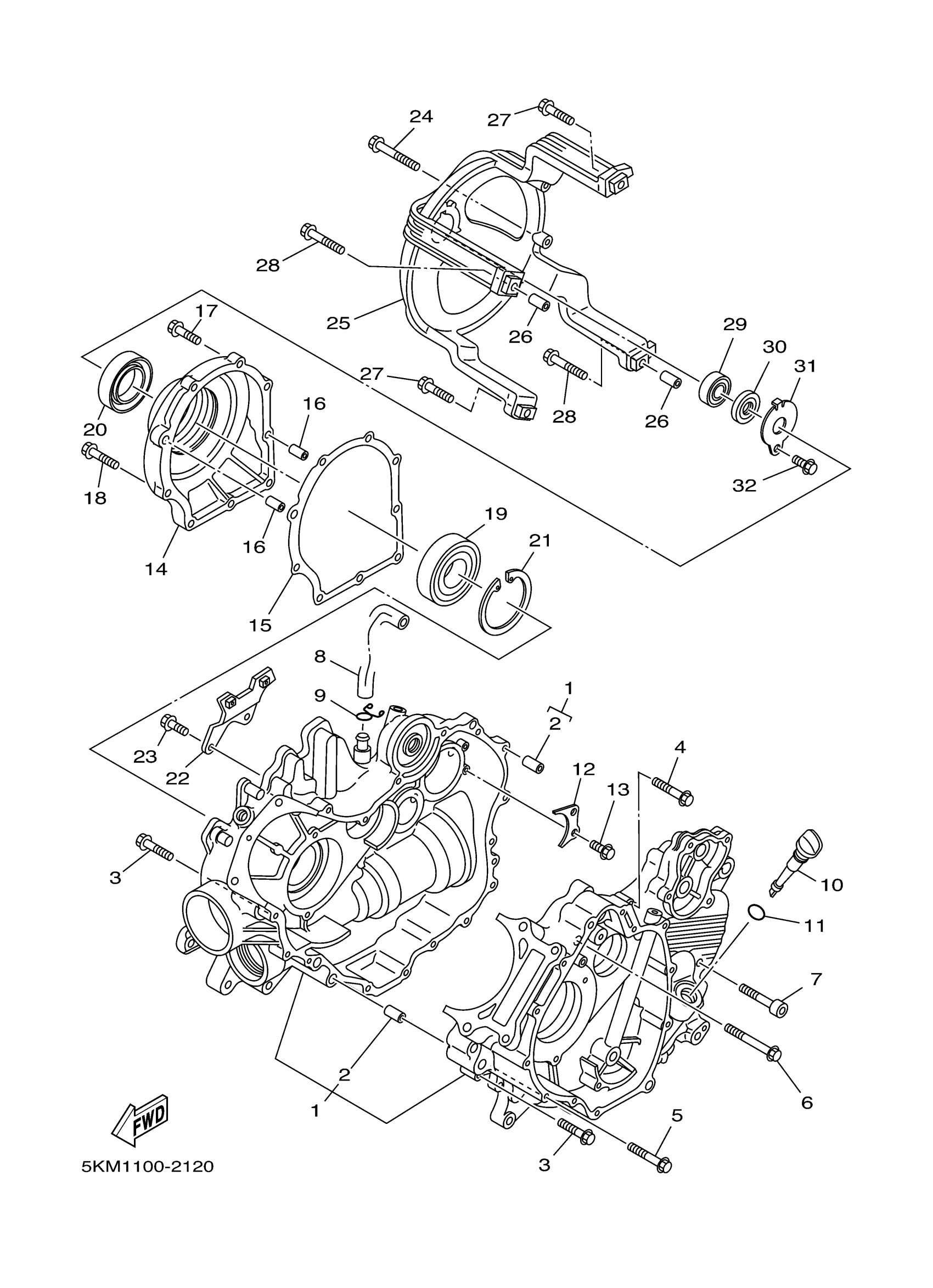

Yamaha YFM660FR (GRIZZLY 660) 5KMA 2003 CRANKCASE Diagram

CRANKCASE ASSY

99999-03456-00

Unavailable

PIN, DOWEL(2VG)

99530-10116-00

$4.25

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06040-00

$3.28

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

BOLT,SOCKET

91317-08040-00

$7.49

PIPE, BREATHER 1

5KM-11166-10-00

$46.99

CLIP (371)

90467-14015-00

$8.49

PLUG, OIL LEVEL

5KM-15362-00-00

Unavailable

O-RING (5Y1)

93210-19522-00

$7.49

PLATE, BEARING COVER

4WV-15388-00-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

HOUSING, BEARING 1

5KM-15163-00-00

$115.99

GASKET, BEARING HOUSING 2

5KM-15463-00-00

$16.49

PIN, DOWEL(2VG)

99530-10116-00

$4.25

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06040-00

$3.28

BEARING

93316-01003-00

Unavailable

OIL SEAL

93102-35004-00

Unavailable

CIRCLIP (70R)

93420-80066-00

Unavailable

BRACKET

5KM-15199-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable

BOLT, FLANGE(7FK)

95827-06050-00

Unavailable

HOUSING, BEARING

5KM-15442-00-00

Unavailable

PIN, DOWEL(2VG)

99530-10116-00

$4.25

BOLT, FLANGE

95817-06030-00

Unavailable

BOLT, FLANGE

95817-06040-00

Unavailable

BEARING(82M)

93306-20117-00

Unavailable

OIL SEAL

93101-12168-00

Unavailable

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable
