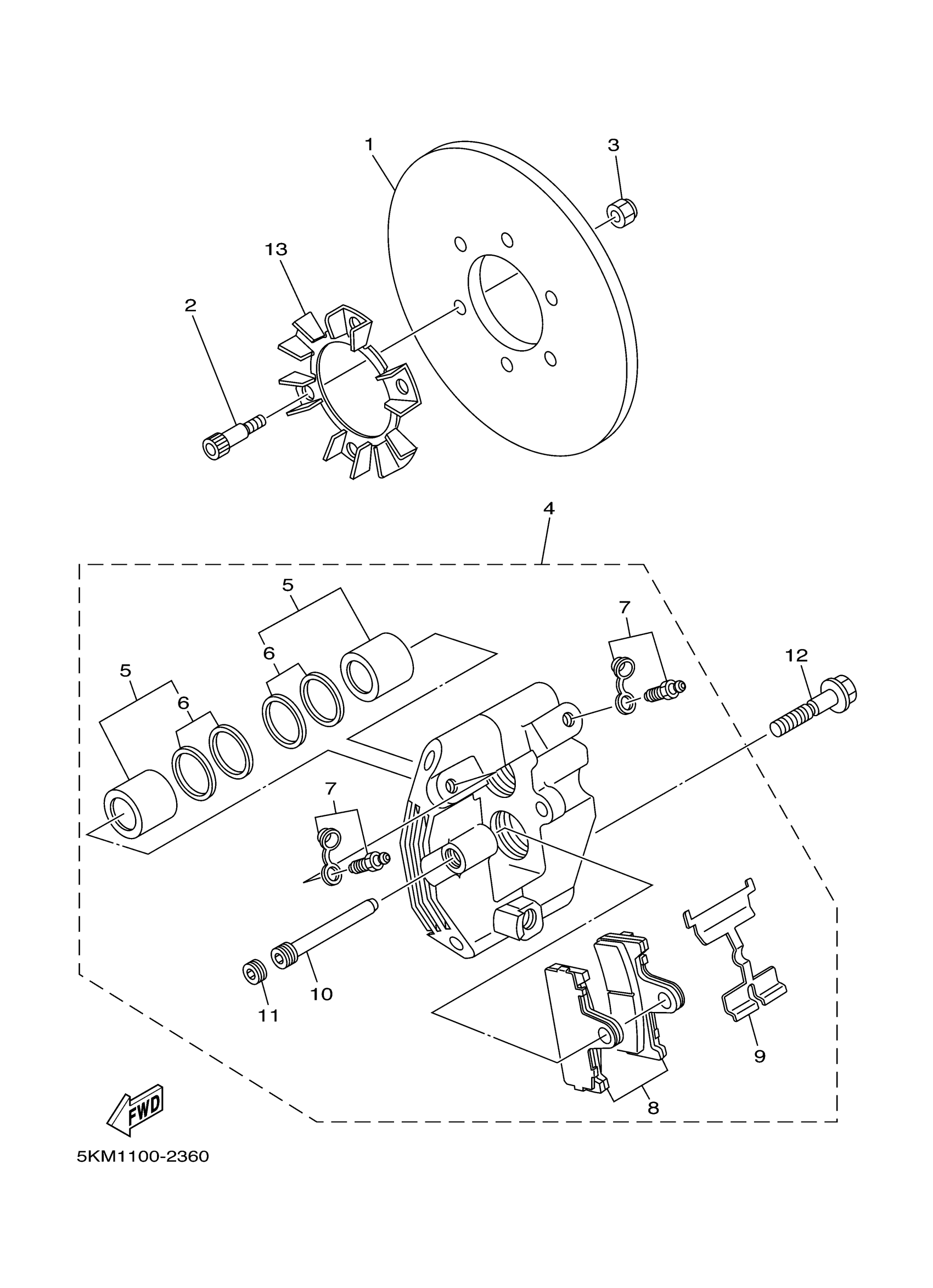

Yamaha YFM660FPS (GRIZZLY 600 METALLIC SILVER) 5KM6 2002 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

5KM-2582V-00-00

$128.99

2

BOLT

90109-06038-00

$5.60

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

CALIPER ASSY, REAR 1

5KM-2580V-01-00

Unavailable

5

PISTON ASSY, CALIPER

5KM-W0057-00-00

$109.99

6

CALIPER SEAL KIT

5KM-W0047-00-00

$33.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT 2

5KM-W0046-01-00

$43.99

9

SUPPORT, PAD

5KM-25919-00-00

$24.99

10

PIN, PAD

8CR-25924-00-00

$14.49

11

BOLT

8CR-25926-00-00

Unavailable

12

BOLT, WASHER BASED(1AR)

90105-10634-00

$10.49

13

PLATE 1

5KM-2539F-00-00

Unavailable
