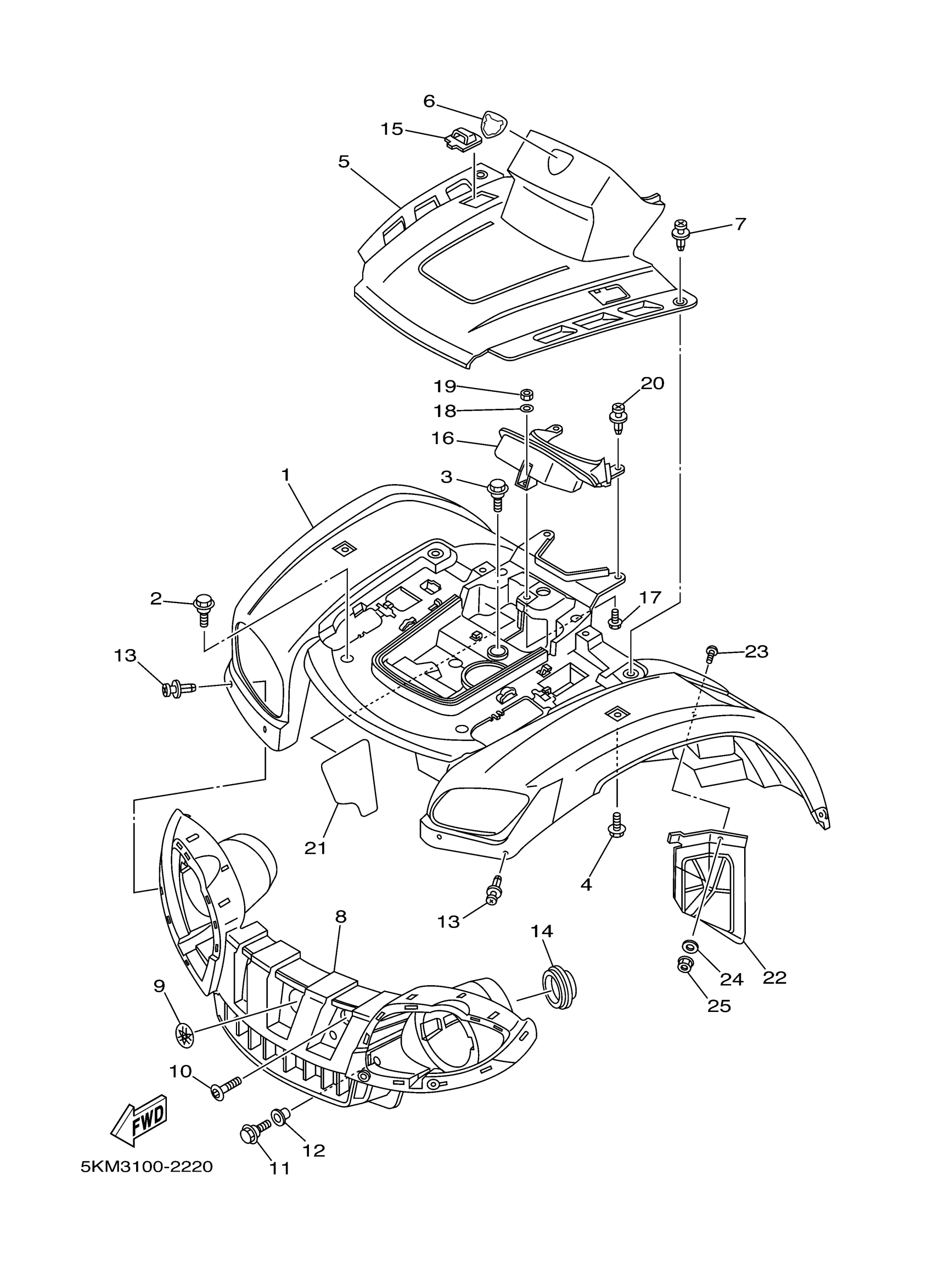

Yamaha YFM660FPS (GRIZZLY 600 METALLIC SILVER) 5KM6 2002 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5KM-W2151-B0-00

Unavailable

2

BOLT(3KJ)

90109-063F1-00

$2.97

3

BOLT(3KJ)

90109-063F1-00

$2.97

4

BOLT, WITH WASHER

90119-06152-00

$7.49

5

PANEL, FRONT

5KM-23391-B0-00

Unavailable

6

EMBLEM 3D

5FE-26232-00-00

Unavailable

7

RIVET

90269-06002-00

$8.49

8

GRILLE, FRONT

5KM-28309-00-00

Unavailable

9

TUNING FORK MARK

5KM-2175B-00-00

$15.49

10

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

$3.76

11

BOLT, FLANGE

95817-06016-00

$2.75

12

COLLAR (8G8)

90387-06648-00

$8.49

13

RIVET

90269-06002-00

$8.49

14

CAP

5GH-28349-00-00

$10.99

15

CAP, SIDE 1

5KM-23338-00-00

$7.99

16

PANEL, CONSOLE 1

5KM-2837L-00-00

Unavailable

17

BOLT(3KJ)

90109-063F5-00

Unavailable

18

WASHER, PLATE 8087752500

90201-07081-00

Unavailable

19

NUT(6TA)

95317-06600-00

Unavailable

20

RIVET

90269-06002-00

$8.49

21

SEAL 1

5KM-21575-00-00

Unavailable

22

PROTECTOR

5KM-2193A-00-00

Unavailable

23

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

24

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

25

NUT, NYLON

95707-05300-00

Unavailable
