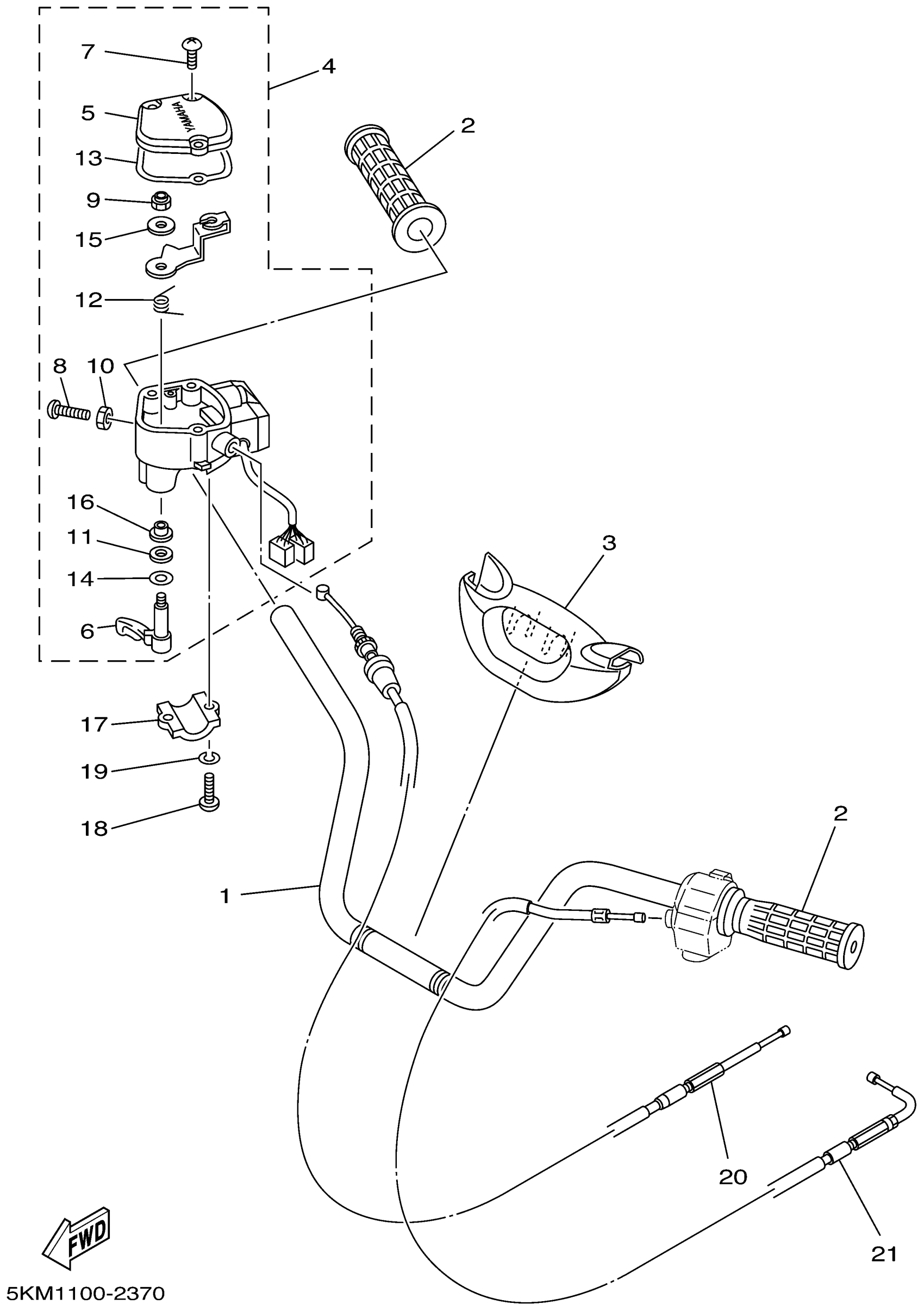

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5KM-26111-20-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

5KM-26124-00-00

Unavailable

4

THROTTLE LEVER ASSY

5KM-26250-04-00

$228.99

5

CAP, GEAR

4KB-2628F-10-00

$30.99

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

COLLAR

1NV-2625K-00-00

Unavailable

17

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

$4.25

19

WASHER(3SX)

92907-05100-00

Unavailable

20

CABLE, THROTTLE 1

5KM-26311-20-00

Unavailable

21

CABLE, STARTER 1

5KM-26331-00-00

Unavailable
