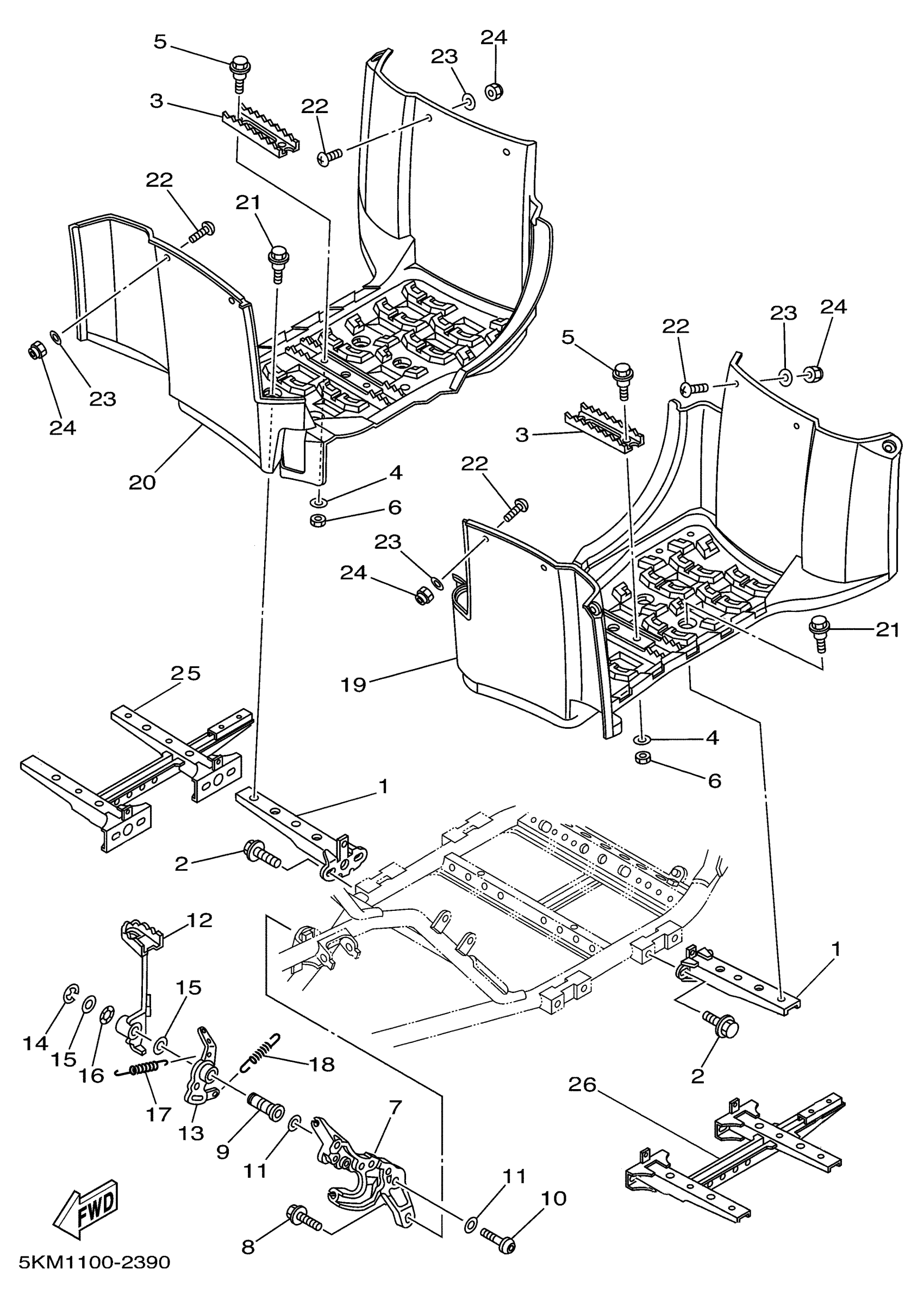

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 STAND FOOTREST Diagram

#

Description
Price

1

BOARD, FOOTREST

5KM-27481-10-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

ARM 1

5GH-2741A-10-00

Unavailable

4

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

5

BOLT(3KJ)

90109-063F5-00

$9.49

6

NUT(6TA)

95317-06600-00

$3.55

7

BRACKET 1

5KM-27263-00-00

Unavailable

8

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

9

SHAFT, BRAKE PEDAL

5KM-27212-10-00

Unavailable

10

BOLT (3XF1)

90110-08220-00

$7.49

11

WASHER, PLATE (3L7)

90201-08784-00

$3.23

12

PEDAL, BRAKE

5KM-27211-10-00

Unavailable

13

LEVER, BRAKE PEDAL

5KM-27252-00-00

Unavailable

14

CIRCLIP (137)

93430-10015-00

$9.49

15

WASHER, PLATE(52G)

90201-144J2-00

$8.49

16

WASHER, WAVE(6T4)

90206-14086-00

Unavailable

17

SPRING, TENSION (29U)

90506-16318-00

Unavailable

18

SPRING, TENSION(3JN)

90506-12441-00

Unavailable

19

COVER 1

5KM-27453-01-00

Unavailable

20

COVER 2

5KM-27463-01-00

Unavailable

21

BOLT(3KJ)

90109-063F1-00

Unavailable

22

SCREW, BINDING (8J0)

90154-05005-00

Unavailable

23

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

24

NUT, NYLON

95707-05300-00

Unavailable

25

BOARD, FOOTREST 2

5KM-27488-10-00

Unavailable

26

BOARD, FOOTREST

5KM-27481-10-00

Unavailable
