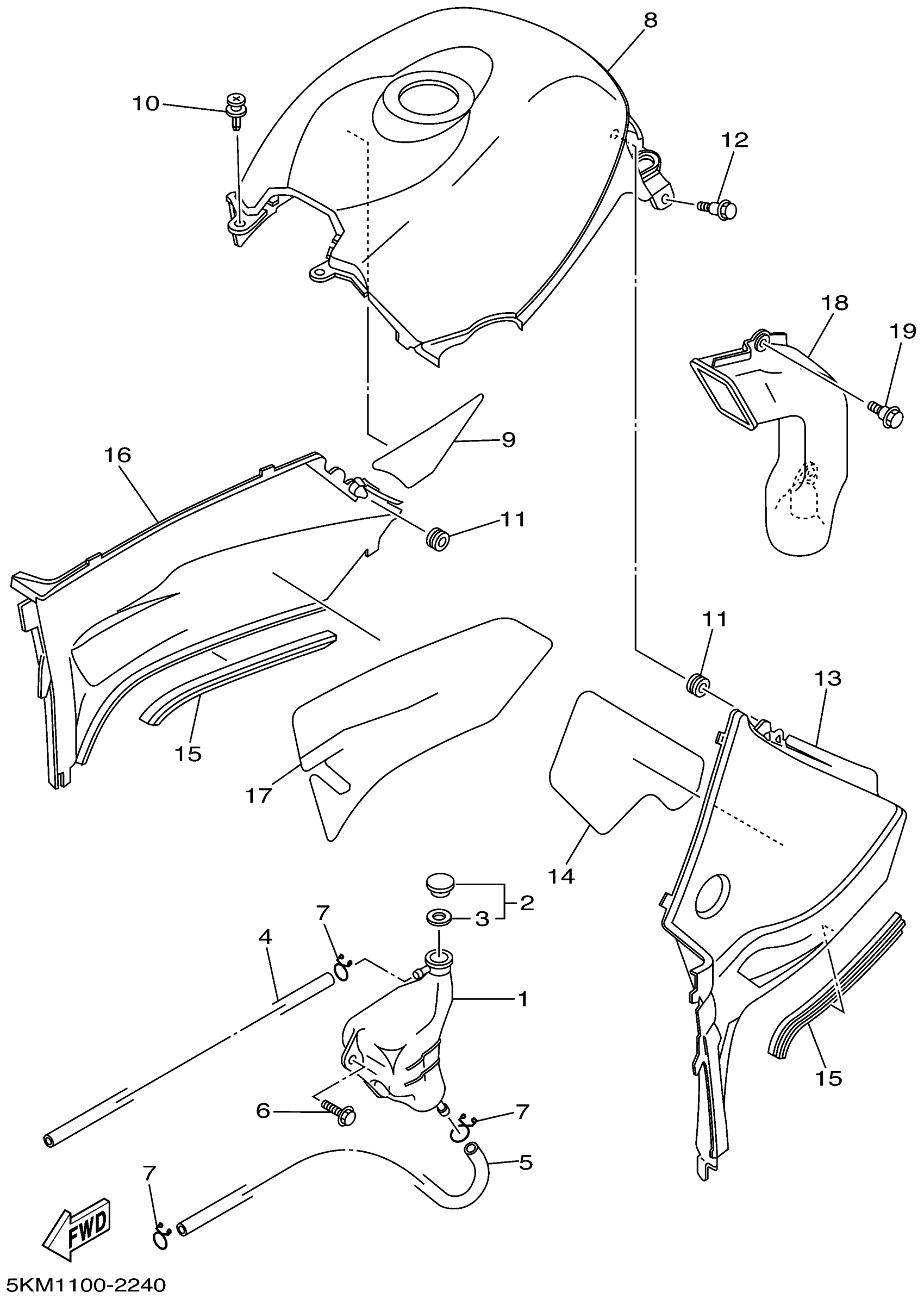

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

5KM-21871-00-00

$45.34

2

CAP

1AA-21815-00-00

$10.36

3

GASKET

1AA-21874-00-00

$5.96

4

HOSE (L1500)

90445-090F6-00

$24.98

5

HOSE (L1500)

90445-090F6-00

$24.98

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

CLIP 101235600

90467-08003-00

$5.88

8

COVER, TOP

5KM-2171A-00-00

$47.80

8

COVER, TOP

5KM-2171A-10-00

$76.18

8

COVER, TOP (DARK GRAYISH YELLOW SOLID 1)

5KM-2171A-20-00

Unavailable

9

CLOTH, PROTECTOR

5KM-2174M-00-00

Unavailable

10

RIVET

90269-06002-00

$5.75

11

GROMMET(4FU)

90480-13567-00

$3.62

12

BOLT(3KJ)

90109-063F1-00

$2.15

13

COVER, SIDE 1

5KM-21711-00-00

Unavailable

14

INSULATOR, SIDE COVER

5KM-2174A-00-00

Unavailable

15

MOLE, SIDE COVER 1

5KM-2171L-00-00

Unavailable

16

COVER, SIDE 2

5KM-21721-00-00

Unavailable

17

INSULATOR, SIDE COVER 2

5KM-2174T-00-00

Unavailable

18

DUCT, AIR

5KM-21557-00-00

Unavailable

19

BOLT(3KJ)

90109-063F1-00

$2.15
