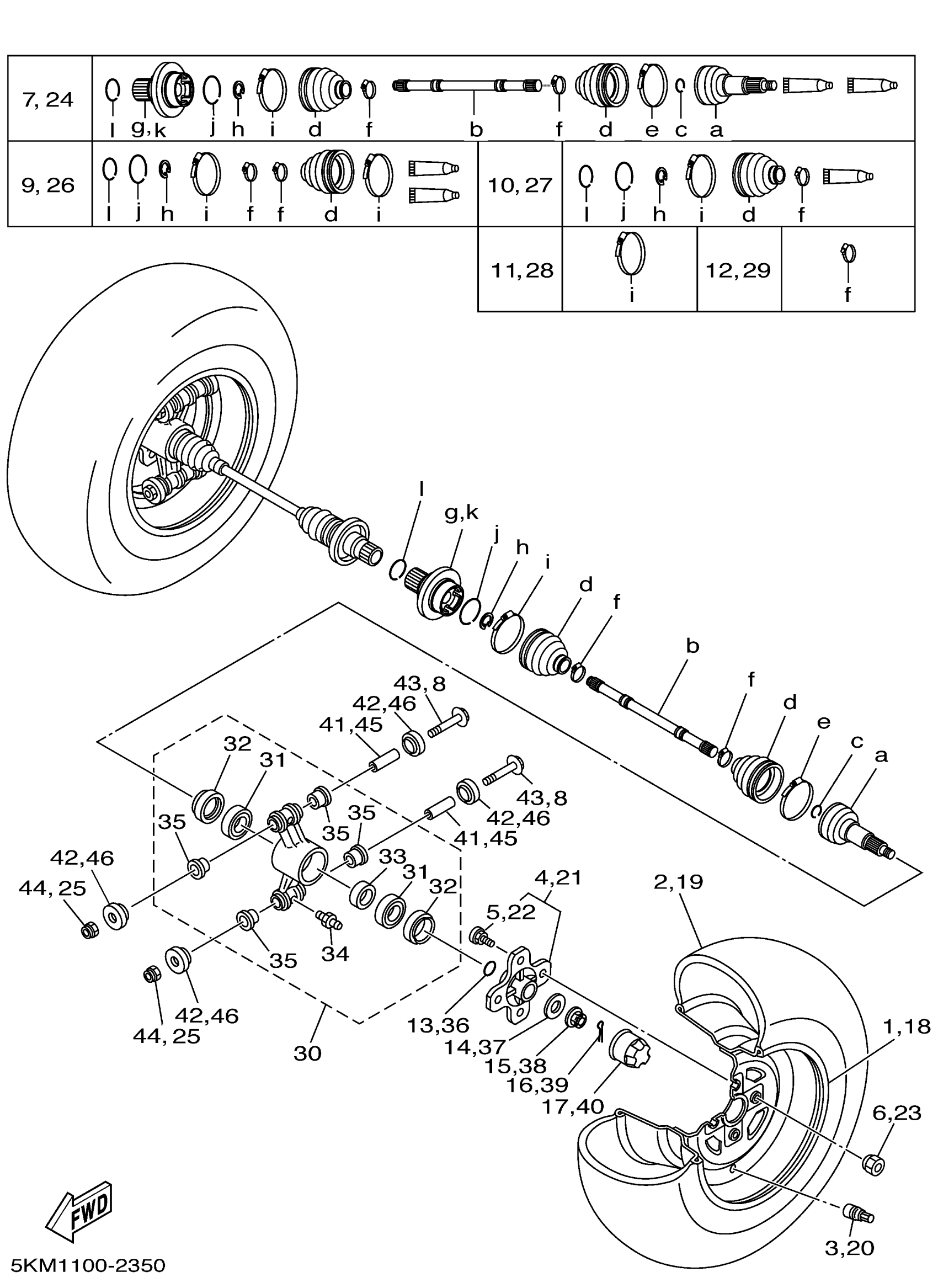

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 REAR WHEEL Diagram
#
Description
Price
1
REAR WHEEL COMP.
5KM-25390-09-00
Unavailable
2
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
7
BALL JOINT SET
5KM-2531H-09-00
Unavailable
11
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
12
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
16
PIN, COTTER
91490-30030-00
Unavailable
17
CAP, WHEEL
5GT-2512A-00-00
Unavailable
18
REAR WHEEL COMP.
5KM-25390-09-00
Unavailable
19
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
24
REAR DRIVE SHAFT ASSY
5KM-253B0-09-00
Unavailable
25
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
28
BOOT BAND (BALL JOINT)
4WV-2511G-00-00
Unavailable
29
BOOT BAND (SMALL)
4WV-2512G-00-00
Unavailable
30
REAR KNUCKLE ASSY
5KM-2530F-00-00
Unavailable
31
BEARING
93306-00615-00
Unavailable
32
OIL SEAL
93106-38047-00
Unavailable
33
COLLAR, WHEEL
5KM-25377-00-00
Unavailable
34
NIPPLE, GREASE
93700-06M03-00
Unavailable
35
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
39
PIN, COTTER
91490-30030-00
Unavailable
40
CAP, WHEEL
5GT-2512A-00-00
Unavailable
41
SPACER
5KM-23448-00-00
Unavailable
42
COVER, THRUST 1
3JN-23517-00-00
Unavailable
44
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
45
SPACER
5KM-23448-00-00
Unavailable
46
COVER, THRUST 1
3JN-23517-00-00
Unavailable
