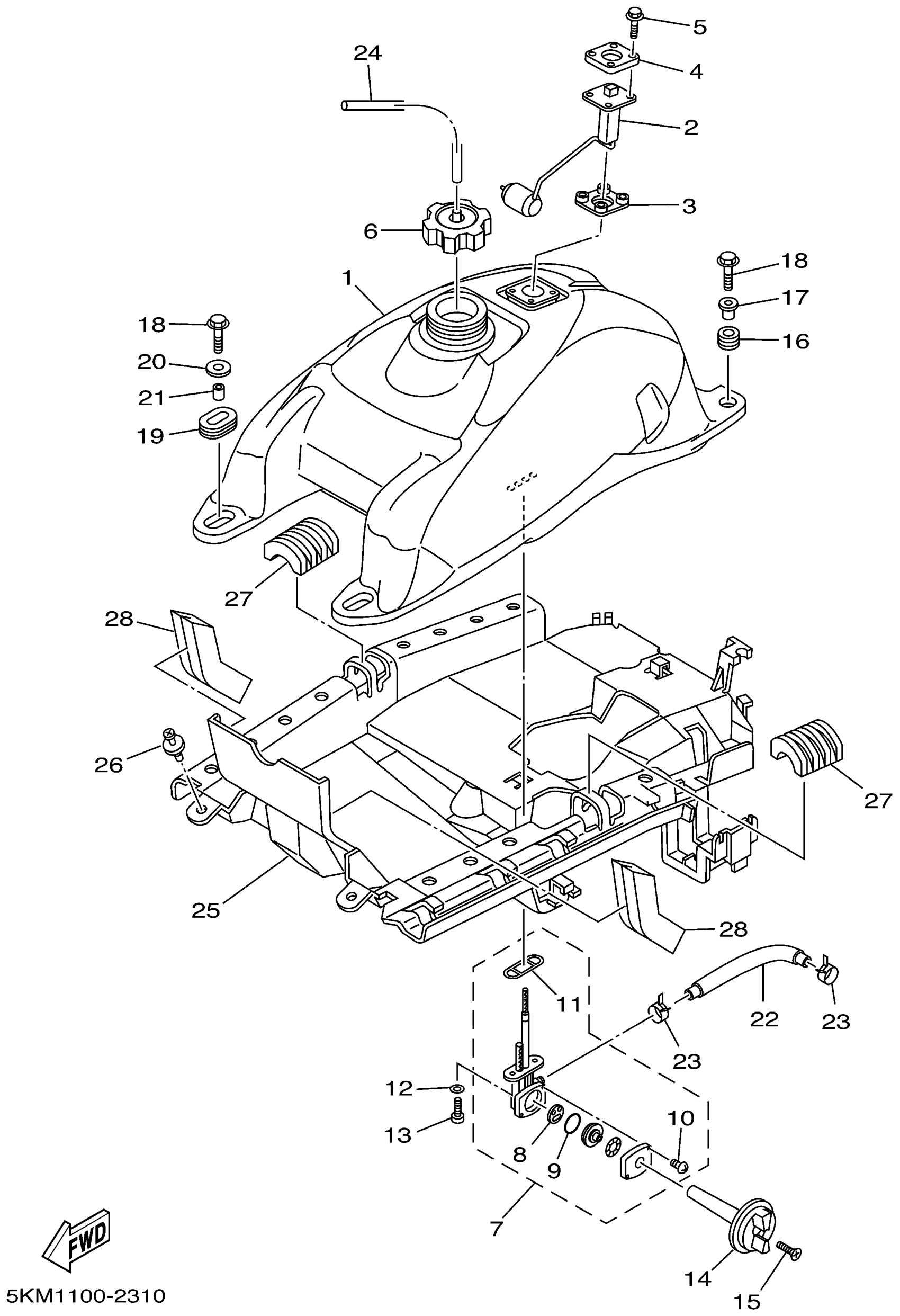

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5KM-24110-00-00

Unavailable

2

SENDER UNIT ASSY, FUEL METER

5KM-85752-00-00

$76.99

3

GASKET, SENDER UNIT

4US-85753-00-00

$7.99

4

RETAINER

2JG-85757-00-00

Unavailable

5

BOLT, WITH WASHER

90119-05071-00

$8.49

6

CAP ASSY

5KM-24610-00-00

$61.99

7

FUEL COCK ASSY 1

5KM-24500-10-00

$59.99

8

VALVE PACKING

3AC-24523-00-00

$12.99

9

SEAL, COCK

3AJ-24534-01-00

$10.99

10

SCREW, PAN HEAD

98507-03014-00

Unavailable

11

O-RING

4X8-24512-00-00

$8.99

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

SCREW 256241430000

90149-06011-00

$5.60

14

LEVER,COCK

1NS-F4524-00-00

$8.99

15

SCREW, FLAT HEAD(3HH)

98707-04018-00

$2.18

16

GROMMET (4V1)

90480-18290-00

Unavailable

17

COLLAR (36R)

90387-066J1-00

Unavailable

18

BOLT, FLANGE

95817-06025-00

Unavailable

19

GROMMET(38W)

90480-01400-00

Unavailable

20

WASHER, PLATE

90201-06090-00

Unavailable

21

COLLAR (1T2)

90387-07598-00

Unavailable

22

PIPE, FUEL 1

5KM-24311-00-00

Unavailable

23

CLIP (7K7)

90467-11044-00

Unavailable

24

HOSE (L600)

90445-083J5-00

Unavailable

25

DAMPER, PLATE 1

5KM-2414H-00-00

Unavailable

26

RIVET

90269-06002-00

Unavailable

27

DAMPER, LOCATING 1

5KM-24181-00-00

Unavailable

28

DAMPER, LOCATING 2

5KM-24182-00-00

Unavailable
