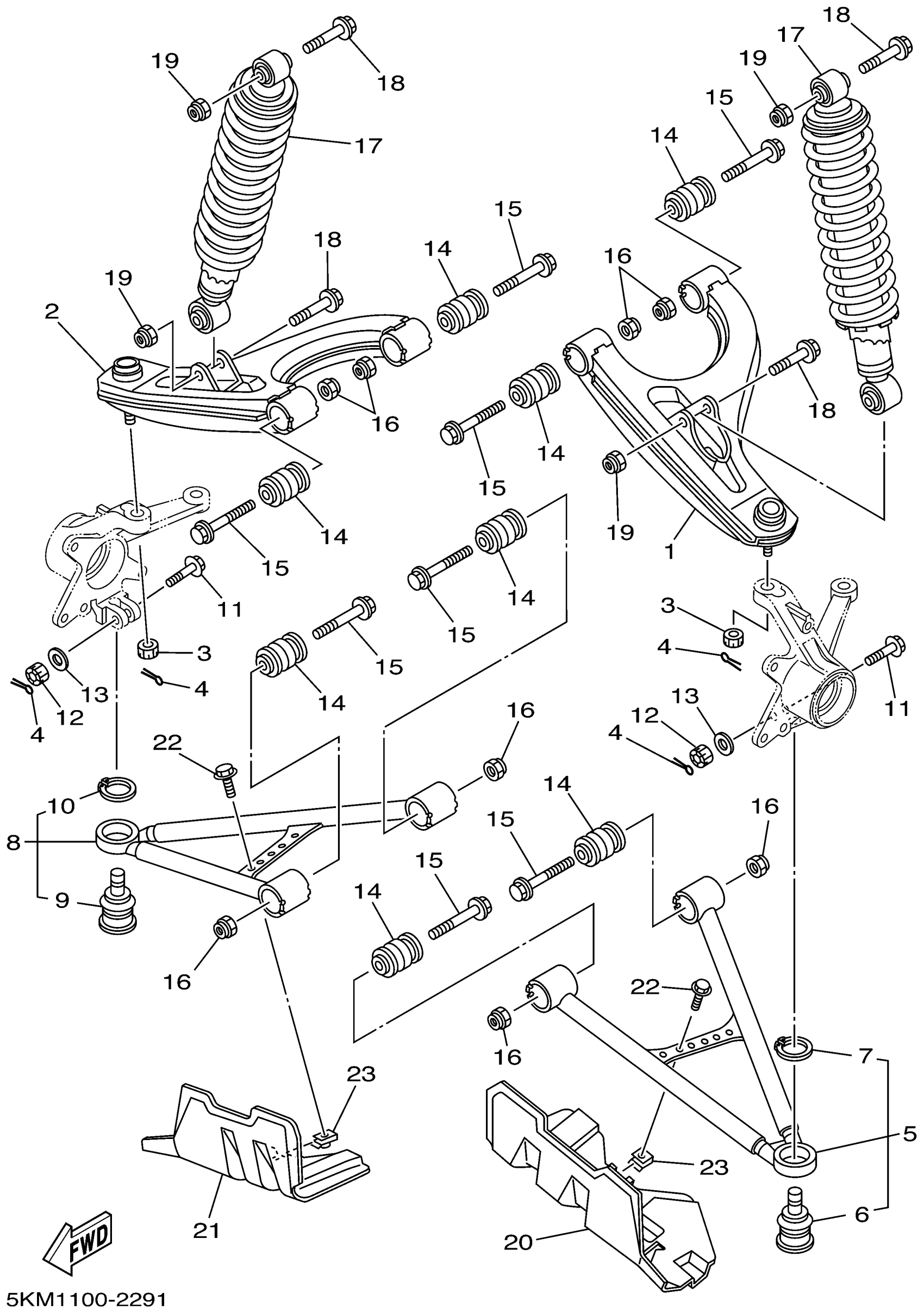

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

5KM-23540-00-00

Unavailable

2

FRONT UPPER ARM COMP. (RIGHT)

5KM-23550-00-00

Unavailable

3

NUT, CASTLE

90171-10001-00

$7.49

4

PIN, COTTER

91490-20025-00

$1.99

5

FRONT LOWER ARM COMP. (LEFT)

5KM-23570-00-00

Unavailable

6

BALL JOINT 2

5KM-23579-00-00

$98.99

7

CIRCLIP(4A6)

99009-30400-00

$8.49

8

FRONT LOWER ARM COMP. (RIGHT)

5KM-23580-00-00

Unavailable

9

BALL JOINT 2

5KM-23579-00-00

$98.99

10

CIRCLIP(4A6)

99009-30400-00

$8.49

11

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

12

NUT(6TD)

95337-10600-00

$9.49

13

WASHER (7A9)

90201-100F7-00

$9.49

14

BUSH

5KM-23526-00-00

$19.99

15

BOLT, WASHER BASED (39E)

90105-10286-00

$8.49

16

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

17

SHOCK ABSORBER ASSY

5KM-23350-20-00

Unavailable

18

BOLT, WASHER BASED(59V)

90105-10388-00

Unavailable

19

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

20

COVER, LOWER 1

5KM-23123-00-00

Unavailable

21

COVER, LOWER 2

5KM-23133-00-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

NUT, SPRING(4ES)

90183-06069-00

Unavailable
