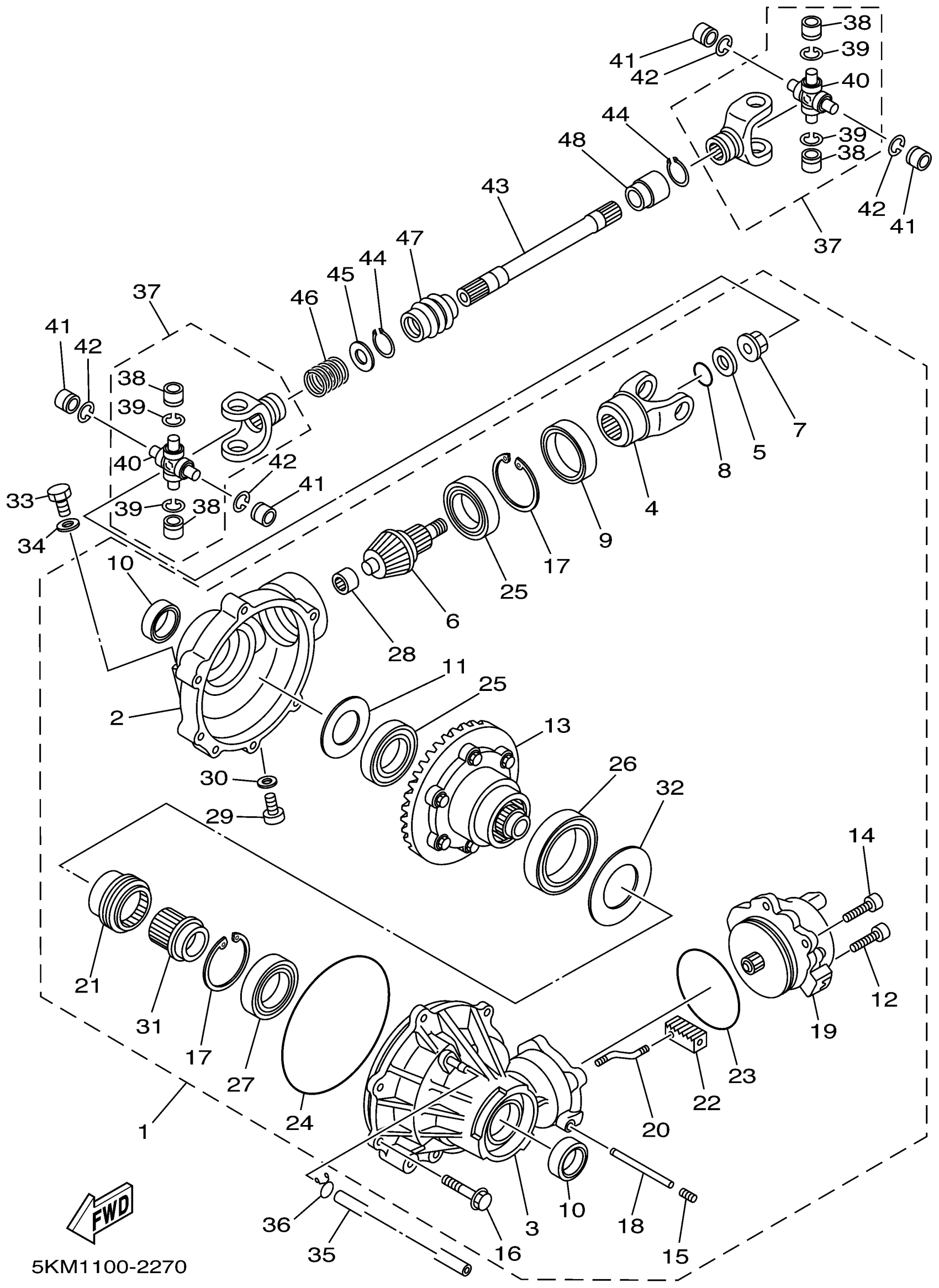

Yamaha YFM660FP (GRIZZLY 660) 5KM1 2002 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE GEAR CASE COMP.
5KM-46160-07-00
Unavailable
3
HOUSING, BEARING 2
5KM-46162-00-00
Unavailable
4
YOKE, JOINT 2
5KM-46146-00-00
Unavailable
6
PPINION, DRIVE
99999-03390-00
Unavailable
7
NUT 1
4WV-46145-00-00
Unavailable
11
SHIM, THRUST
4WV-46119-51-00
Unavailable
11
. SHIM, THRUST (15T)
4WV-46119-60-00
Unavailable
11
. SHIM, THRUST (20T)
4WV-46119-70-00
Unavailable
11
. SHIM, THRUST (25T)
4WV-46119-80-00
Unavailable
12
BOLT 1
5KM-46155-00-00
Unavailable
13
LIMITED SLIP DIFF. ASSY KIT
99999-04060-00
Unavailable
14
BOLT, SOCKET
91317-08020-00
Unavailable
15
BOLT, SET
90113-08004-00
Unavailable
16
BOLT 3
4WV-46159-00-00
Unavailable
17
RING,HOLE SNAP 2
4WV-46143-00-00
Unavailable
18
SHAFT
5KM-42752-00-00
Unavailable
19
SERVO MOTOR COMP
5KM-4616A-02-00
Unavailable
20
FORK, SHIFT 4
5KM-18514-00-00
Unavailable
21
CLUTCH,DRIVEN
5KM-46441-00-00
Unavailable
22
. SHAFT 2
5KM-18319-00-00
Unavailable
23
O-RING
93210-82001-00
Unavailable
24
O-RING
93211-40040-00
Unavailable
25
BEARING
93306-00709-00
Unavailable
26
BRG,R-B 6912 85MM 189G NK
93306-91201-00
Unavailable
27
BEARING
93316-00702-00
Unavailable
28
BEARING 4
4WV-46167-00-00
Unavailable
29
PLUG, STRIGHT SCREW(5GH1)
90340-10001-00
Unavailable
30
GASKET
90430-10003-00
Unavailable
31
ADAPTER
5KM-46451-00-00
Unavailable
32
SHIM, THRUST
5KM-46119-01-00
Unavailable
32
SHIM, THRUST
5KM-46119-11-00
Unavailable
32
SHIM, THRUST
5KM-46119-21-00
Unavailable
32
SHIM, THRUST
5KM-46119-31-00
Unavailable
32
SHIM, THRUST
5KM-46119-41-00
Unavailable
32
SHIM, THRUST
5KM-46119-51-00
Unavailable
32
SHIM, THRUST
5KM-46119-61-00
Unavailable
33
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
34
GASKET
214-11198-01-00
Unavailable
35
HOSE (L1050)
90445-072G8-00
Unavailable
36
CLIP (1J7)
90467-07029-00
Unavailable
37
CROSS JOINT COMP. 2
5KM-46107-00-00
Unavailable
38
BEARING
93399-99948-00
Unavailable
39
CIRCLIP (4X7)
93440-20088-00
Unavailable
40
SPIDER
5GT-46187-00-00
Unavailable
41
BEARING
93399-99948-00
Unavailable
42
CIRCLIP (4X7)
93440-20088-00
Unavailable
43
SHAFT, DRIVE 2
5KM-46173-00-00
Unavailable
44
CIRCLIP(1EY)
99009-19400-00
Unavailable
45
WASHER PLATE 132172160000
90201-20266-00
Unavailable
46
SPRING, COMPRESSION
90501-235L9-00
Unavailable
47
SEAL 1
5GT-46136-00-00
Unavailable
48
SEAL 2
5GT-46137-00-00
Unavailable
