Description

Price

1

SHAFT, SECONDARY

5KM-17681-10-00

Unavailable

2

BEARING (7X9)

93306-20327-00

$38.99

3

BEARING(2HR)

93306-00612-00

$47.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING

93210-26001-00

$5.60

6

OIL SEAL

93102-42004-00

$30.99

7

DRIVE AXLE ASSY

5KM-17402-01-00

Unavailable

8

WASHER PLATE 168171160000

90201-20278-00

$10.49

9

. BEARING

93310-420F2-00

Unavailable

10

SPROCKET, DRIVEN

5KM-17453-00-00

Unavailable

11

WASHER PLATE 168171160000

90201-20278-00

$10.49

12

CIRCLIP (525)

93410-20038-00

$3.76

13

STOPPER

5KM-17473-00-00

$64.99

14

CIRCLIP (525)

93410-20038-00

$3.76

15

GEAR, MIDDLE DRIVE (21T)

5UG-17582-00-00

Unavailable

16

COLLAR(1UX)

90387-250R3-00

Unavailable

17

GEAR, HIGH WHEEL

5KM-17223-10-00

Unavailable

18

WASHER 434172160000

90209-22082-00

Unavailable

19

CIRCLIP (4L0)

93440-25084-00

Unavailable

20

CLUTCH, DOG

5KM-17285-00-00

Unavailable

21

GEAR, LOW WHEEL

5UG-17233-00-00

Unavailable

22

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

23

BRG, R-B (7H4)

93306-20211-00

Unavailable

24

BEARING (30X)

93306-20332-00

Unavailable

25

CHAIN

94591-54034-00

Unavailable

26

SHAFT

5KM-17523-10-00

Unavailable

27

CIRCLIP (4L0)

93440-25084-00

Unavailable

28

GEAR, MIDDLE DRIVEN

5UG-17583-00-00

Unavailable

29

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

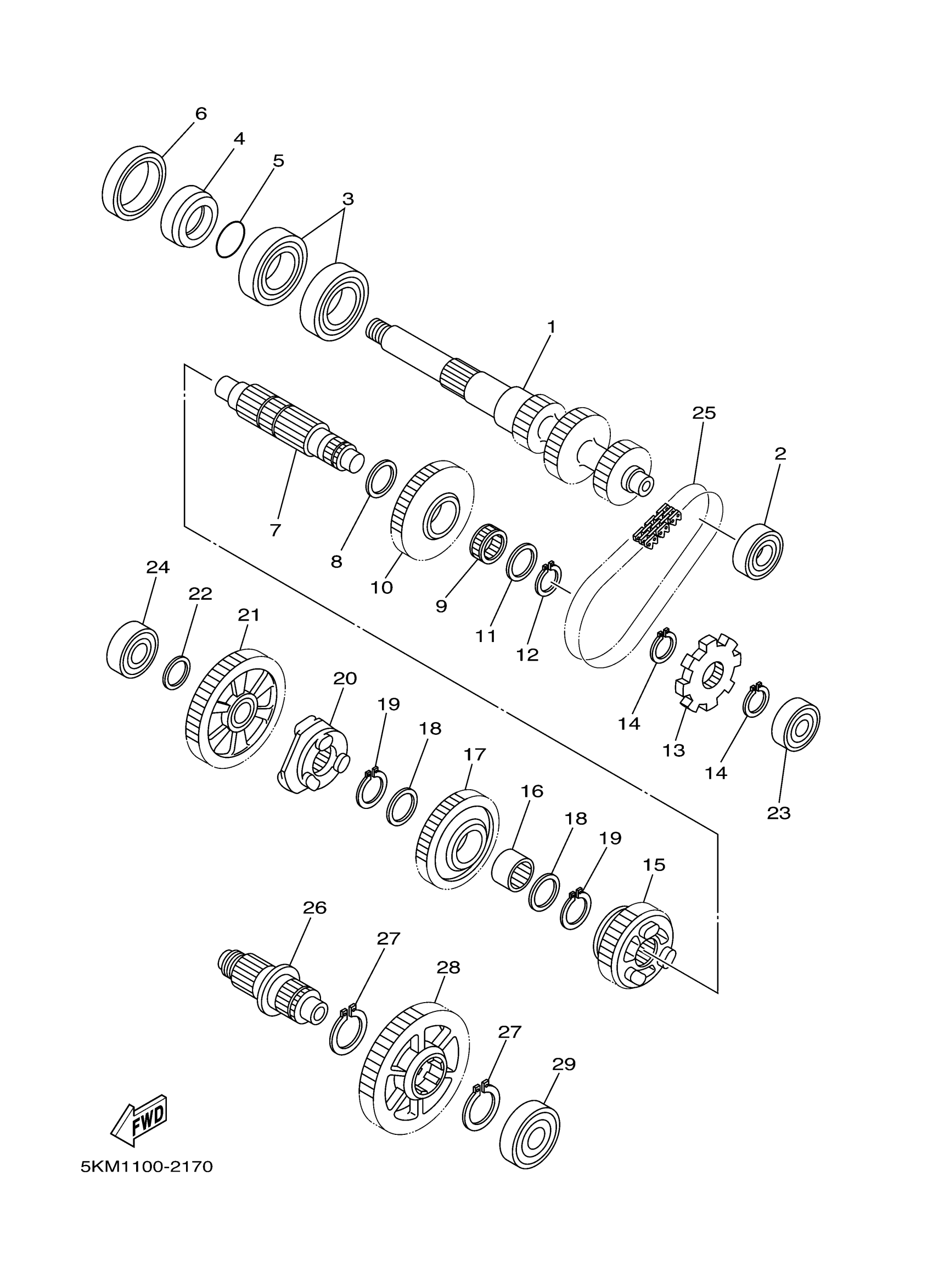

Yamaha YFM660FLES (GRIZZLY 660 AUTO 4X4 WETLANDYFM660FLES) 5KMP 2004 TRANSMISSION Diagram

SHAFT, SECONDARY

BEARING (7X9)

BEARING(2HR)

COLLAR

O-RING

OIL SEAL

DRIVE AXLE ASSY

WASHER PLATE 168171160000

. BEARING

SPROCKET, DRIVEN

WASHER PLATE 168171160000

CIRCLIP (525)

STOPPER

CIRCLIP (525)

GEAR, MIDDLE DRIVE (21T)

COLLAR(1UX)

GEAR, HIGH WHEEL

WASHER 434172160000

CIRCLIP (4L0)

CLUTCH, DOG

GEAR, LOW WHEEL

WASHER, PLATE (30X)

BRG, R-B (7H4)

BEARING (30X)

CHAIN

SHAFT

CIRCLIP (4L0)

GEAR, MIDDLE DRIVEN

BRG,R-B 6303 47MM 115G NK
