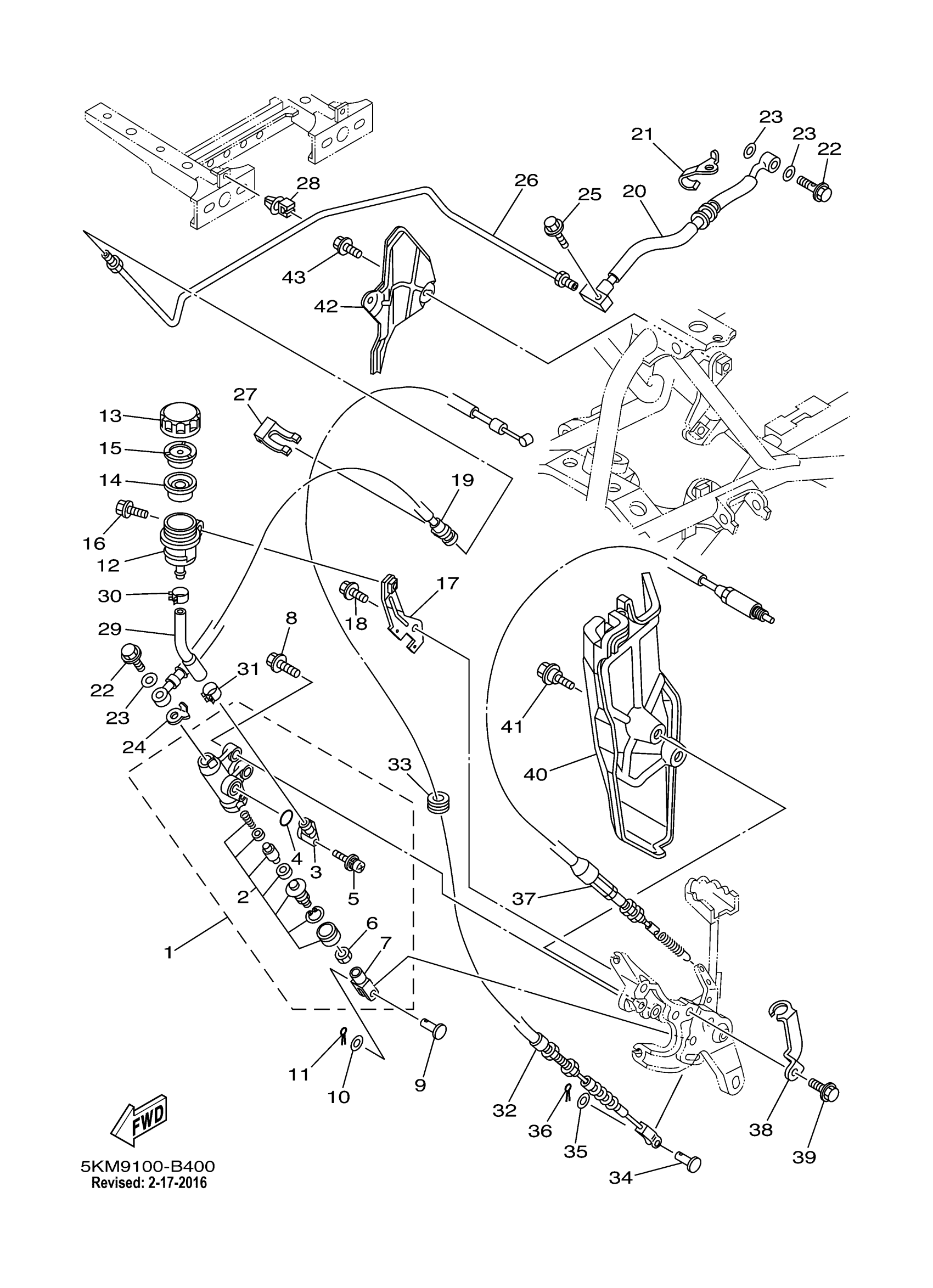

Yamaha YFM660FLES (GRIZZLY 660 AUTO 4X4 WETLANDYFM660FLES) 5KMP 2004 REAR MASTER CYLINDER Diagram

RR. MASTER CYLINDER ASSY.

5KM-2583V-00-00

$227.99

CYLINDER KIT, MASTER

5BE-W0042-00-00

$85.99

JOINT

31A-2582A-50-00

Unavailable

O-RING (22U)

93210-15566-00

$7.49

SCREW, WITH WASHER

3GM-2589H-00-00

$7.99

NUT, HEXAGON SMALL

95317-08700-00

$9.49

JOINT

2YK-27222-00-00

$21.99

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

PIN W/HOLE 307181180000

90240-08013-00

$8.49

WASHER, PLATE 1562722600

90201-08083-00

$9.49

PIN, COTTER

91490-16020-00

Unavailable

TANK, RESERVOIR

5JJ-25894-01-00

$41.99

CAP, RESERVOIR

3XP-25852-50-00

$22.99

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

BOLT, FLANGE

95817-06012-00

Unavailable

BRACKET, RESERVER

5KM-2133G-10-00

Unavailable

BOLT, FLANGE

95817-06008-00

Unavailable

HOSE, BRAKE

5KM-25874-11-00

Unavailable

HOSE, BRAKE 4

5KM-2581J-20-00

Unavailable

HOLDER, BRAKE HOSE

5KM-25886-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable

WASHER, LOCK

5GH-25844-00-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

PIPE, BRAKE 2

5KM-25882-10-00

Unavailable

CIRCLIP

2GU-25866-00-00

Unavailable

CLAMP 1

5KM-81677-00-00

Unavailable

HOSE, RESERVOIR

5LP-25895-00-00

Unavailable

CLIP (7K7)

90467-11044-00

Unavailable

CLIP (5K4)

90467-14057-00

Unavailable

CABLE, BRAKE

5KM-26341-00-00

Unavailable

GROMMET(3AK)

90480-18495-00

Unavailable

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

PIN, COTTER (648)

91490-20015-00

Unavailable

CABLE, CONTROL 2

5KM-2637F-00-00

Unavailable

BRACKET, STOP SWITCH

5KM-21441-00-00

Unavailable

BOLT, FLANGE

95817-06008-00

Unavailable

PROTECTOR

5KM-27491-00-00

Unavailable

BOLT(3KJ)

90109-063F1-00

Unavailable

PROTECTOR

5KM-2117G-10-00

Unavailable

BOLT, FLANGE

95817-06008-00

Unavailable
