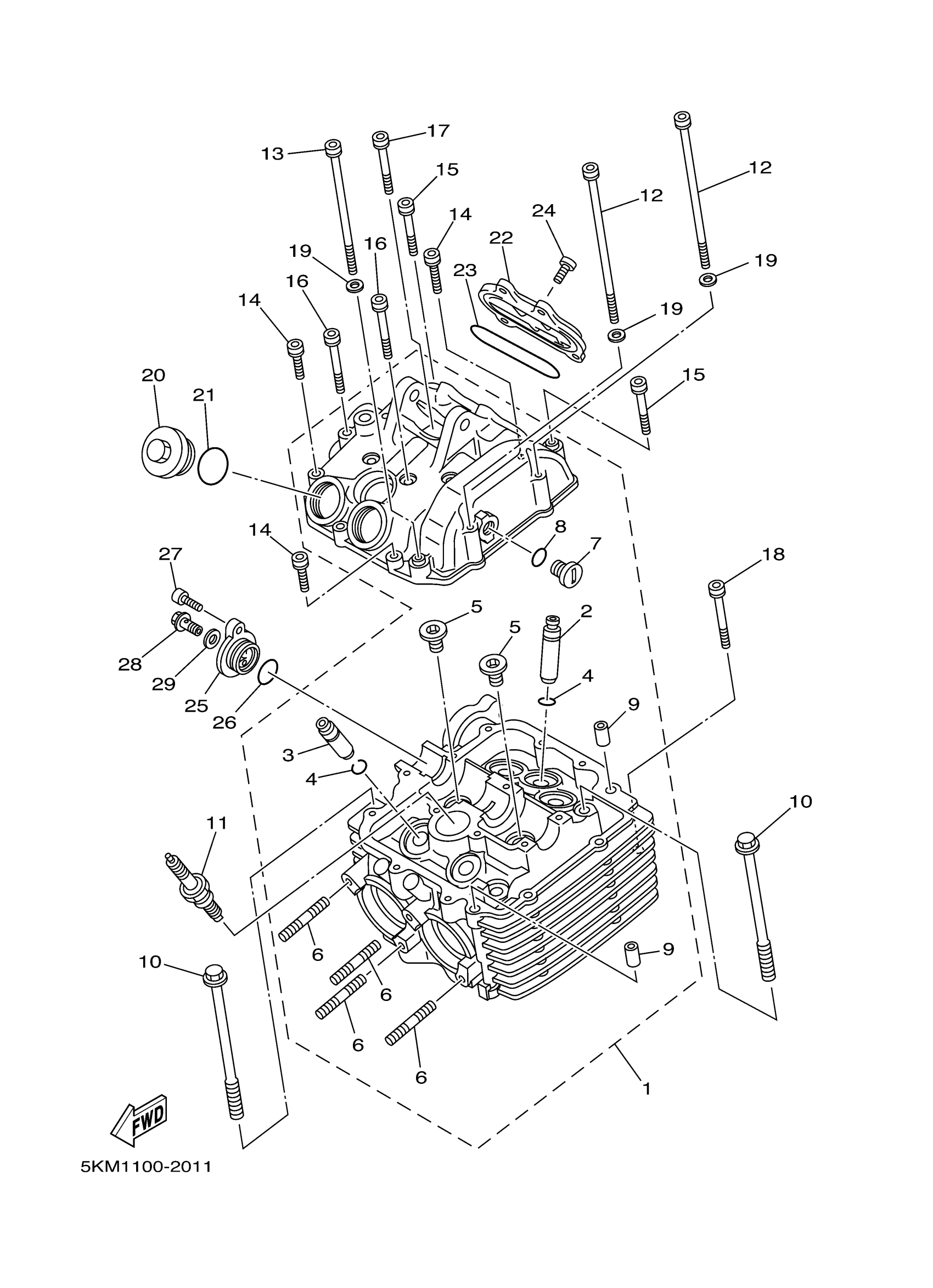

Yamaha YFM660FLES (GRIZZLY 660 AUTO 4X4 WETLANDYFM660FLES) 5KMP 2004 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5KM-11101-01-00

$1,371.99

2

GUIDE, INTAKE VALVE

5KM-11133-10-00

$75.99

3

GUIDE, EXHAUST VALVE

5KM-11134-10-00

$75.99

4

CIRCLIP (4G0)

93440-10085-00

$8.49

5

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

6

BOLT, STUD 3

95617-08625-00

$8.49

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

8

O-RING(36Y)

93210-13657-00

$7.49

9

PIN, DOWEL(2VG)

99530-10116-00

$4.25

10

BOLT, WASHER BASED(3YF)

90105-09648-00

$21.99

11

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

12

BOLT,SOCKET

91317-06130-00

$9.49

13

BOLT,SOCKET

91317-06115-00

Unavailable

14

BOLT,SOCKET

91317-06025-00

$5.60

15

BOLT,SOCKET

91317-06040-00

$3.76

16

BOLT,SOCKET

91317-06055-00

Unavailable

17

BOLT(2NX)

90109-063E9-00

Unavailable

18

BOLT,SOCKET

91317-06050-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

Unavailable

21

O-RING (341)

93210-32172-00

Unavailable

22

COVER, CYLINDER HEAD SIDE 3

3YF-11187-00-00

Unavailable

23

O-RING (2H7)

93210-71360-00

Unavailable

24

BOLT,SOCKET

91317-06018-00

Unavailable

25

CAP, TENSIONER CASE

3TB-12215-01-00

Unavailable

26

O-RING (5Y1)

93210-19522-00

Unavailable

27

BOLT,SOCKET

91317-06020-00

Unavailable

28

BOLT UNION 137131650000

90401-06001-00

Unavailable

29

GASKET (4V2)

90430-06166-00

Unavailable
