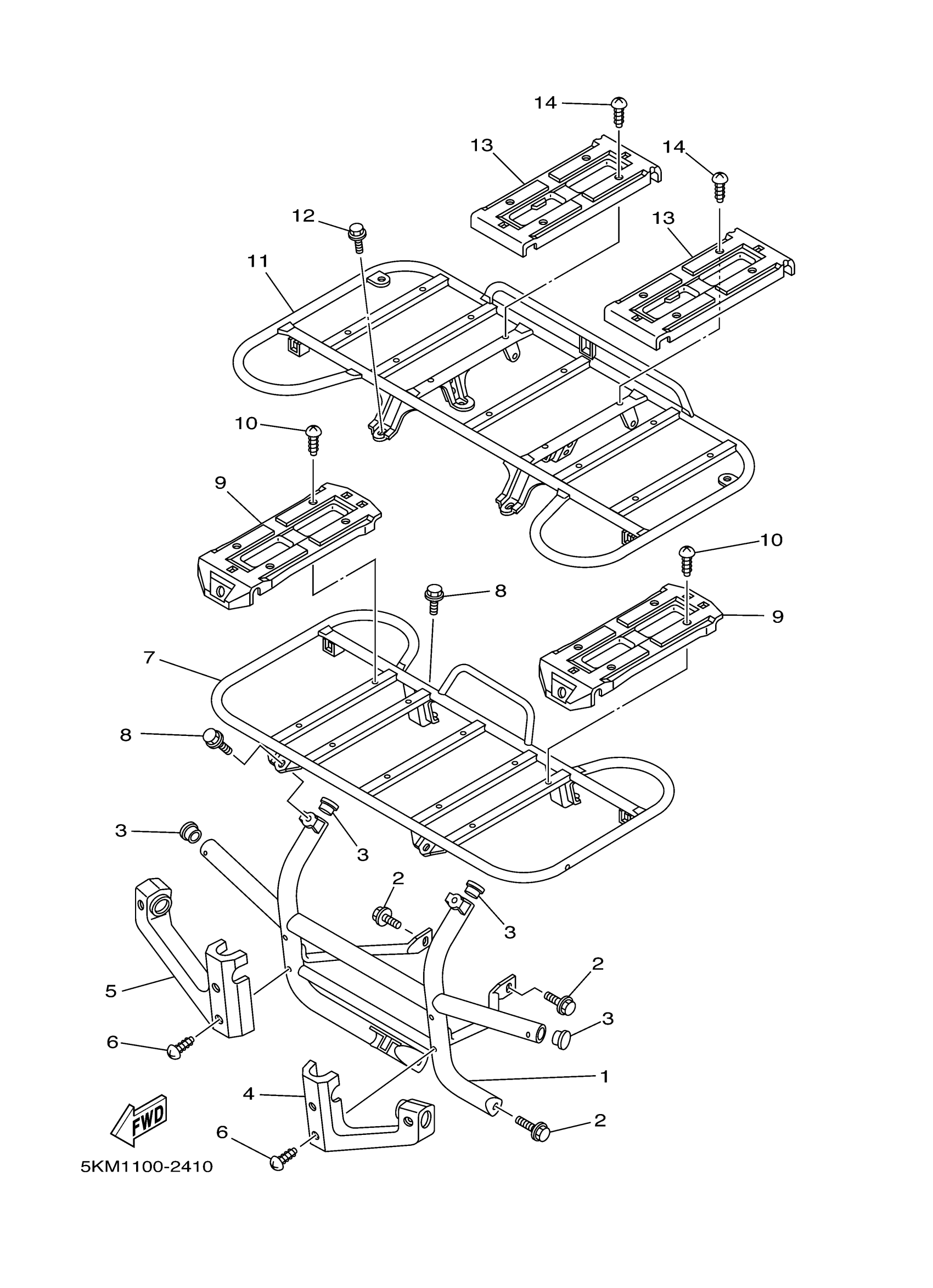

Yamaha YFM660FHRHD (660 GRIZZLY REAL TREE HARDWOOD HUNTER) 5KMG 2003 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

5KM-2845N-10-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

CAP

5KM-2482H-01-00

$7.99

4

COVER 1

5KM-2842M-00-00

Unavailable

5

COVER 2

5KM-2842N-00-00

Unavailable

6

SCREW, TRUSS TAP.

97707-50012-00

$4.63

7

CARRIER, FRONT

5KM-24841-10-00

Unavailable

8

BOLT, FLANGE

95817-08012-00

$5.49

9

COVER 1

5KM-24845-00-00

$51.99

10

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

11

CARRIER, REAR

5KM-24842-20-00

Unavailable

12

BOLT, FLANGE

95817-08014-00

$5.60

13

COVER 2

5KM-24846-00-00

$38.99

14

SCREW, TAPPING(4MV)

97707-50016-00

$2.19
