Description

Price

1

IDLE GEAR ASSY

4WV-15650-02-00

Unavailable

2

WASHER, PLATE(1RE)

90201-125L6-00

$9.49

3

STARTER ASSY

5GT-15710-00-00

Unavailable

4

PAWL, DRIVE

21V-15741-00-00

$23.99

5

SPRING, STARTER

21V-15713-00-00

$25.99

6

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

7

SPRING

21V-15767-00-00

$7.99

8

NUT, FLANGE(7NB)

95780-06500-00

$2.60

9

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

10

HANDLE, STARTER

3X3-15755-00-00

$29.99

11

CAP, KNOB

21V-15779-00-00

$7.99

12

DRUM, SHEAVE

24W-15714-00-00

$57.99

13

. EMBLEM

1UY-15443-00-00

Unavailable

14

PLATE, DRIVE

21V-15716-00-00

$27.99

15

PULLEY, STARTER

1UY-15723-00-00

$126.99

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

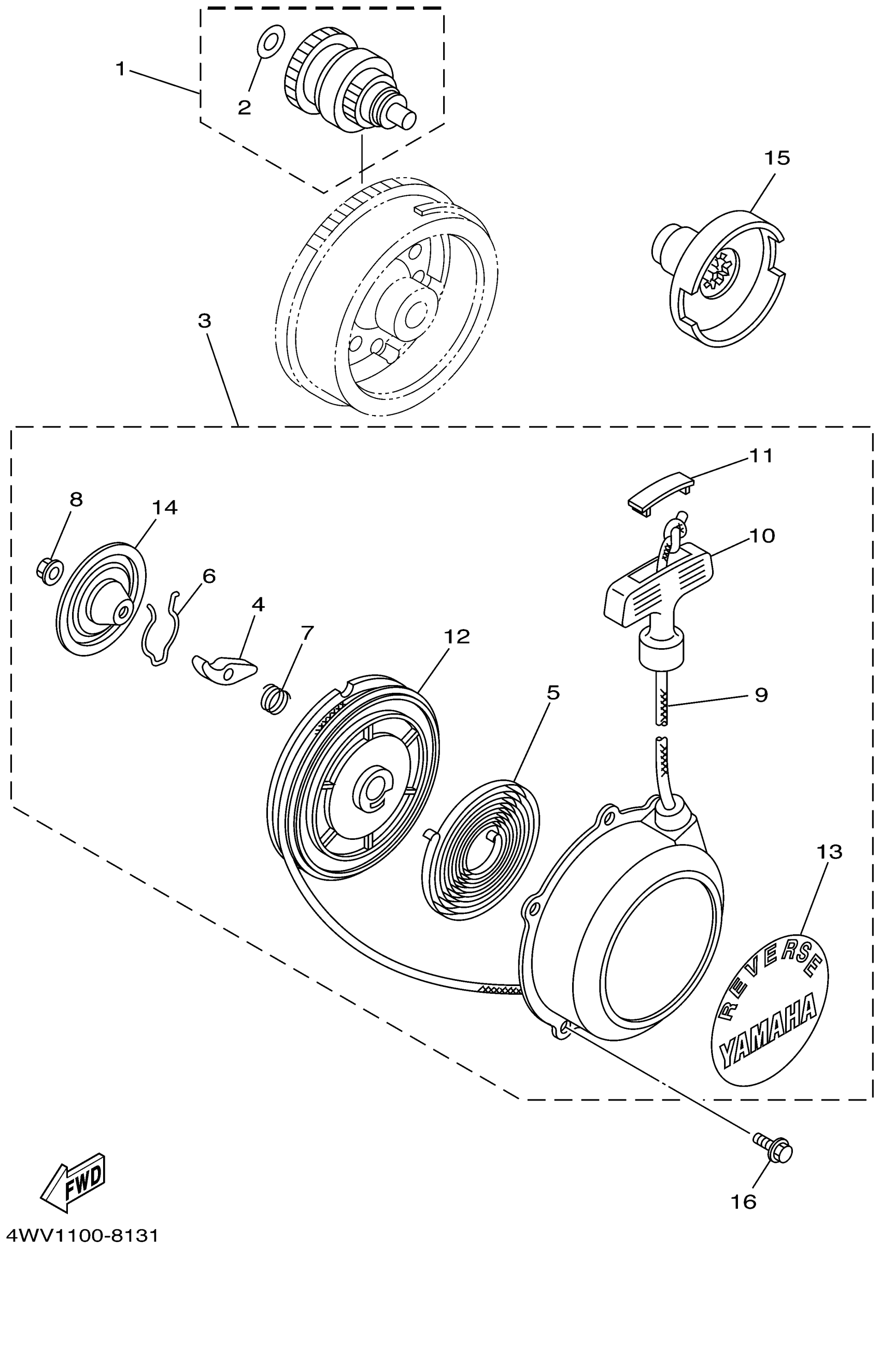

Yamaha YFM600FWALC (GRIZZLY) 5GT2 1999 STARTER Diagram

IDLE GEAR ASSY

WASHER, PLATE(1RE)

STARTER ASSY

PAWL, DRIVE

SPRING, STARTER

SPRING, DRIVE PLATE

SPRING

NUT, FLANGE(7NB)

WIRE, STARTER (BRAIDED)

HANDLE, STARTER

CAP, KNOB

DRUM, SHEAVE

. EMBLEM

PLATE, DRIVE

PULLEY, STARTER

BOLT, FLANGE(4MY)
