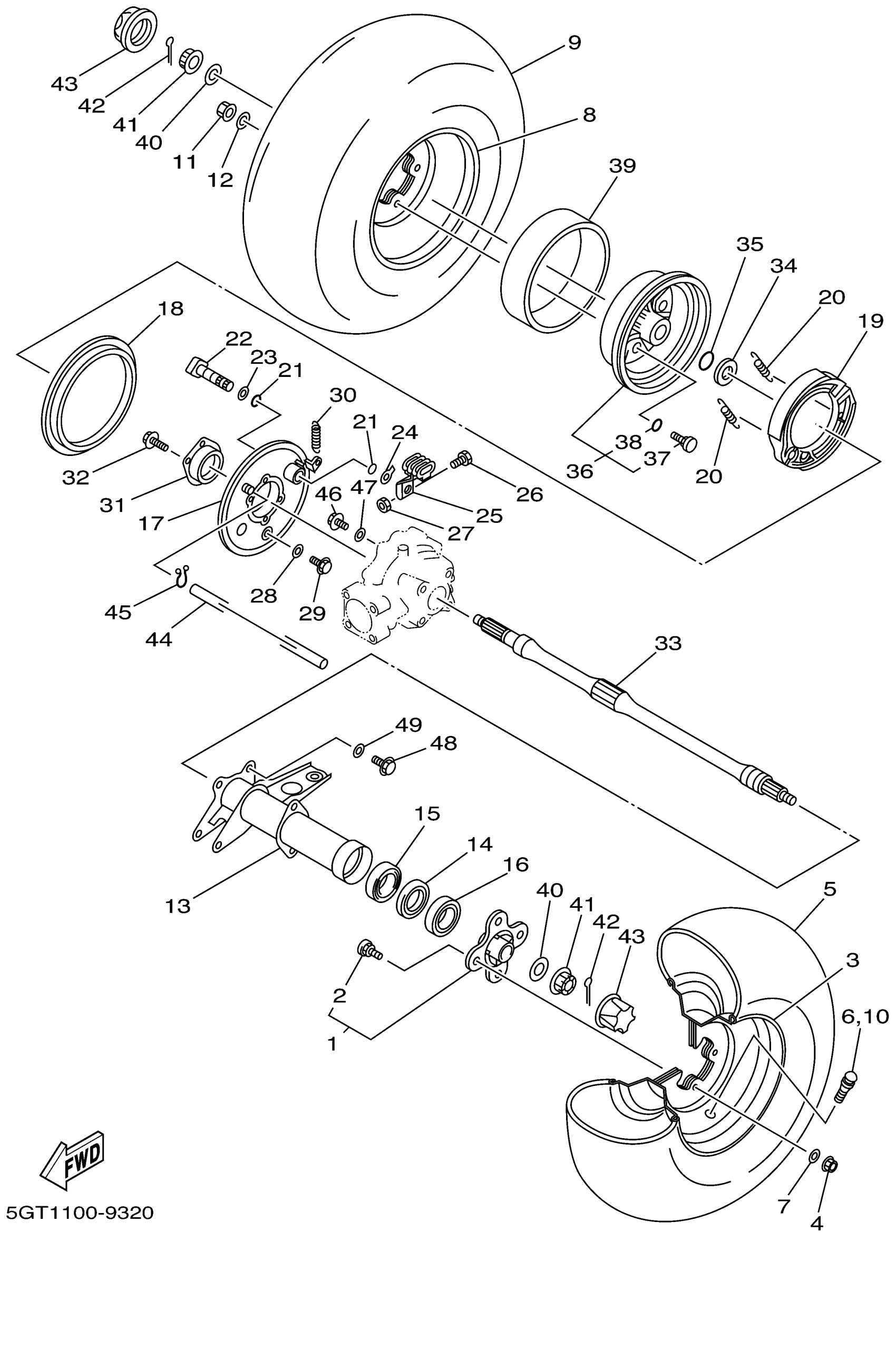

Yamaha YFM600FWALC (GRIZZLY) 5GT2 1999 REAR WHEEL Diagram
#
1
COLLAR, WHEEL
5GT-25383-00-00
Unavailable
2
BOLT, SERRATION
90114-10011-00
Unavailable
3
REAR WHEEL COMP.
5GT-25390-00-00
Unavailable
5
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
8
REAR WHEEL COMP.
5GT-25390-00-00
Unavailable
9
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
13
REAR AXLE HOUSING COMP.
5GT-46540-00-00
Unavailable
14
BEARING
93306-00809-00
Unavailable
16
COVER, HUB DUST
4SH-25367-01-00
Unavailable
17
PLATE, BRAKE SHOE
4SH-25321-00-00
Unavailable
18
SEAL, PLATE DUST
3GH-25129-10-00
Unavailable
19
BRAKE SHOE KIT
4WV-W253E-01-00
Unavailable
20
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
21
O-RING (26H)
93210-14579-00
Unavailable
22
CAMSHAFT
4WV-25351-00-00
Unavailable
23
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
24
PLATE
3Y6-2533A-01-00
Unavailable
25
LEVER, CAMSHAFT
4WV-25355-00-00
Unavailable
26
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
27
NUT(6TA)
95317-06600-00
Unavailable
28
WASHER, PLATE(481)
90201-10118-00
Unavailable
29
BOLT, SMALL FLANGE
95027-10016-00
Unavailable
30
SPRING, TENSION(4GB)
90506-16482-00
Unavailable
31
RETAINER
4GB-46513-00-00
Unavailable
32
BOLT, FLANGE
95817-08040-00
Unavailable
33
AXLE, WHEEL
5GT-25381-10-00
Unavailable
34
COLLAR(2NL)
90387-284T0-00
Unavailable
35
O-RING(22F)
93210-26662-00
Unavailable
36
DRUM, BRAKE
5GT-2531E-00-00
Unavailable
37
BOLT, SERRATION
90114-10003-00
Unavailable
38
O-RING (328)
93210-12131-00
Unavailable
39
RING 2
5GT-25336-00-00
Unavailable
40
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
41
NUT, CASTLE
90171-16001-00
Unavailable
42
PIN, COTTER
91490-30030-00
Unavailable
43
CAP, WHEEL
5GT-2512A-00-00
Unavailable
44
HOSE (L1200)
90445-080K8-00
Unavailable
45
CLIP (16G)
90467-08021-00
Unavailable
46
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
47
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
48
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
49
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
