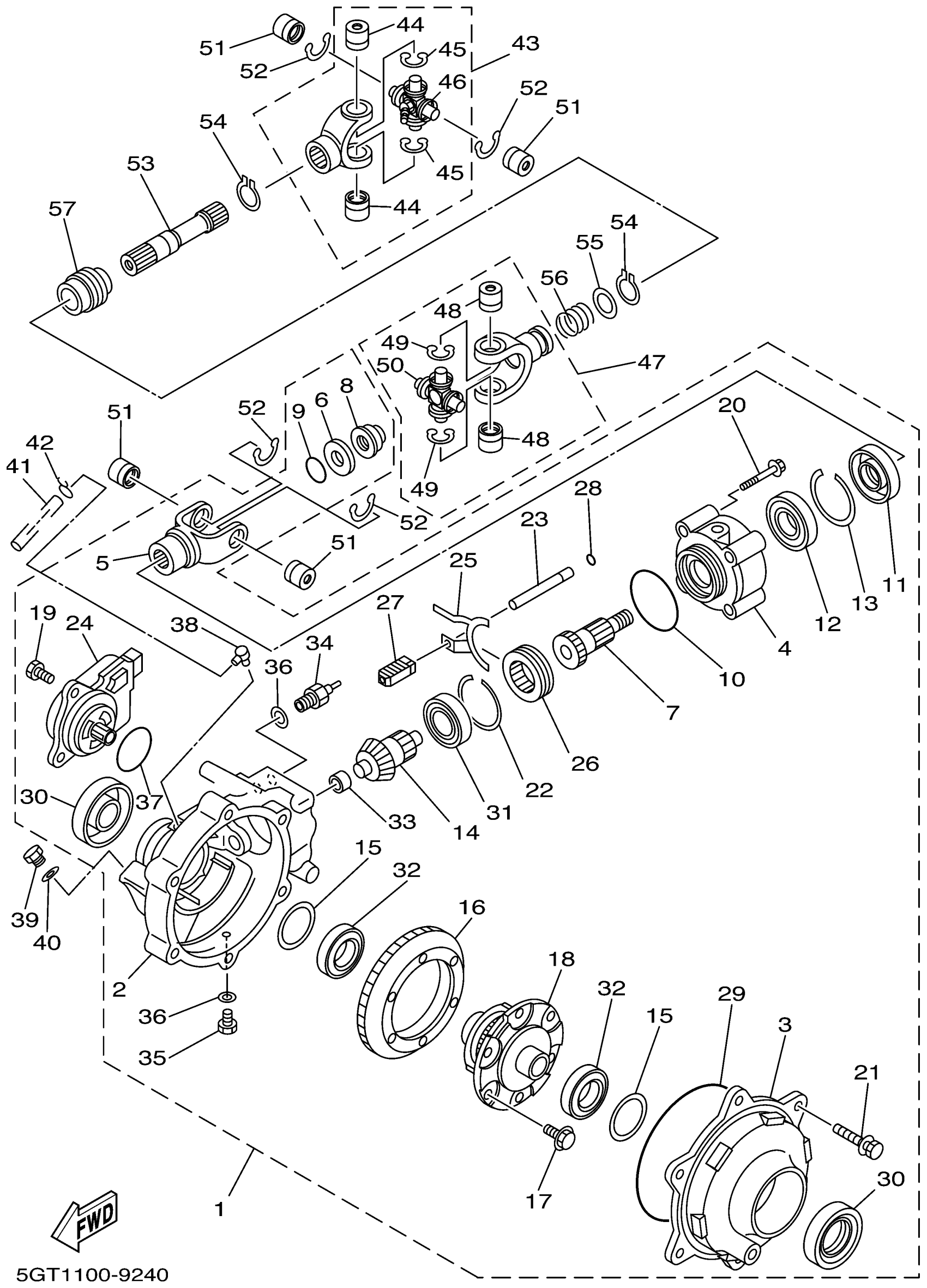

Yamaha YFM600FWALC (GRIZZLY) 5GT2 1999 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE COMP.
5GT-46160-01-00
Unavailable
2
. HOUSING, SHAFT DRIVE 2
4WV-46161-00-00
Unavailable
3
. HOUSING, BEARING 2
4WV-46162-00-00
Unavailable
4
. HOUSING, PINION BEARING
4WV-46144-00-00
Unavailable
5
YOKE, JOINT 2
5GT-46146-00-00
Unavailable
7
. GEAR, DRIVE PINION
5GT-46121-00-00
Unavailable
8
NUT 1
4WV-46145-00-00
Unavailable
11
. SEAL, OIL 1
4WV-46163-00-00
Unavailable
12
. BEARING 1
4WV-46164-00-00
Unavailable
13
. RING, HOLE SNAP 1
4WV-46142-00-00
Unavailable
14
. PINION, DRIVE 2
5GT-46141-00-00
Unavailable
15
SHIM, THRUST
4WV-46119-11-00
Unavailable
15
SHIM, THRUST
4WV-46119-21-00
Unavailable
15
SHIM, THRUST
4WV-46119-31-00
Unavailable
15
SHIM, THRUST
4WV-46119-41-00
Unavailable
15
SHIM, THRUST
4WV-46119-51-00
Unavailable
15
. SHIM, THRUST (15T)
4WV-46119-60-00
Unavailable
15
. SHIM, THRUST (20T)
4WV-46119-70-00
Unavailable
15
. SHIM, THRUST (25T)
4WV-46119-80-00
Unavailable
16
GEAR, RING 2
5GT-46131-00-00
Unavailable
17
BOLT 1
4WV-46155-00-00
Unavailable
18
LIMITED SLIP DIFF. ASSY
5GT-46470-01-00
Unavailable
19
BOLT, SOCKET
91317-08020-00
Unavailable
20
. BOLT 2
4WV-46158-00-00
Unavailable
21
BOLT 3
4WV-46159-00-00
Unavailable
22
RING,HOLE SNAP 2
4WV-46143-00-00
Unavailable
23
. SHAFT, SHIFTER
4WV-18318-00-00
Unavailable
24
SERVO MOTOR COMP
5GH-4616A-02-00
Unavailable
25
. FORK, SHIFT 4
4WV-18514-00-00
Unavailable
26
CLUTCH,DRIVEN
4WV-46441-00-00
Unavailable
27
. SHAFT 2
4WV-18319-00-00
Unavailable
28
. O-RING 1
4WV-46134-00-00
Unavailable
29
. O-RING 2
4WV-46135-00-00
Unavailable
30
OIL SEAL(2HR)
93102-35380-00
Unavailable
31
BEARING 2
4WV-46165-00-00
Unavailable
32
. BEARING 3
4WV-46166-00-00
Unavailable
33
BEARING 4
4WV-46167-00-00
Unavailable
34
NEUTRAL SWITCH ASSY
3GD-82540-11-00
Unavailable
35
. PLUG, DRAIN 1
4WV-46168-00-00
Unavailable
36
GASKET 1
4WV-46132-00-00
Unavailable
37
O-RING
93210-50768-00
Unavailable
38
BREATHER
5UG-15371-00-00
Unavailable
39
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
40
GASKET
214-11198-01-00
Unavailable
41
HOSE (L1050)
90445-072G8-00
Unavailable
42
CLIP (1J7)
90467-07029-00
Unavailable
43
CROSS JOINT COMP. 2
5GT-46107-00-00
Unavailable
44
BEARING
93399-99948-00
Unavailable
45
CIRCLIP (4X7)
93440-20088-00
Unavailable
46
SPIDER
5GT-46187-00-00
Unavailable
47
CROSS JOINT COMP. 3
5FU-46108-00-00
Unavailable
48
BEARING
93399-99948-00
Unavailable
49
CIRCLIP (4X7)
93440-20088-00
Unavailable
50
SPIDER
5GT-46187-00-00
Unavailable
51
BEARING
93399-99948-00
Unavailable
52
CIRCLIP (4X7)
93440-20088-00
Unavailable
53
SHAFT, DRIVE 2
5GT-46173-00-00
Unavailable
54
CIRCLIP(1EY)
99009-19400-00
Unavailable
55
WASHER PLATE 132172160000
90201-20266-00
Unavailable
56
SPRING, COMPRESSION
90501-235L9-00
Unavailable
57
SEAL 1
5GT-46136-00-00
Unavailable
